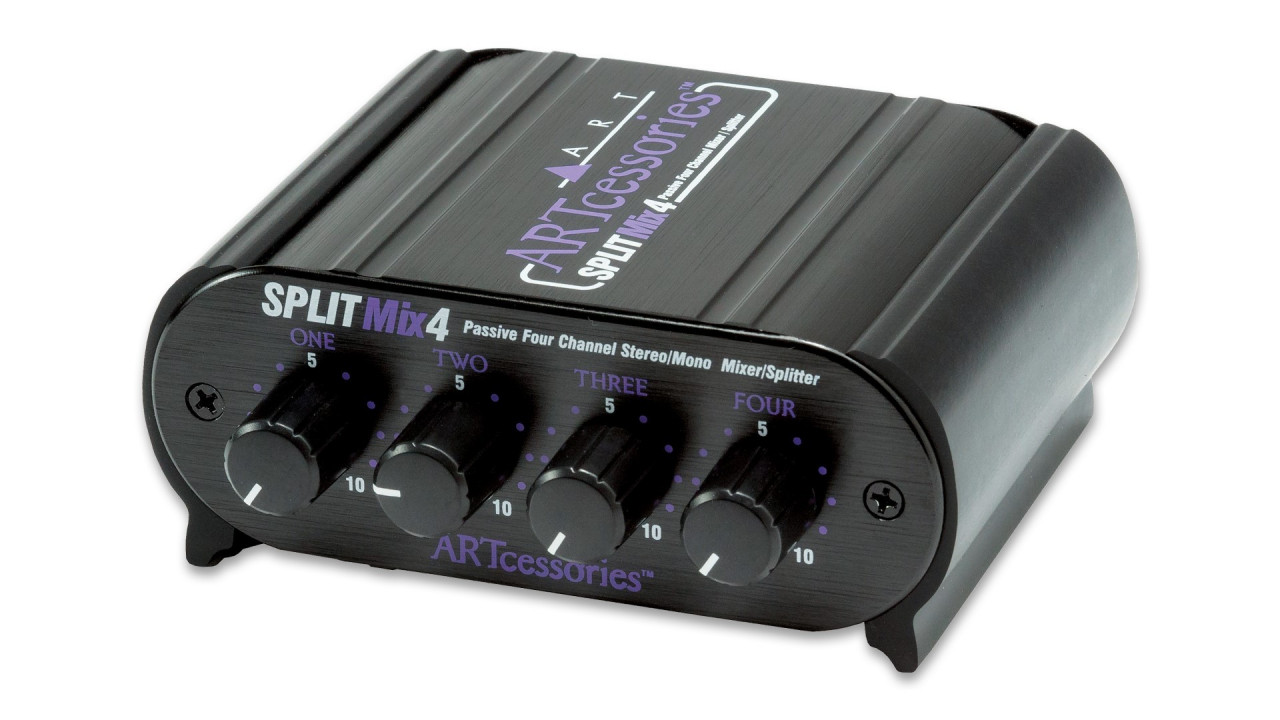

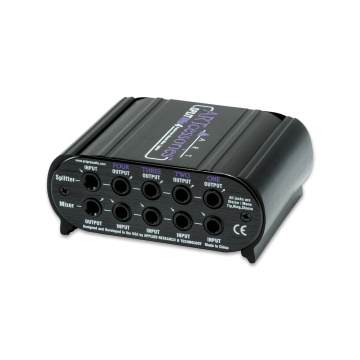

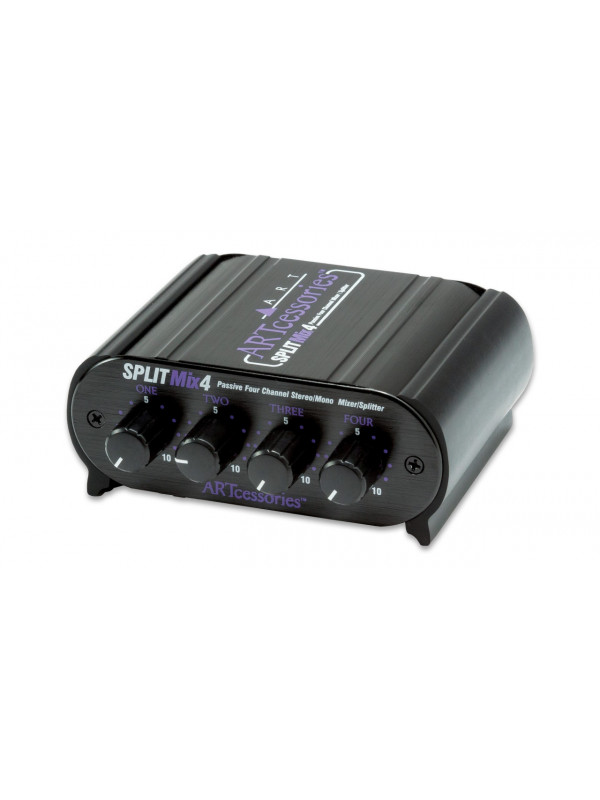

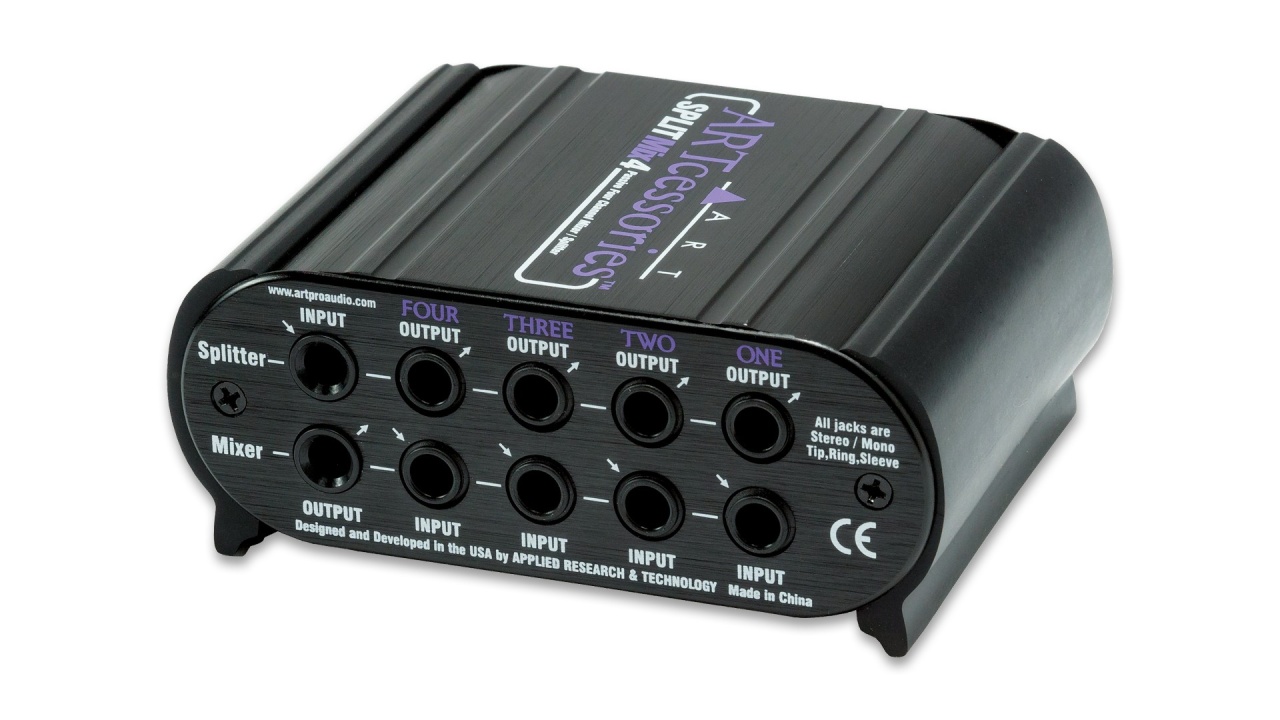

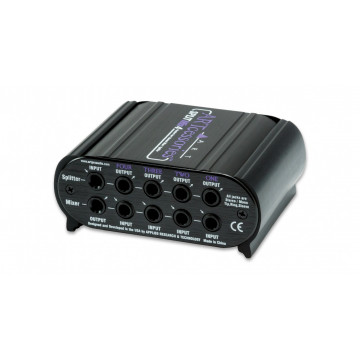

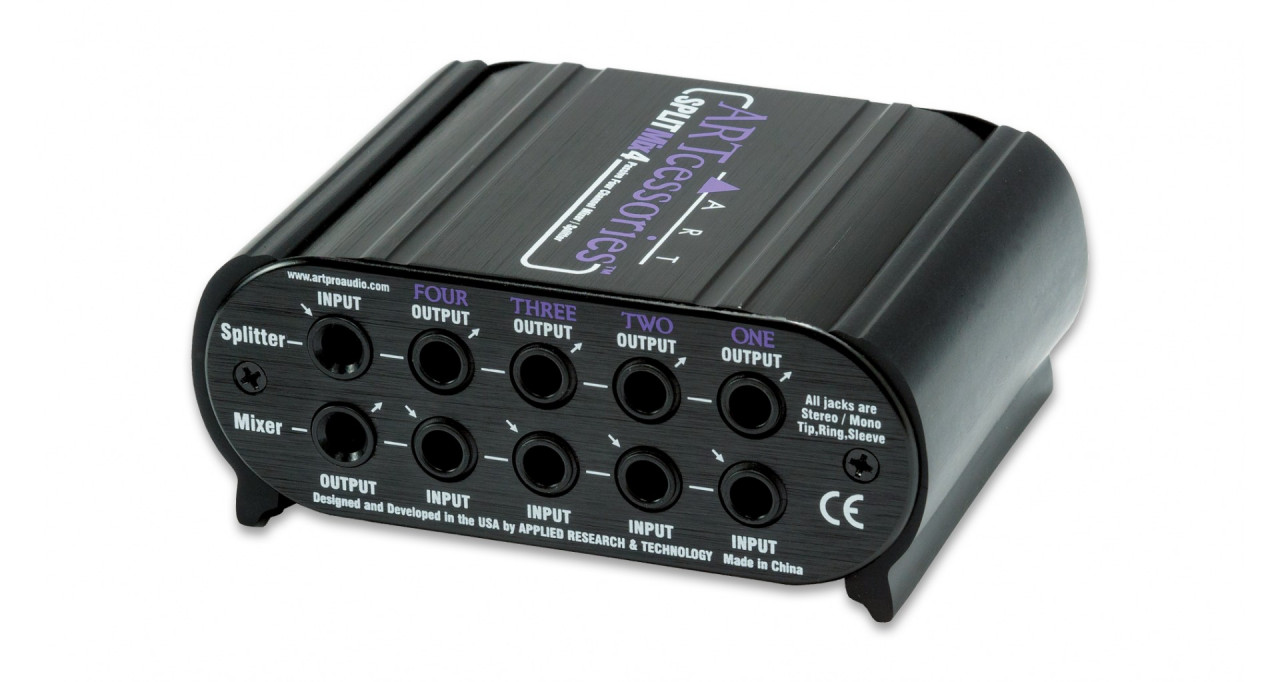

ART SPLITMix4 - Splitter pasiv de semnal

Descriere

Specificatii:

Frequency Response 20Hz &ndash. 20kHz, +/-1dB
Total Harmonic Distortion <.0.005% @ 1kHz (typical)
Phase Shift <.10 degrees @ 20kHz
Input Impedance 25k -100k &Omega.
Ouput Impedance 1k &ndash. 4k &Omega.
Insertion Loss 12dB (typical)
Connectors 1/4-inch TRS stereo
Maximum Attenuation >. 90dB (typical)
Channel Isolation >. 90dB (typical)
Power Requirements Fully Passive
Dimensions 1.85&Prime. x 4.6&Prime. x 4.1&Prime. (47mm x 117mm x 104mm)
Weight 0.84 lbs (0.38 kg)
