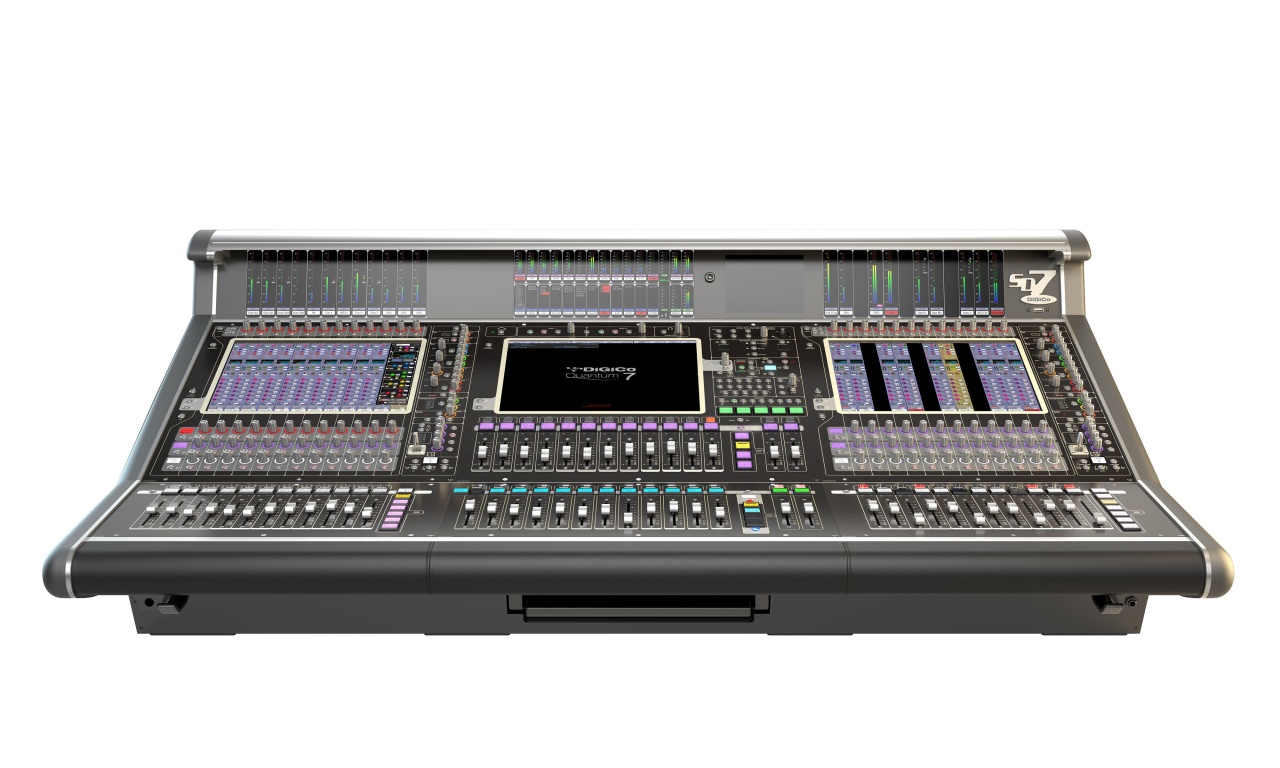

DiGiCo Quantum 7 - Consola digitala de mixaj audio

Descriere

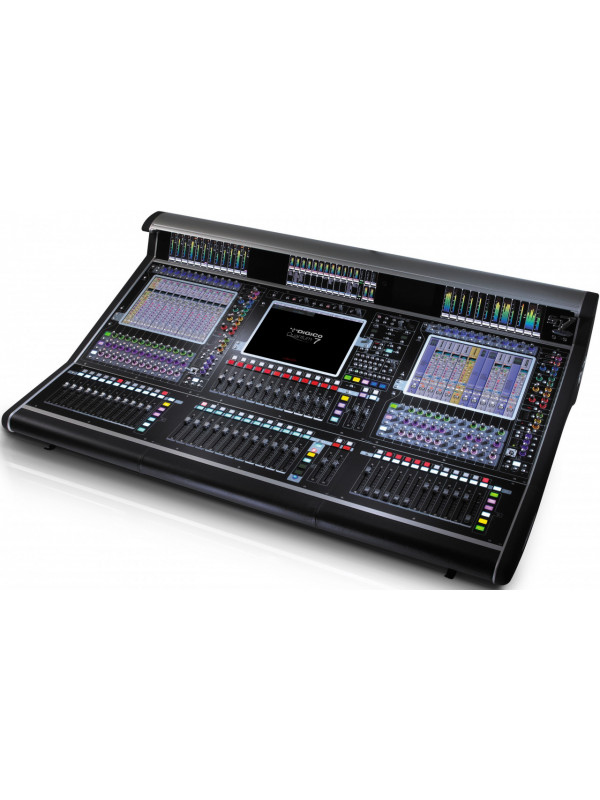

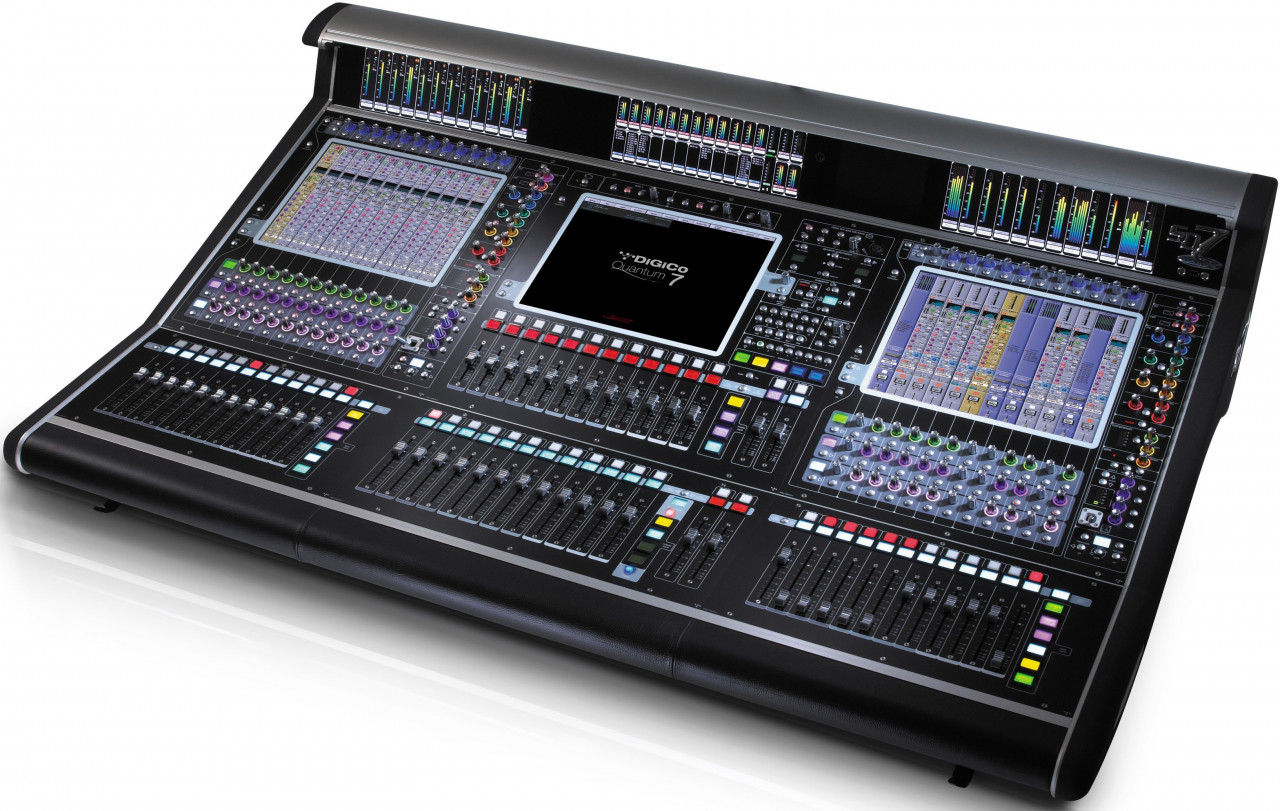

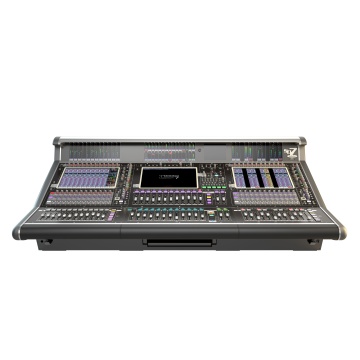

DiGiCo Quantum 7 este o consola de mixaj, dual motor, cu 256 de canale, 52 fadere fizice si un LCD touch-screen de 3 x 15 " de rezolutie inalta.

Caracteristici esentiale:

• 256 canale de intrare cu procesare completa
• 128 buss-rui Aux/Subgrup cu procesare completa
• Matrice 48 x 48 cu procesare completa
• 64 Insertable Mustard processing strips
• 256 Instante de procesare nodale
• Functia True Solo
• Assignable channel layout
• Comenzi macro programabile pentru utilizatori
• Dual redundant engines
• Capabil mirroring cu pana la 2 x EX-007 Quantum, fiecare adaugand 2 sectiuni suplimentare pentru spatiu de lucru.
• Redundant hot-swappable PSUs as standard
• Snapshots for seamlessly changing many parameters at once
• 2 sloturi DMI pe motor pentru a extinde I / O
• UB MADI integrat per motor
• Software offline
• Controlul iPad-ului
• Optiunea software pentru teatru
• Optiunea de broadcast a software-ului

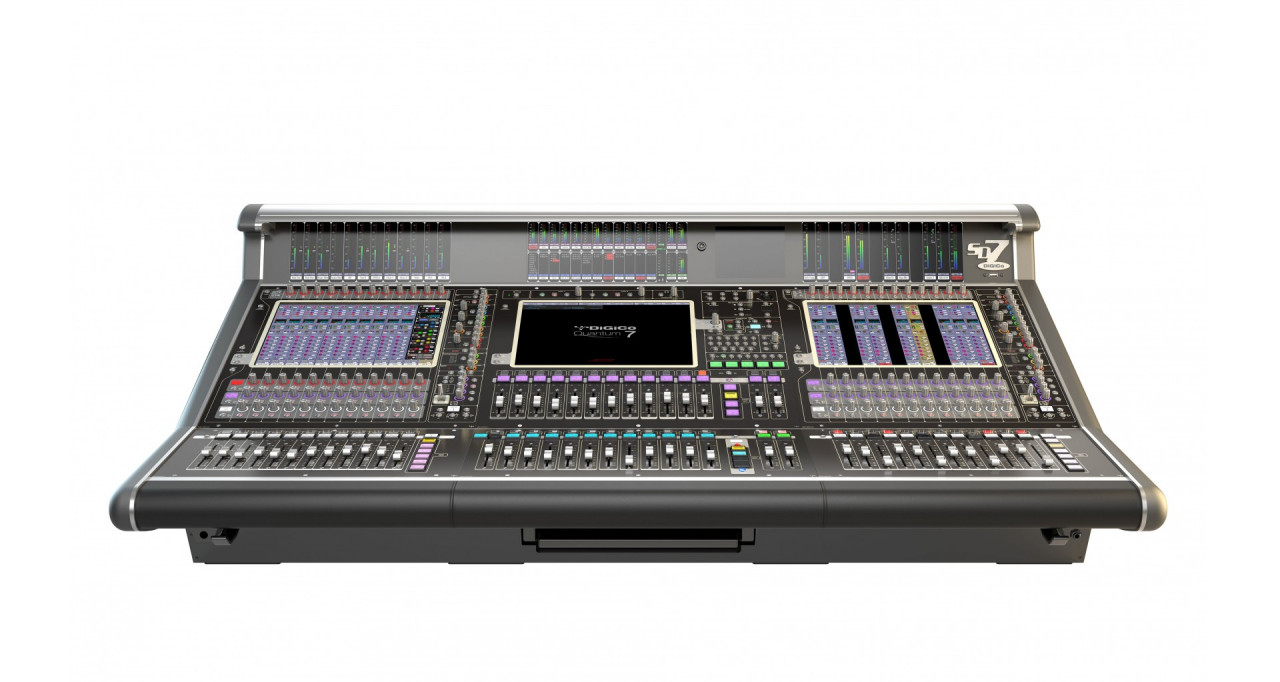

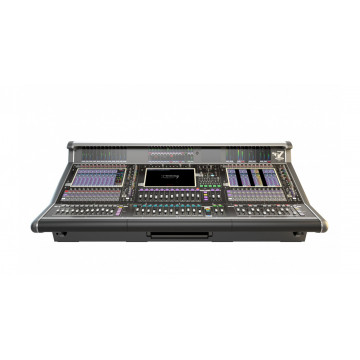

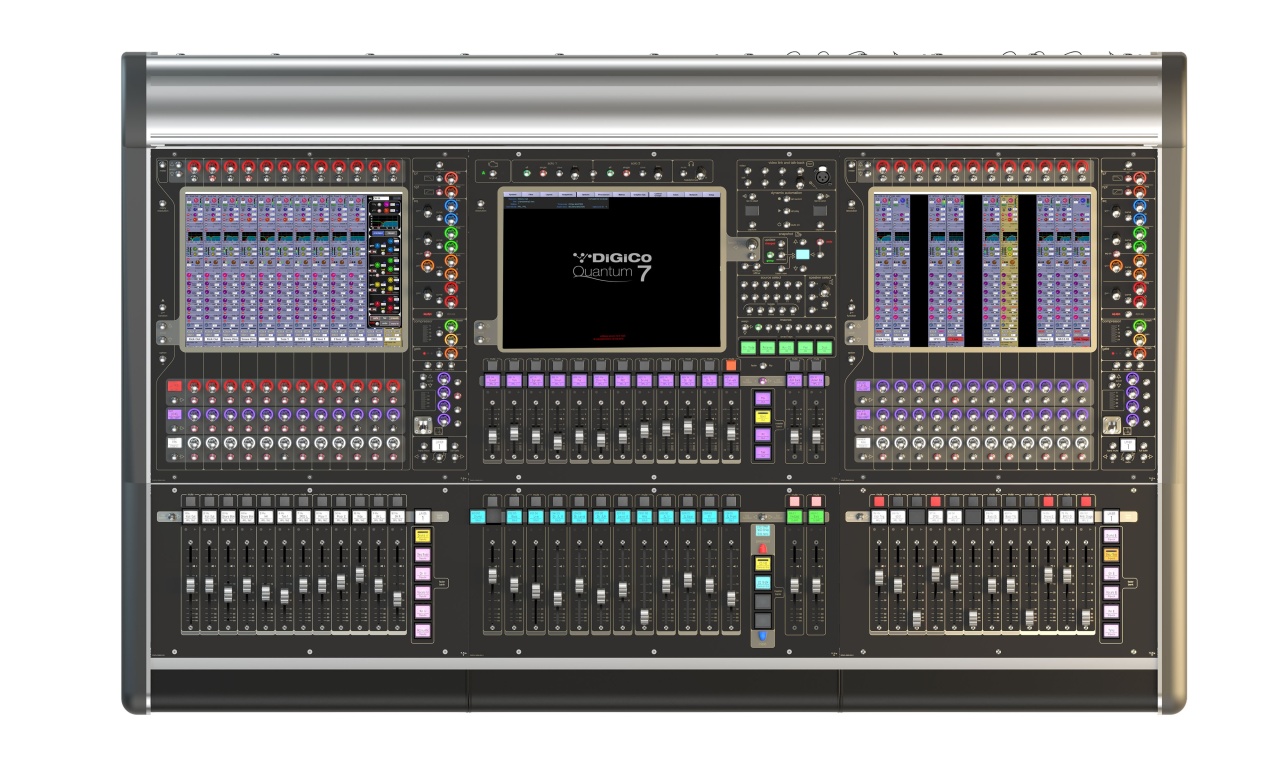

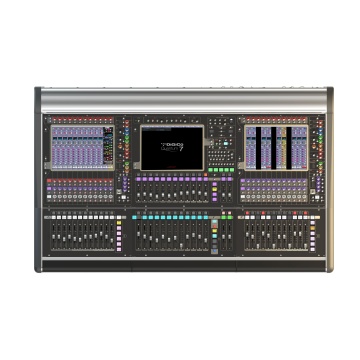

Suprafata de lucru:

• 38 x 100mm touch-sensitive, motorised faders
• 14 x 60mm touch-sensitive, motorised faders
• 3 x 15&rdquo. LCD high-resolution touchscreens
• 3 x Custom mounted LCD high-resolution TFT-LCD
• Meterbridge screens
• 2 x ¼.&rdquo. Headphone sockets
• 1 x USB 2.0 slot
• Integrated Light Bar
• 1 x 6.5&rdquo. Meterbridge screen
• 1 x Meterbridge camera
• 1 x XLR Talkback input

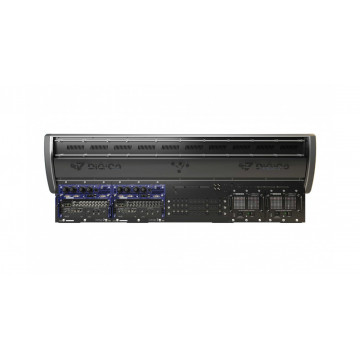

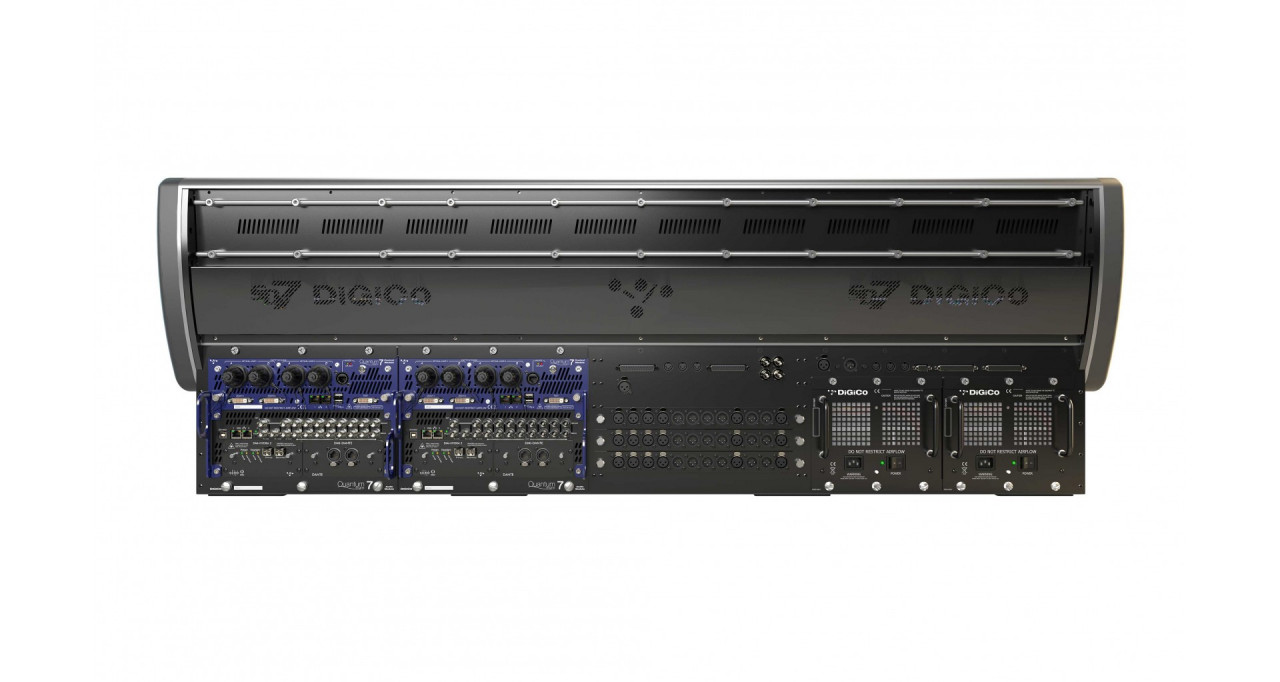

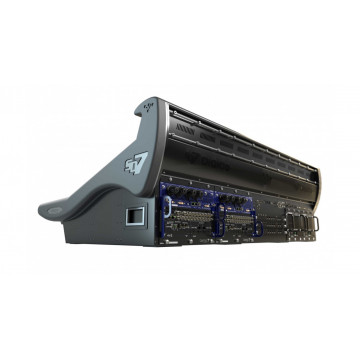

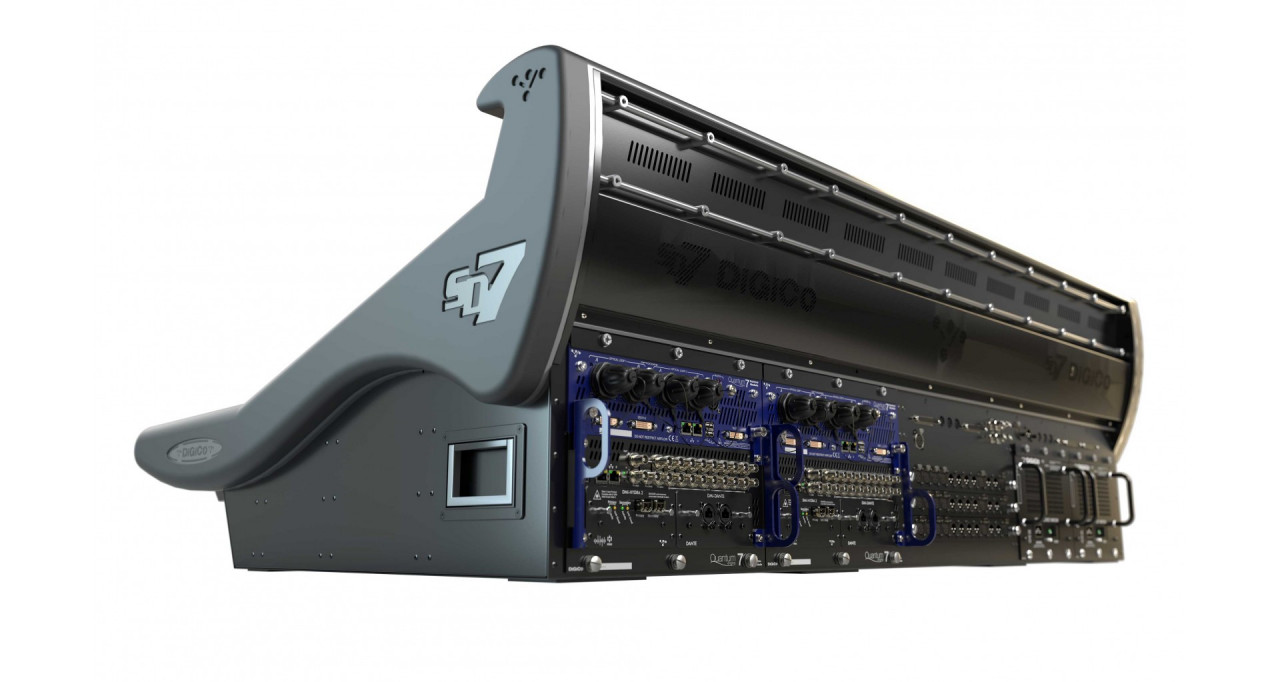

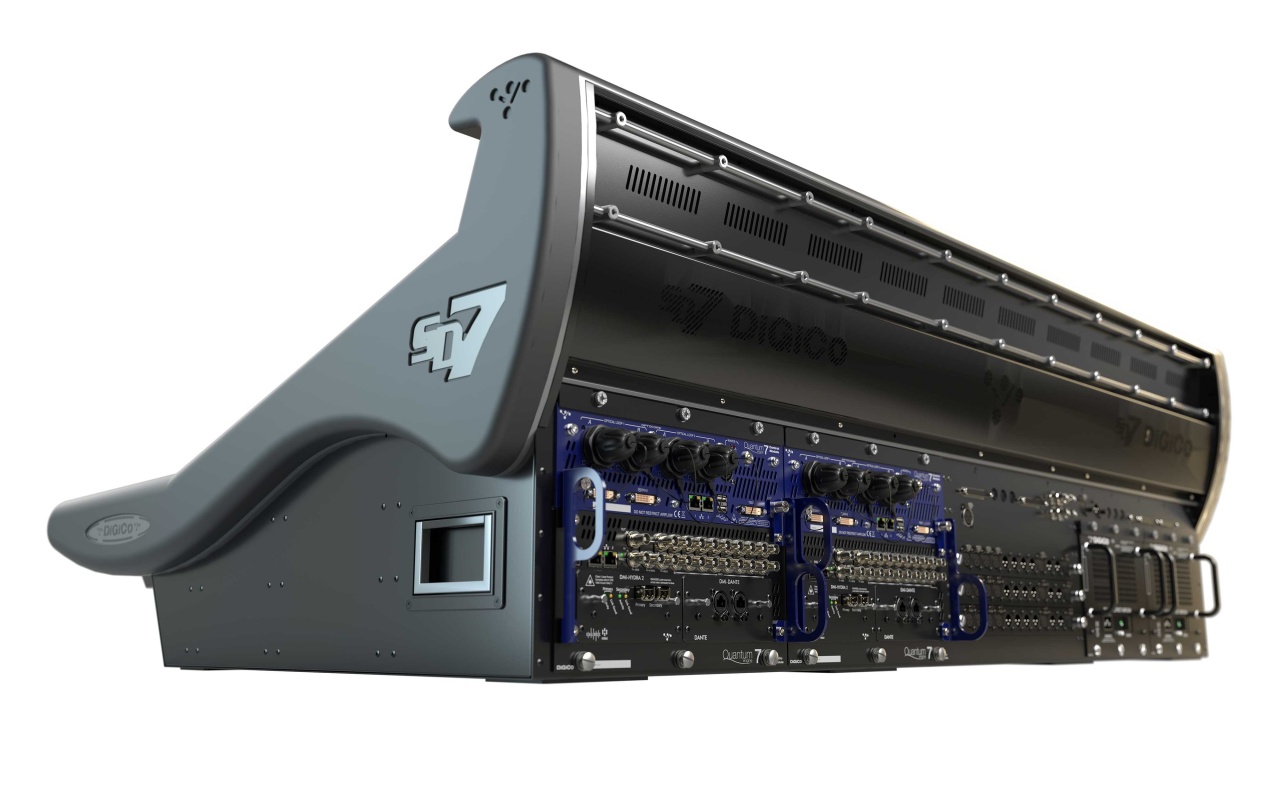

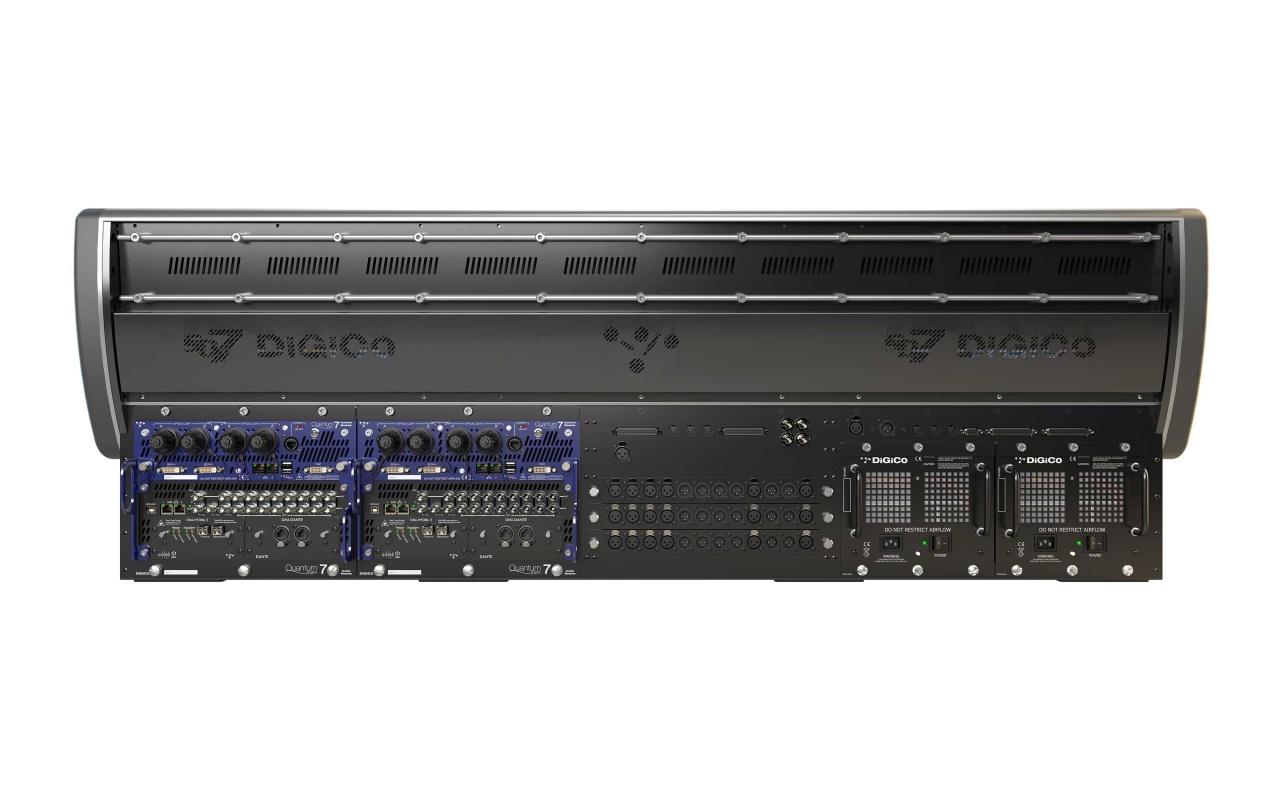

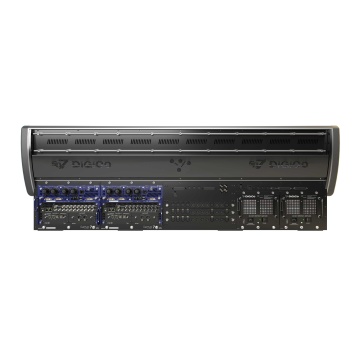

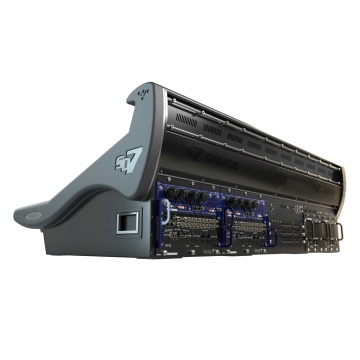

In spate:

• 2 x Redundant, hot-swappable PSUs
• 12 x XLR Mic/Line Inputs
• 12 x XLR Line Outputs
• 6 x XLR AES/EBU Inputs (12 x channels)
• 6 x XLR AES/EBU Outputs (12 x channels)
• 1 x GPI DSub37 (16 inputs) expandable to 32
• 1 x GPO DSub37 (16 outputs) expandable to 32
• 1 x MIDI In/Thru/Out (5 pin DIN) expandable to 2 sets
• 2 x Video BNC I/O
• 1 x RS422 port (9 pin)
• 1 x SMPTE I/O (XLR) plus level control
• 1 x XLR Talkback input

Per motor:

• 1 x MultiMode Optocore Interface (expandable to 2)
• 1 x Waves port as standard
• 2 x DMI Slots (up to 64 I/O per slot)
• 4 x Ethernet ports (switched together)
• 8 x MADI BNC I/O @ 48k, 4 interfaces at 96k
• 1 x UB MADI (USB Type B Audio I/O interface for recording
• and playback of up to 48 channels)
• 2 x USB 2.0 slots
• 1 x Word Clock I/O BNC
• 2 x DVI ports (DVI-D output)
• 1 x AES/EBU Sync I/O
• 1 x Video Sync BNC

Optiuni:

• Upgrade to Dual Loop Optocore (HMA, OpticalCon or ST)
• Upgrade to SingleMode Optocore
• GPIO/MIDI Expansion
• Script Tray
• Theatre Software
• Broadcast Software
• Flightcase
• EX-007 Quantum Fader Expander
• Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /
• Dante / Dante64@96 / Hydra 2 / KLANG / MADI B / MADI C/ ME / Mic / Waves

Procesare semnal:

256 Input Channels (Mono)

• Main & Alternative input
• Analogue Gain
• Phase Inversion Control
• Gain Tracking
• Digital Trim (-40dB to +40dB)
• Variable Delay (0ms to 1.3s)
• DiGiTube
• HPF/LPF (-24dB/Oct)
• 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
• EQ/Dyn Order Control
• 2 Insert Points per Channel
• Channel Mute & Hard Mute
• Channel Direct Outputs

128 Aux/Sub-Group Busses

• Phase Inversion Control
• Digital Trim (-40dB to +40dB)
• Variable Delay (0ms to 1.3s)
• DiGiTube
• Merge Input
• Tone Generator
• HPF/LPF (-24dB/Oct)
• 8 Band EQ: 4 Band Parametric EQ and 4 Band
• Parametric or Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor EQ/Dyn Order Control 2 Insert Points per Channel
• Channel Mute & Hard Mute
• 1 LR/LCR/LCRS/5.1 Master Buss (with full processing)
• 48 input x 48 output Full Processing Matrix
• 36 Control Groups (CGs)
• 2 Solo Busses
• 48 x 32-band GEQs
• 48 x Internal Stereo FX Processors
• Delays
• Audio Enhancer
• Choruses
• Pitch Shifters Reverbs
• 16 x Internal Spice Rack Slots
• 6 band Dynamic Multiband Compressor/Expander
• 64 x Mustard Processing Strips
• Tube
• Tube Emulation
• HPF/LPF (-24dB/Oct)
• 4 Band EQ: 2 Band Parametric EQ and 2 Band
• Parametric EQ or All Pass Filters DYN 1: Classic RMS/Peak Compressor, Vintage VCA
• Compressor, Optical Compressor, FET Limiter DYN 2: Gate, Ducker
• 256 x Nodal Processing
• 4 Band Parametric EQ / Dynamic EQ
• DYN 1: Compressor, Multiband Compressor, Desser
• DYN 2: Gate, Duck, External Input Compressor
• DiGiTuBes available on every channel and Buss
• Dynamic EQs available on every channel, Buss and Nodal
• Processor
• Multiband Compressors available on every channel, Buss
• and Nodal Processor
• True Solo function
• Virtual Soundcheck

Specificatii audio:

• Sample Rate: 48kHz or 96kHz
• Processing Delay: 2ms Typical @ 48k (253 channels, Stage
• Input Through L-R Buss to Stage Output) 1.1ms @ 96k
• Internal Processing: Up to 40-bit, Floating Point
• A>.D & D>.A: 24-bit Converter Bit Depth
• Frequency Response: +/- 0.6dB (20Hz &ndash. 20kHz)
• THD: <.0.05% @ Unity Gain,: 10dB Input @ 1kHz
• Channel Separation: Better Than 90dB: (40Hz-15kHz)
• Residual Output Noise: <.90dBu Typical (20Hz - 20kHz)
• Microphone Input: Better Than -126dB: Equivalent Noise
• Maximum Output Level: +22dBu
• Maximum Input Level: +22dBu

Caracteristici fizice:

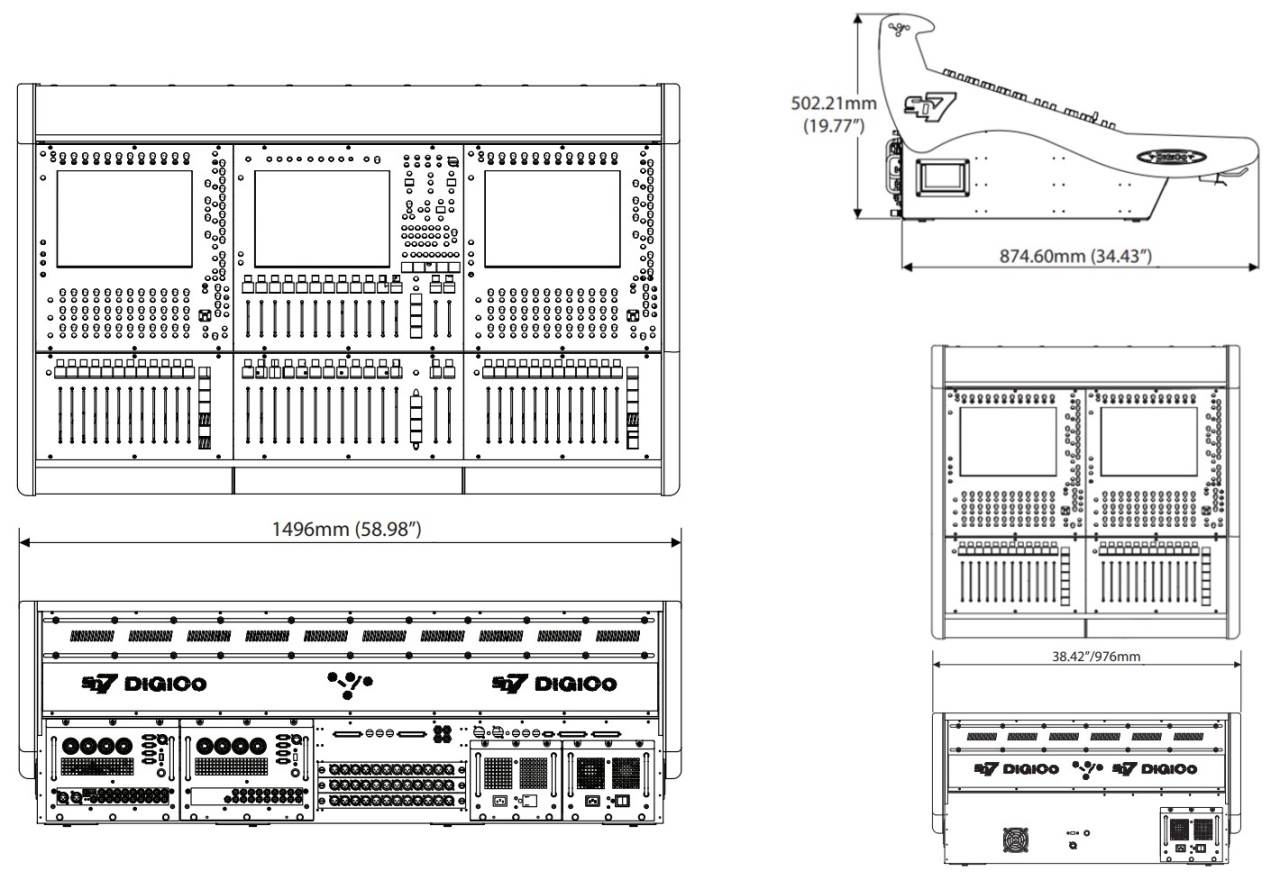

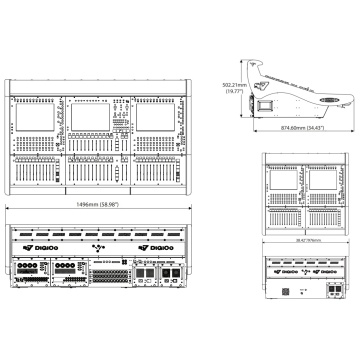

• Dimensiuni: 1496mm (w) x 875mm (d) x 503mm (h)
• Greutate: 112kg (250kg with optional flightcase)
• Flightcase: 1600mm (w) x 600mm (d) x 1240mm (h) (Optional)
• Alimentare: 90-260V, 50-60Hz, 600VA
• Redundancy: Internal removable engines x 2 and internal hot-swappable PSUs x 2
• Product Code: X-SD7-WSQ7-OP (HMA optics)
