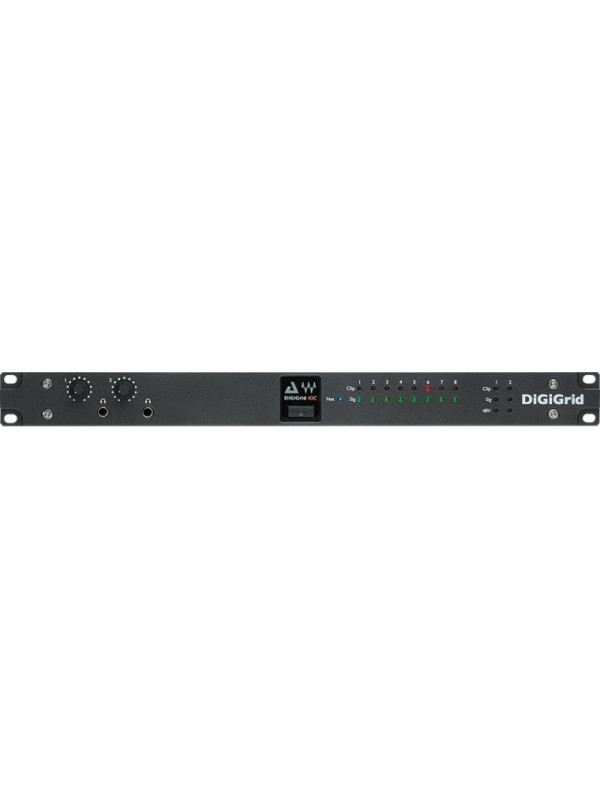

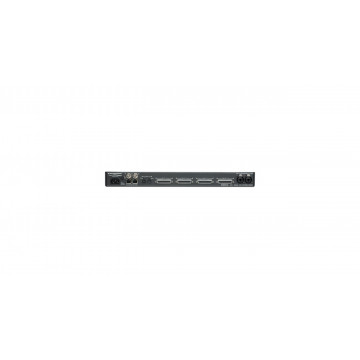

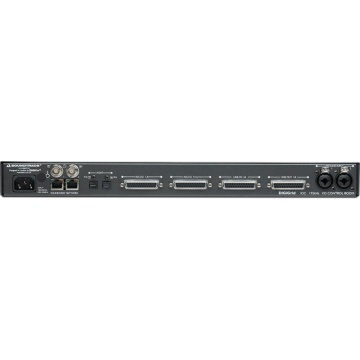

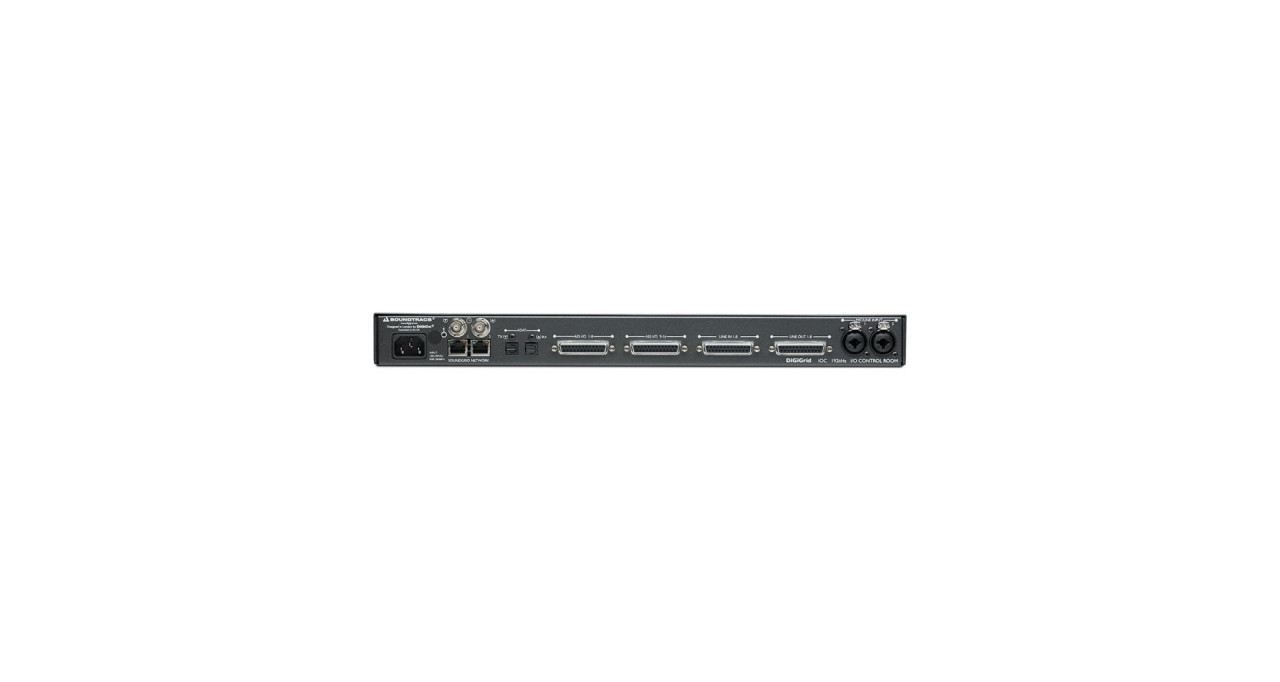

DiGiGrid IOC - Interfata Audio Ethernet

Descriere

Digigrid IOC este o interfata audio proiectata, avand camera de control in minte. Digigrid IOC dispune de o varietate de optiuni de conectivitate: 2 intrari Mic/ Line ce dispun de preamplificatoare ultra performante, 8 intrari/iesiri Line, 1 intrare si iesire ADAT plus 2 iesiri de casti. Specificatii
General
8x intrari de linie (25-pin DB25)
8x iesiri de linie (25-pin DB25)
16x AES/EBU I/O (25-pin DB25)
1x ADAT I/O (8 canale @ 48kHz). (4 canale @ 96 kHz si 2 canale @ 192 kHz vor fi disponibile in viitor)
2x intrari Mic (XLR/TRS combo)
2x porturi SoundGrid RJ45 Ethernet
1x Word clock I/O
1x intrare AC
2x iesiri de casti cu knoburi analog
1U rack montat
Sample rates: 44.1, 48, 88.2 asi 96 kHz (176.4 si 192 kHz vor fi disponibile in viitor)
Sincronizare Clock via Word Clock intrare, AES/EBU, SoundGrid (SoE), Internal
Reset switch

Inputs

Impedanta intrare microfon: 2K5 Ohms
Phantom power: 48V
Impedanta intrare linie: 8K0 Ohms
Gain microfon: 0 dB - +52.5 dB in 7.5-dB trepte.Controlul fin ofera aditional 0dB pana la 7dB in 0.5-dB trepte
Level intrare maximum microfon: +26dB
Level intrare maximum linie: +36dB
Zgomot echivalent pentru intrareul de microfon: >.-126dB (150 Ohm source, Gain +59.5dB)
Raspuns frecvente: +/-0.5dB 20Hz - 20kHz
Separare canale: Mai bine de 90dB (40Hz pana la 15kHz)

Analog Outputs

Level Output Maxim: +22 dBu
Zgomot: <.90 dB (20 Hz to 20 kHz)
Raspuns frecvente: +/-0.5 dB (20 Hz - 20 kHz)
Impedanta output: 50 Ohms
Channel Separation: Better than 90 dB (40 Hz to 15 kHz)
Dstorsiune armonica: De obicei <. 0.01% @ unity gain, -10dB intrare @ 1 kHz
