Elation CUEPIX 16IP DTW - LED
Descriere

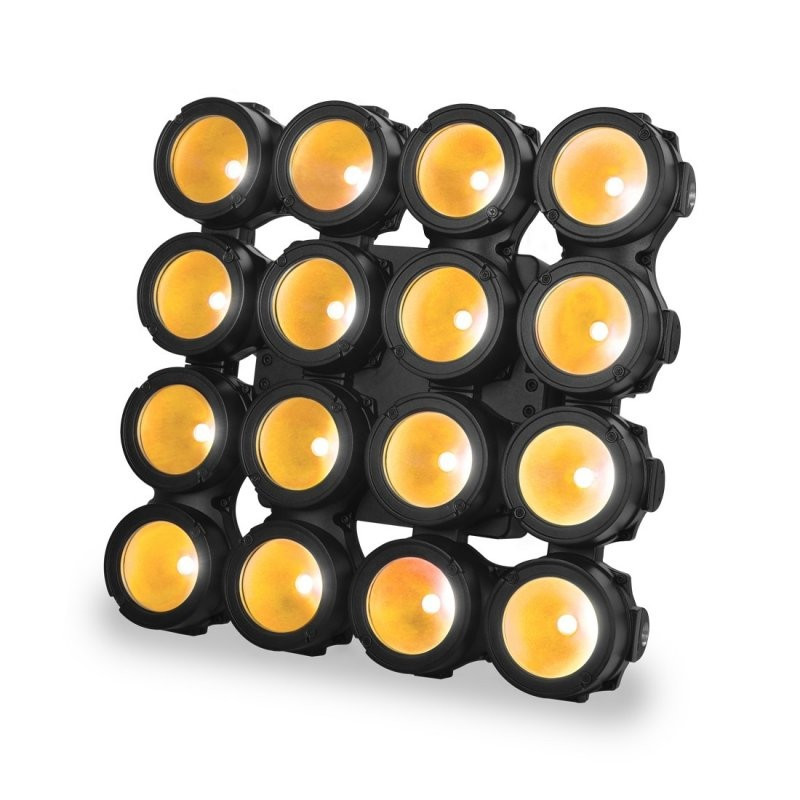

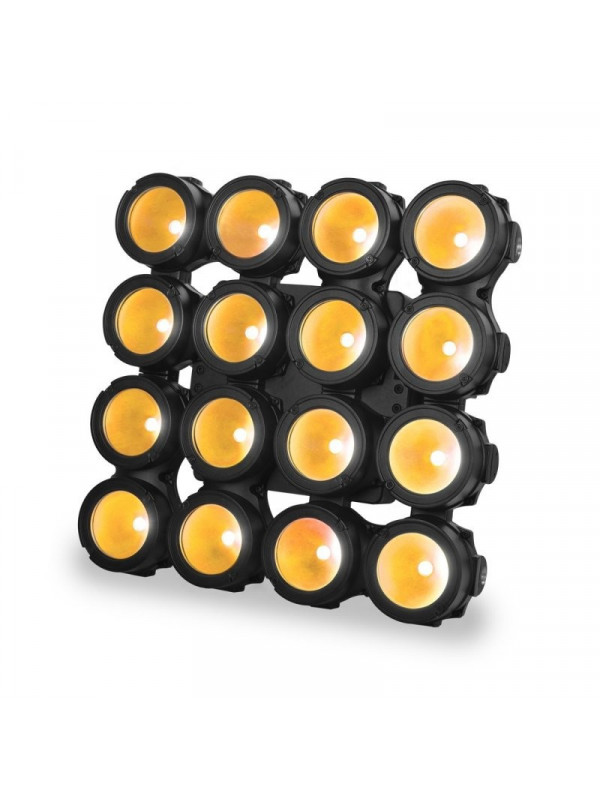

CUEPIX 16IP DTW este un panou matrice LED 4x4 x 40W.
FEATURES
4x4 Matrix Array
16x 40W COB Dim to Warm LED
IP65 Convection Cooled
Full Pixel Control
SOURCE
16 40W 4-IN-1 DTW COB LEDs
50,000 Hour Average LED Life*
EFFECTS
Full Pixel Control with Pixel Flip Modes
High Speed Electronic Shutter and Strobe
16Bit Dimming and Variable Dimming Curve Modes
COLOR
DTW
CONTROL / CONNECTIONS
7 DMX Channel Modes
Adjustable Refresh Rate (900-25,000 (Hz)
4 Button OLED Menu Control Display
DMX, RDM, Kling-Net, and Art-Net Protocol Support
IP65 5pin DMX, RJ45 Ethernet In/Out
IP65 Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.3&rdquo. (440mm)
Width: 8.1&rdquo. (206mm)
Vertical Height: 17.3&rdquo. (440mm)
Weight: 37.9 lbs. (17.2 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
430W Max Power Consumption
14grF to 113grF (-10grC to 45grC)
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
