Sennheiser A 5000-CP - Antena pasiva UHF polarizată circulara

Descriere

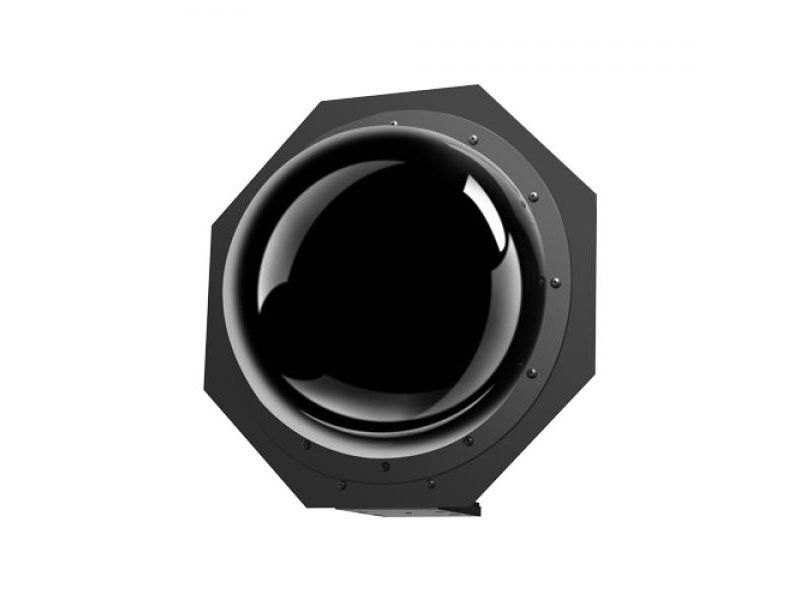

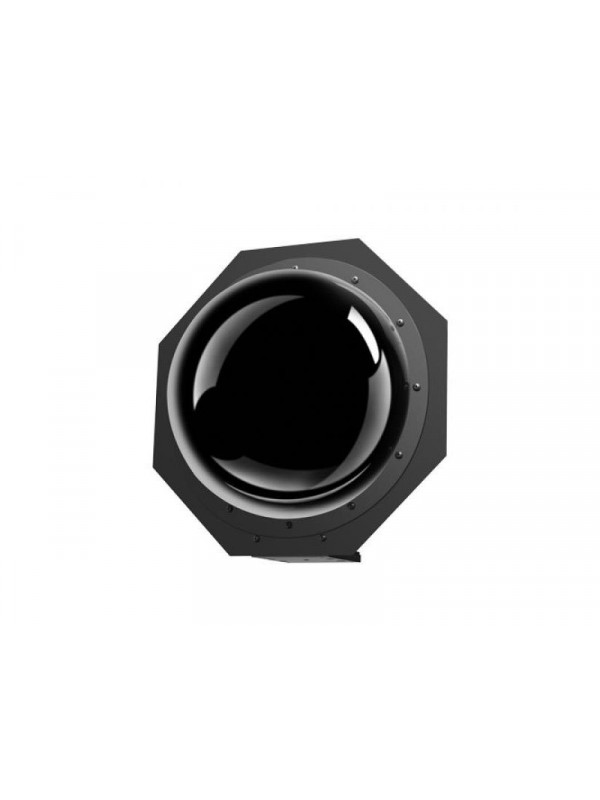

Sennheiser A 5000-CP antena pasiva UHF polarizată circulara tip Fish Eye.. The A 5000-CP passive antenna provides an optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum. Installations have demonstrated that the circular polarization of this antenna minimizes variations in signal strength and almost eliminates multipath problems, a primary cause dropouts. The gain of this antenna over the entire UHF band is superior to common `off the shelf" antennas.

The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems.

Features:
High Gain
Minimized Multipath
Broadband
Antenna gain 8 dBi
Bandwidth (- 3 dB) 450 - 960 MHz
Connector N (female)
Weight 1.41 kg
Dimensions 356 x 356 x 140 mm
Frequency range 3db: 450 - 960 MHz
