Sennheiser EM 300-500 G4 - Receptor wireless

Descriere

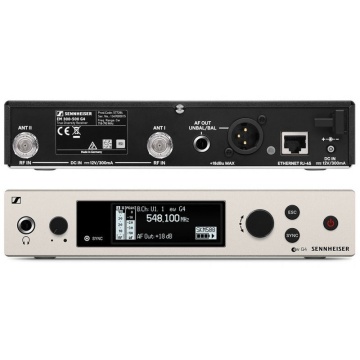

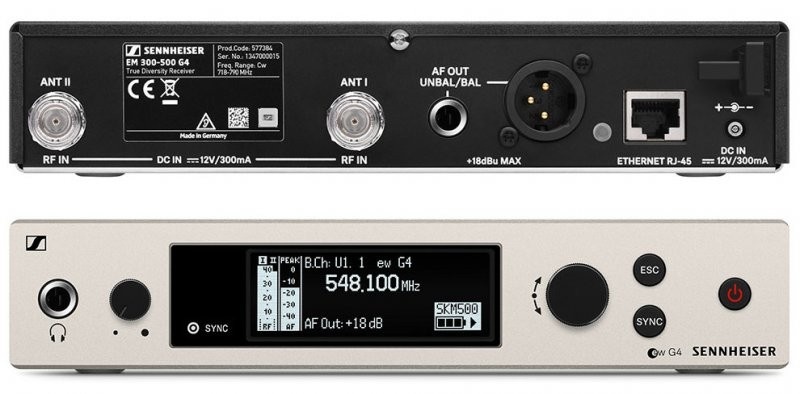

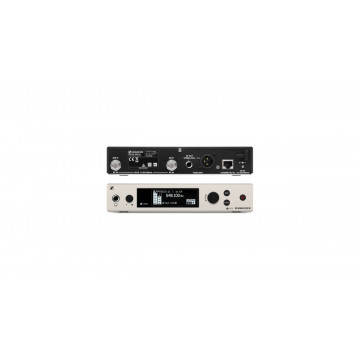

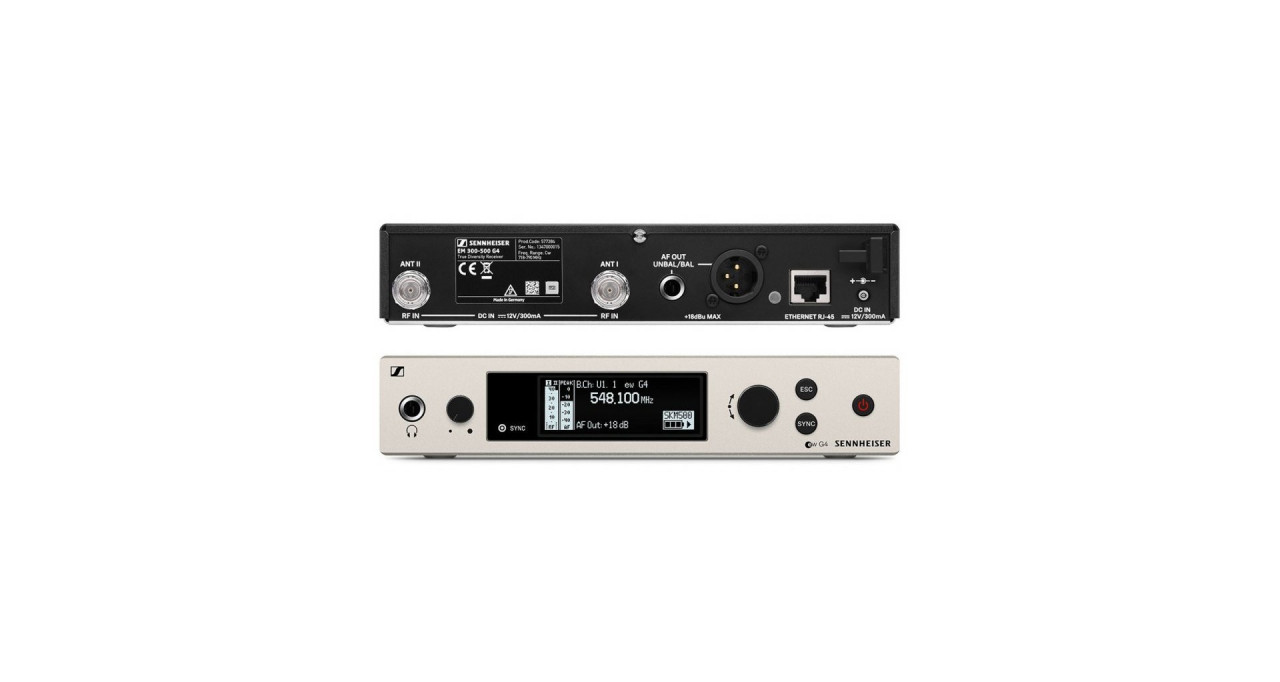

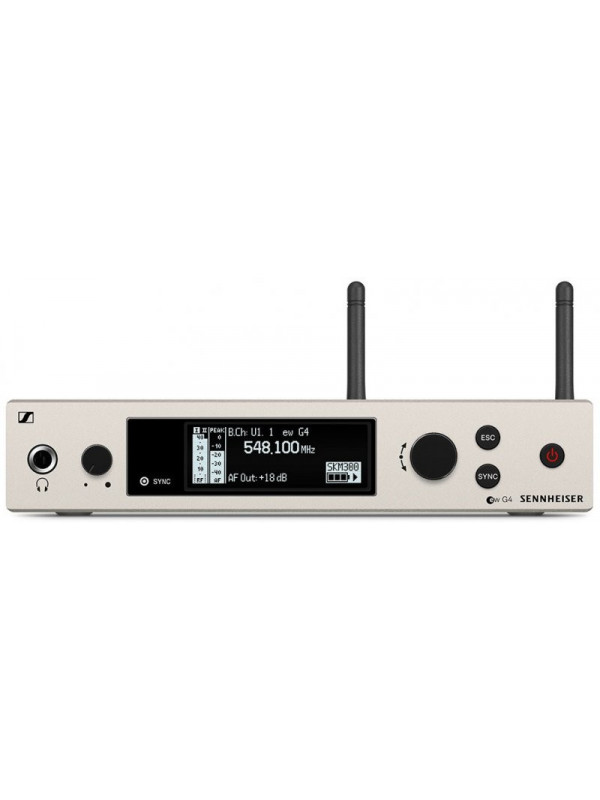

Receptor wireless true diversity half-rack cu carcasa de metal si afisaj intuitiv OLED pentru control deplin, cu latime de banda si putere de trasnsmisie crescute, pentru sistemele din seria G4 300/500.

Caracteristici:

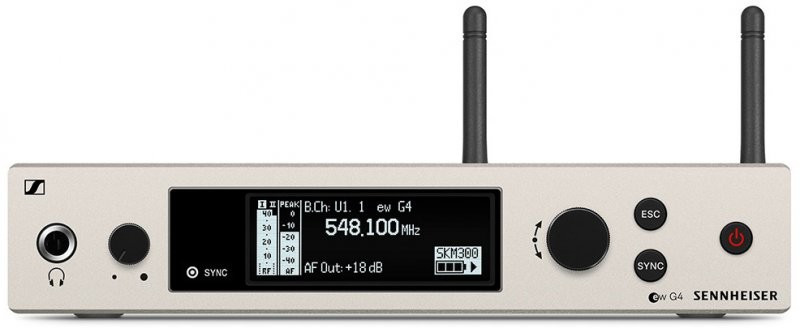

- Receptor half-rack true diversity intr-o carcasa din metal, cu afisaj OLED
- Usor de utilizat, timp de configurare rapid
- Portul de retea integrat permite controlul, monitorizarea si configurarea prin Sennheiser Control Cockpit si WSM
- O gama larga de produse si accesorii existente permite utilizarea in orice tip de mediu
- Latime de banda de pana la 88 MHz, pana la 32 de canale
- Putere crescuta de iesire RF (10/30/50 mW)
- Interval de transmisie: pana la 100 de metri
- Compatibil cu sistemul wireless LSP 500 PRO
- Comutator RC disponibil pentru transmitatorul bodypack

Specificatii:

- Dimensions: Approx. 202 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: &le. 0.9 %
- Weight: Approx. 980 g
- Audio output
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: &ge. 115 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC

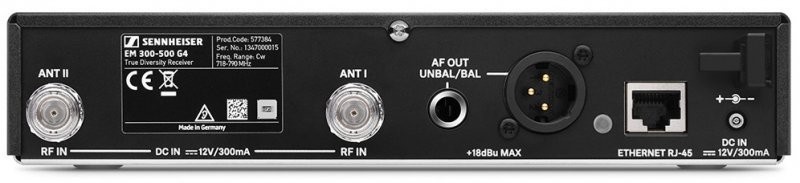

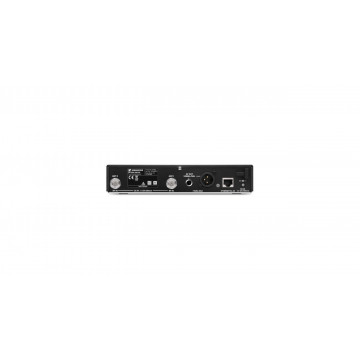

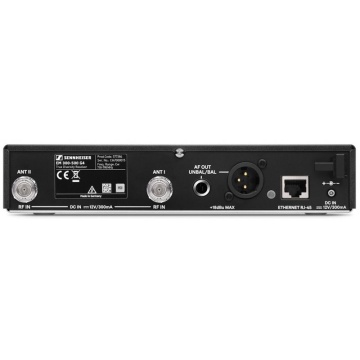

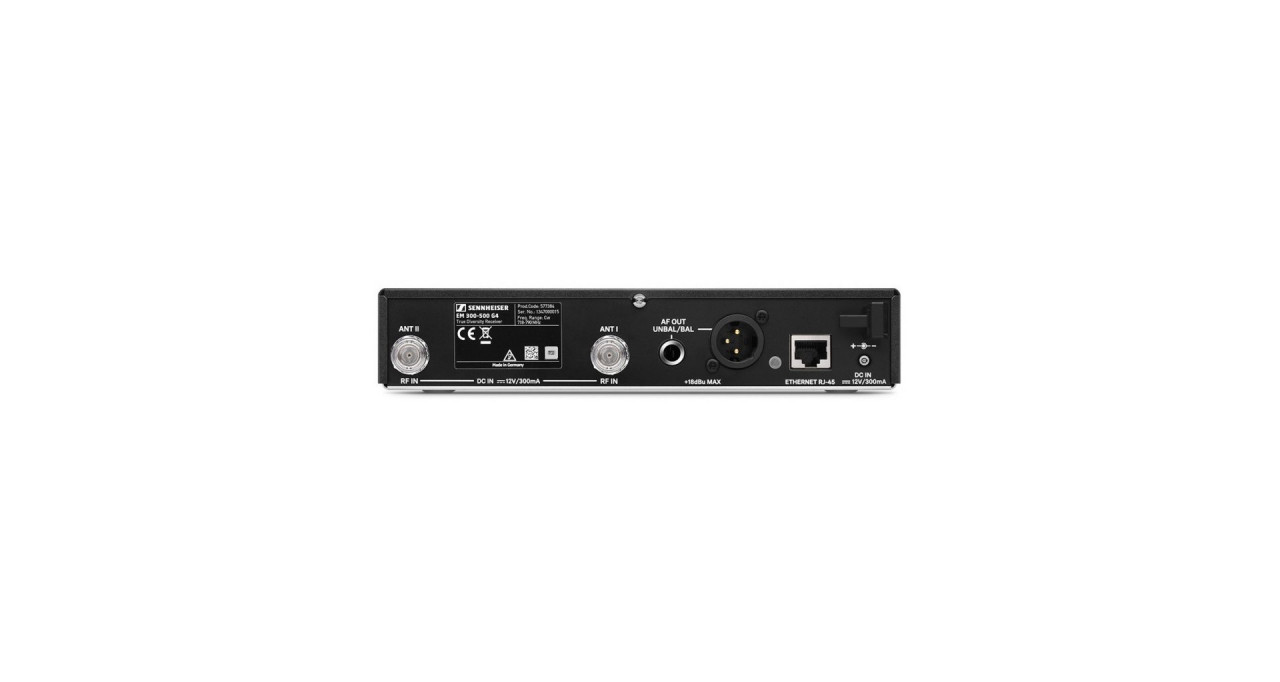

- Antenna connector: 2 BNC sockets
- Current consumption: 350 mA
- Adjacent channel rejection: Typically &ge. 75 dB
- Intermodulation attenuation: Typically &ge. 70 dB
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: <. 2.5 &mu.V for 52 dBA eff S/N
- Squelch: 5 to 25 dB&mu.V in steps of 2 dB
- Equalizer:
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: True diversity
- Blocking: &ge. 75 dB
