Sennheiser XSW1-CI1 (B) - Sistem Wireless pt Instrument
Descriere

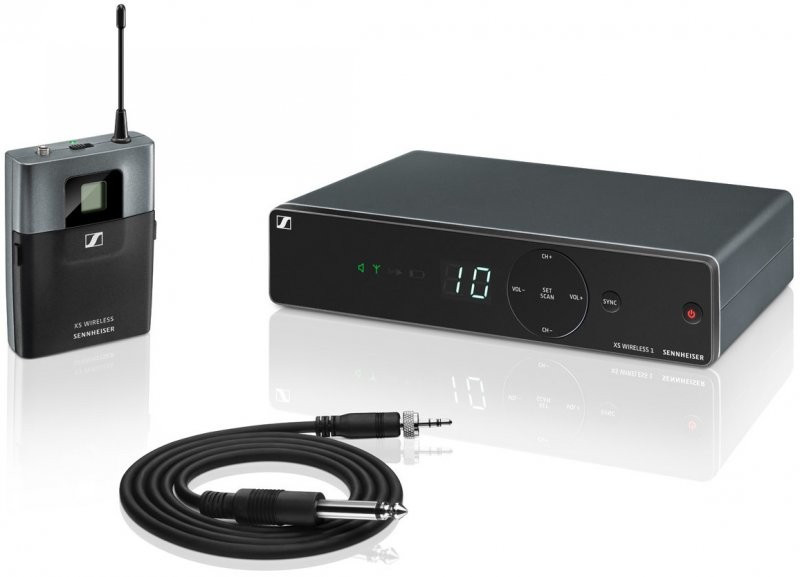

Sistem wireless, solutie foarte stabila all-in-one pentru instrumente. Recomandat in special pentru chitaristi si basisti. Contine emitator, receptor, cablu de instrument.
Banda de frecvente: B (614 - 638 MHz)

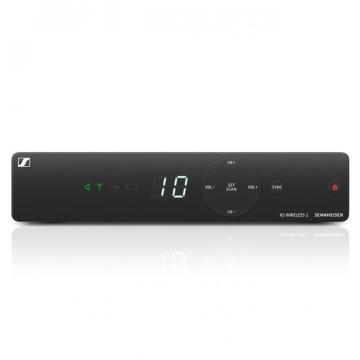

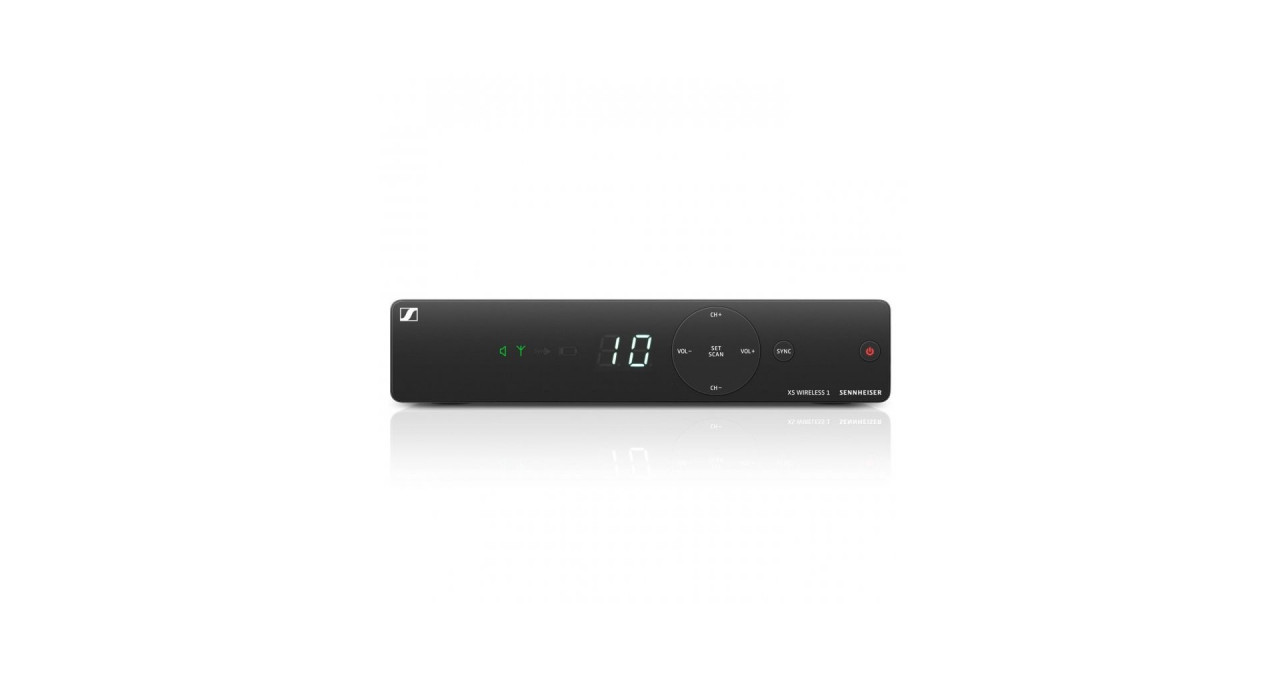

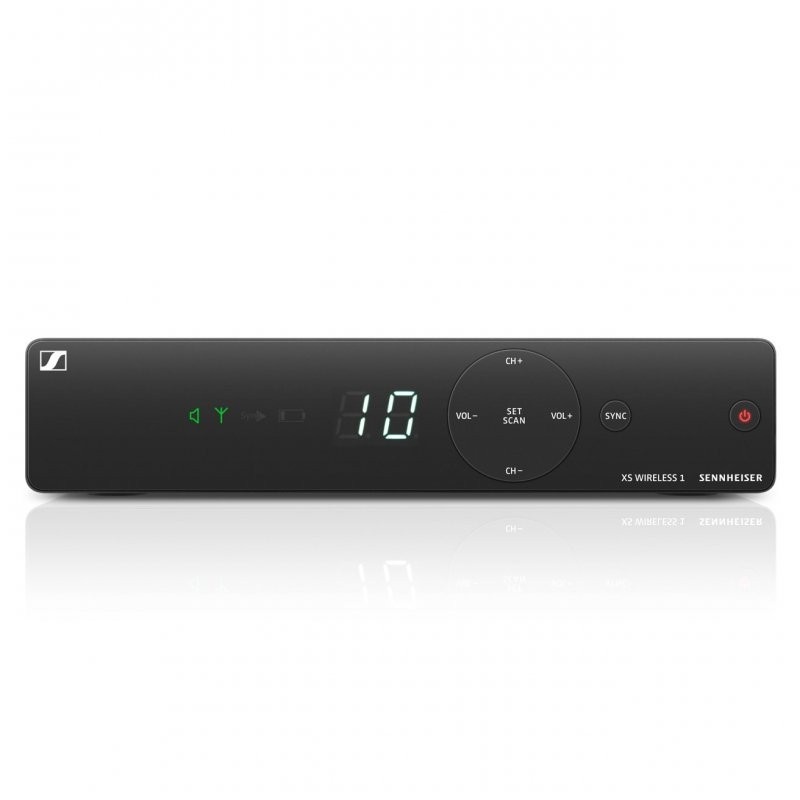

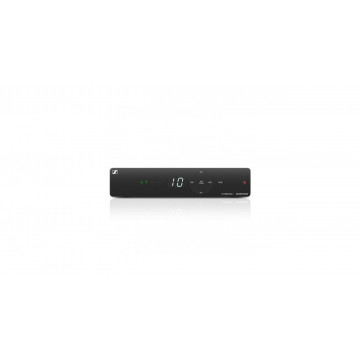

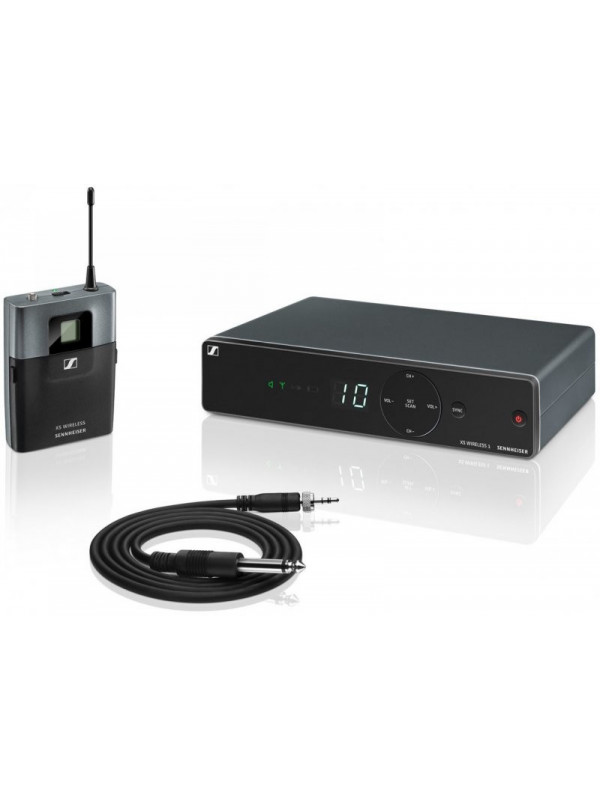

Sistem de transmisie XS Wireless 1, pentru un semnal de incredere si pana la 10 canale compatibile UHF. Este usor de utilizat, o solutie wireless all-in-one pentru chitaristi si basisti, ideal pentru sunet live. Setul contine un receptor extrem de intuitiv pentru setare rapida, un bodypack compact si un cablu de instrument rezistent.
Caracteristici:

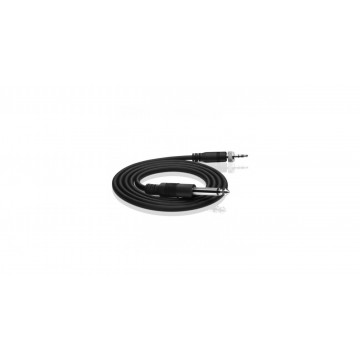

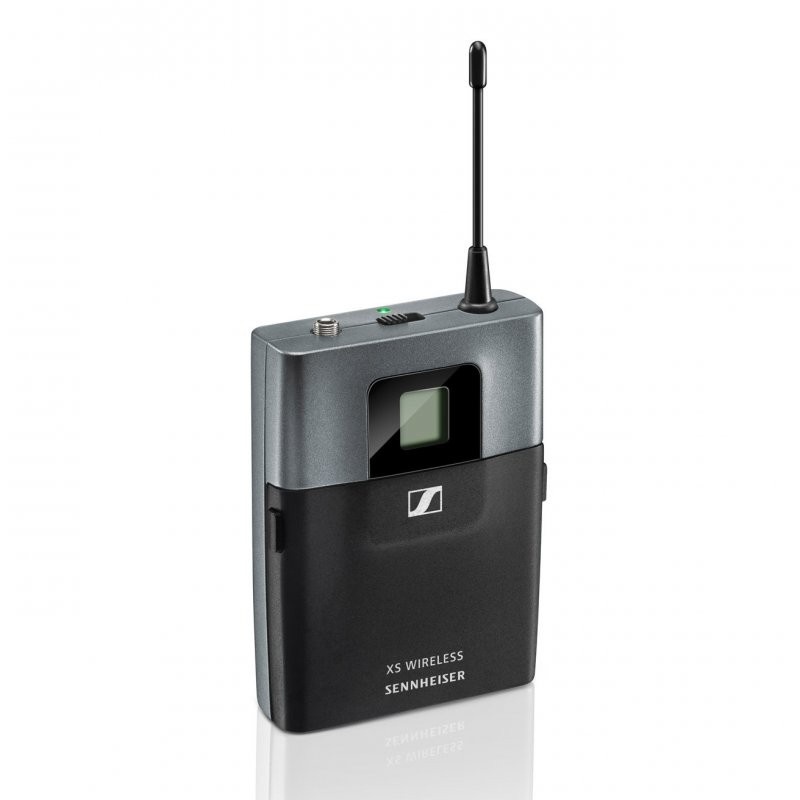

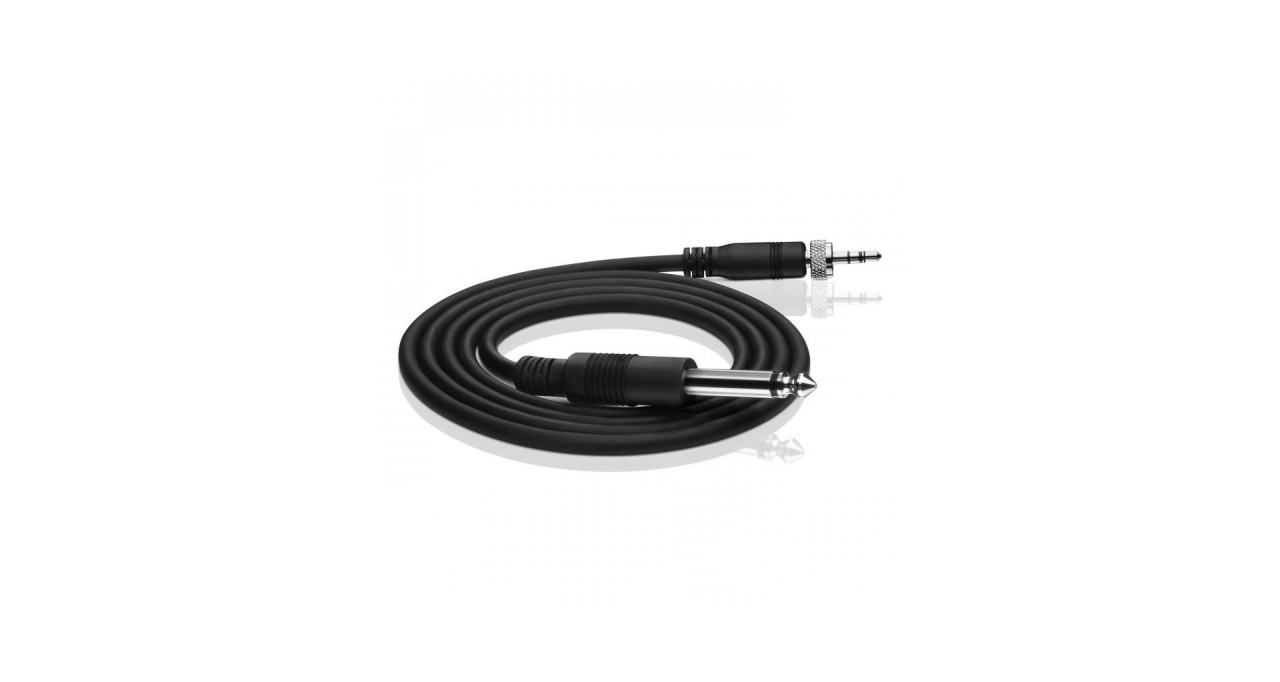

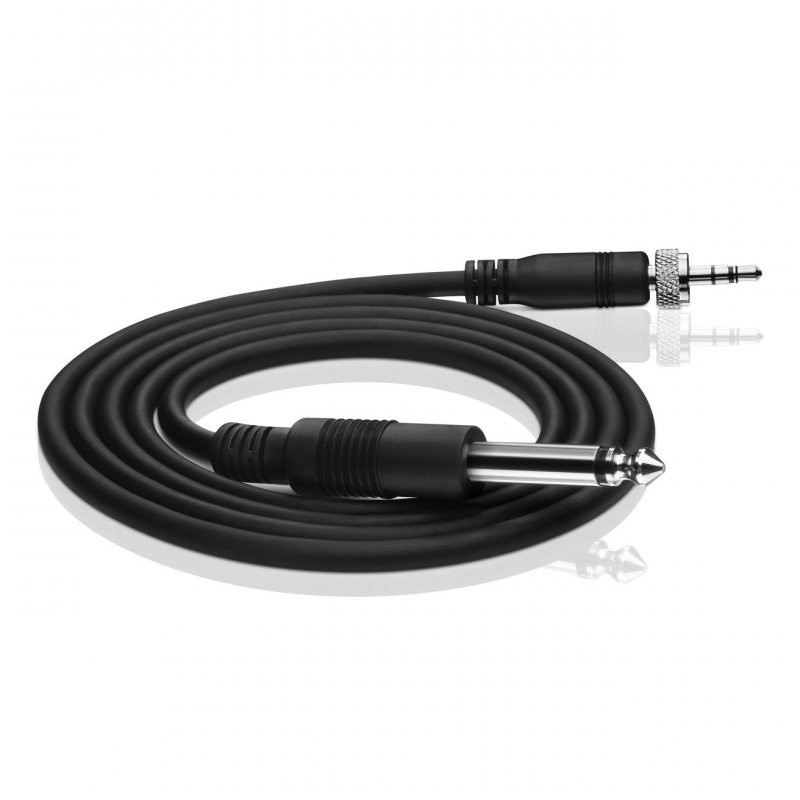

-Transmitator bodypack compact, cablu rezistent
-Comutare antena
-Antene integrate
-Management frecvente si sincronizare automata prin remote channel setup
-Frecventa UHF selectabila
-Pana la 10 canale compatibile
Specificatii:
Dimensions
Receiver: approx. 200 x 42 x 127 mm
Bodypack transmitter: approx. 71 x 96 x 28 mm
THD, total harmonic distortion &le. 0.9%
Weight approx. 340g (receiver), approx. 95g (transmitter)
Signal-to-noise ratio &ge. 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation Wideband FM
Power supply Receiver: 12 V DC nom. / 300 mA, Transmitter: 2 AA size batteries, 1.5 V

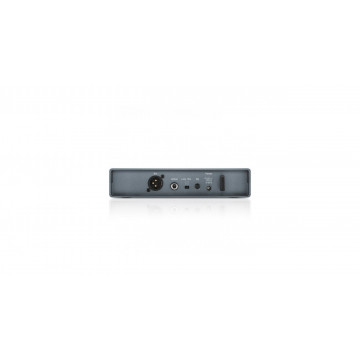

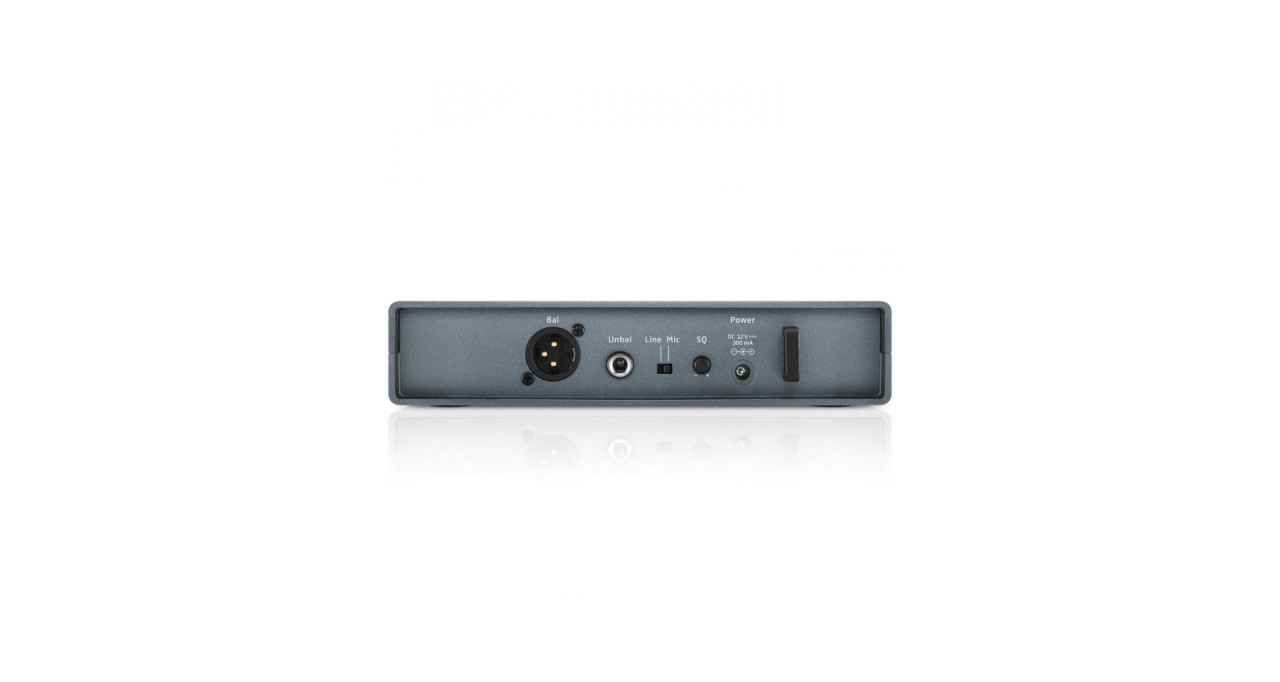

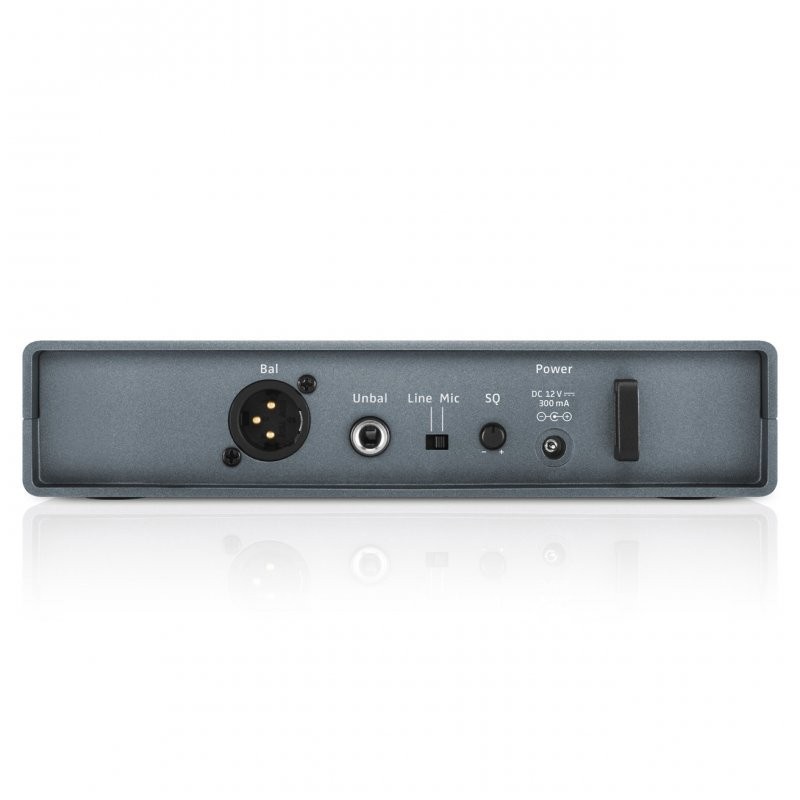

Output voltage 1/4&ldquo. (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing Rugged ABS housing
Frequency 8 frequency banks, each with up to 10 factory-preset channels
Sensitivity <. 3 &mu.V at 52 dB(A)rms S/N
SPL for peak deviation 130 dB
Squelch adjustable from 3 dB&mu.V to 28 dB&mu.V (combined with pilot tone)
Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity 1.5 mV / Pa
AF frequency response Receiver: 50 to 16,000 Hz (&ndash.3 dB)
Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range 45 dB, adjustable in 5-dB steps
Line / Mic level 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: &ndash.20°C to +70°C
Receiver Principle double superheterodyne
Diversity principle Antenna switching diversity via internal antennas . . .
