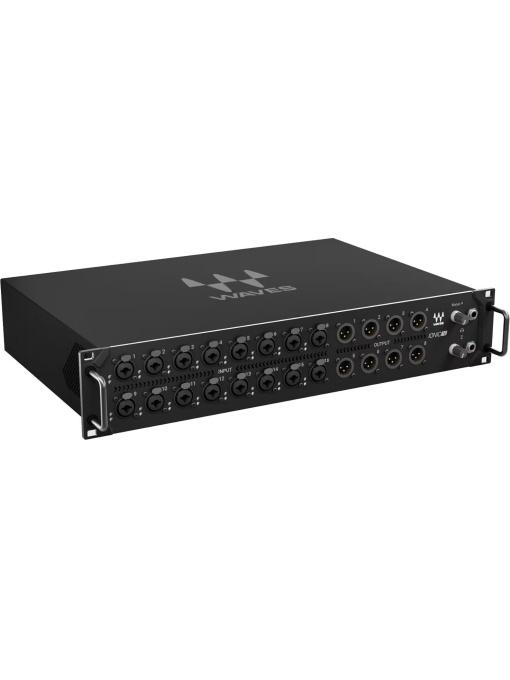

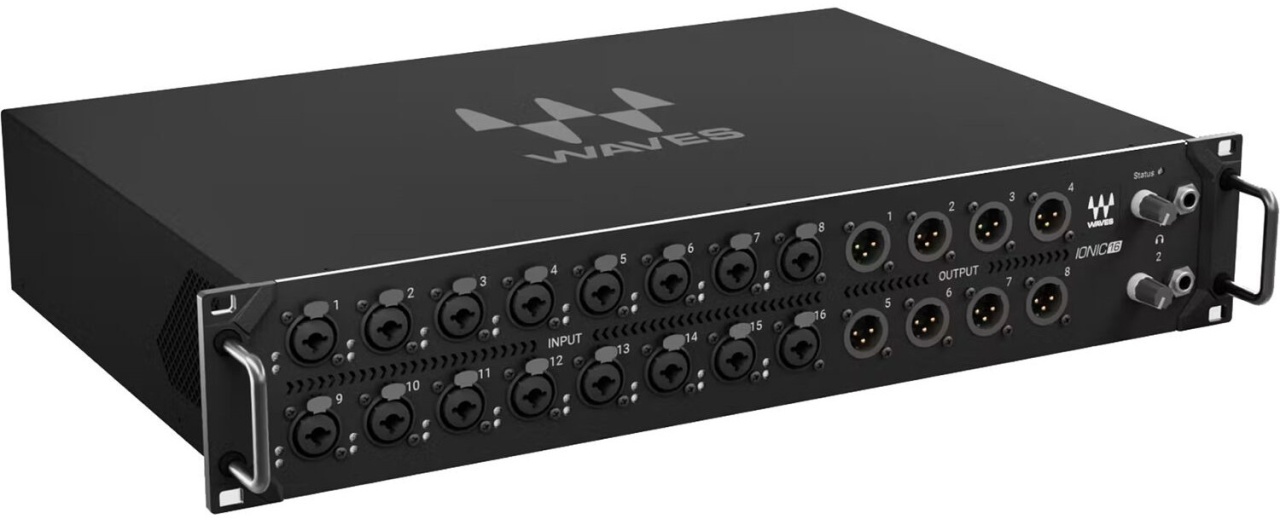

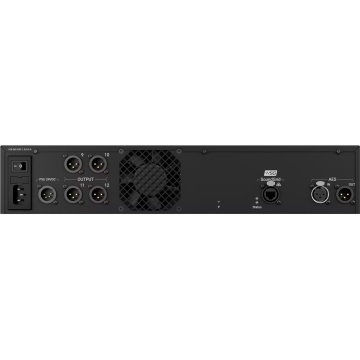

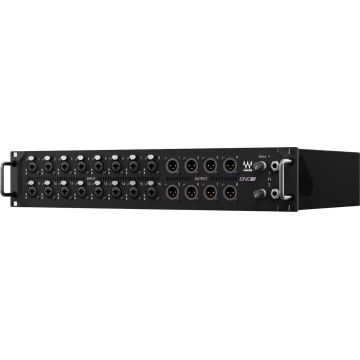

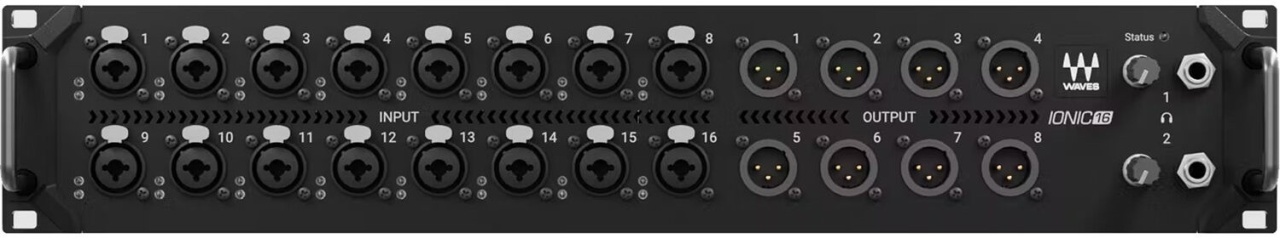

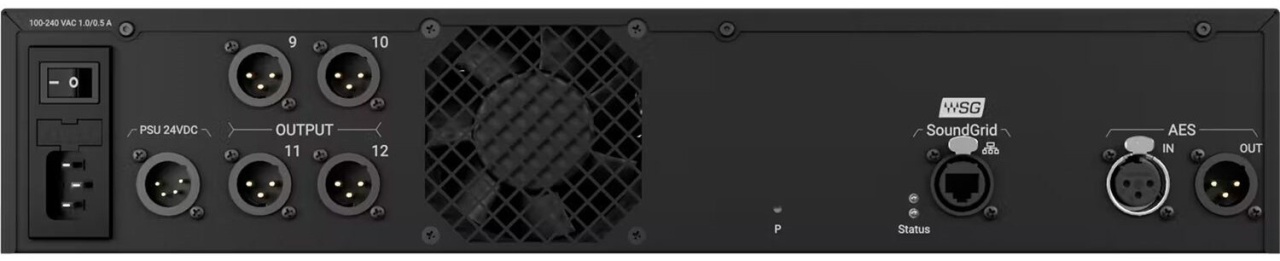

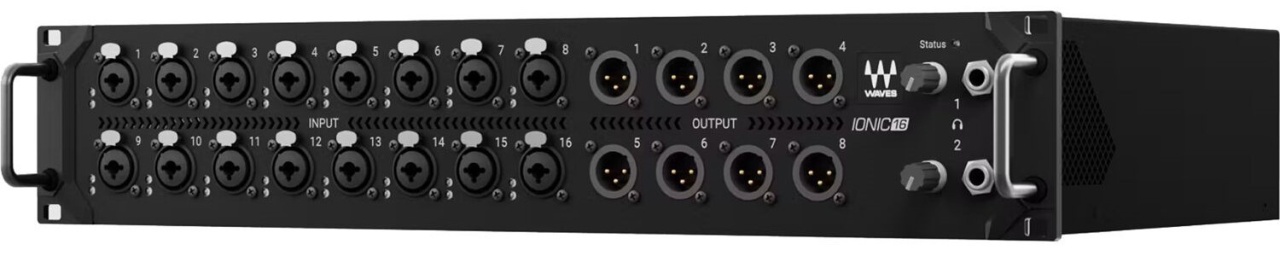

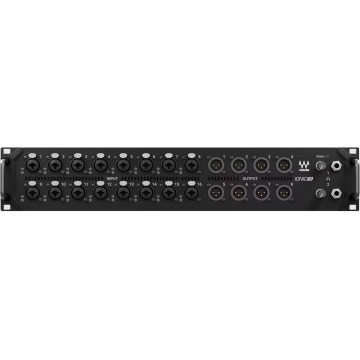

Waves IONIC 16 - Stagebox
Descriere
Stagebox SoundGrid 16-in / 12-out cu preamplificatoare Waves Signature.
.Specificatii tehnice:
Rate de esantionare:
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Intrari microfon/linie:
Castig de intrare: ajustabil de la -3 dB la 60 dB in pasi de 1 dB
Raspuns in frecventa: (+18 dBu intrare)
+/- 0.1 dB, 20 Hz pana la 20 kHz
+/- 1.0 dB, 10 Hz pana la 40 kHz
Domeniu dinamic: >110 dB (20 kHz BW, 0 dB Castig)
EIN: -130 dBu (castig 60 dB, sursa 0 ohmi, A-ponderat)
THD+N: -100 dB (997 Hz, +18 dBu sursa, 0 dB Castig, 20 kHz BW)
Impedanta de intrare:
XLR: 2k ohmi / 7k ohmi, selectabil per intrare
TRS: 14.6K ohmi
Sensibilitate de intrare:
XLR: -33 dBu la +27 dBu, ajustabil in pasi de 1 dB
TRS: -27 dBu la +33 dBu, ajustabil in pasi de 1 dB
CMRR: 50 dB (20 Hz pana la 1 kHz, 0 dB castig)
Diafonie: > 90 dB (20 Hz pana la 20 kHz, +27 dBu intrare, 0 dB castig)
Alimentare phantom 48V: comutabila per intrare
Simulare transformator de intrare: comutabila per intrare
Indicator de prezenta semnal si clip: pe panoul frontal, per canal
Iesire linie:
Nivel maxim de iesire: +18 dBu sau +24 dBu, comutabil per iesire
Raspuns in frecventa:
+/- 0.1 dB, 20 Hz pana la 20 kHz @ 48 kHz SR
+0.1 / -1.0 dB, 10 Hz pana la 40 kHz @ 96 kHz SR
THD+N: -100 dB @ +24 dBu, -105 dB @ +18 dBu (997 Hz, 20 kHz BW)
Diafonie: > 90 dB (20 Hz pana la 20 kHz)
Zgomot rezidual de iesire: -87 dBu (A-ponderat)
Impedanta de iesire: 150 ohmi
Iesire pentru casti:
Castig de iesire ajustabil: pana la 6V
Raspuns in frecventa:
+/- 0.1 dB, 20 Hz pana la 20 kHz @ 48 kHz SR
+0.1 / -1.0 dB, 10 Hz pana la 40 kHz @ 96 kHz SR
THD+N: -80 dB (3V @ sarcina 30 ohmi, 997 Hz, 20 kHz BW)
Impedanta de iesire: 20 ohmi
AES3:
Impedanta de intrare/iesire: 110 ohmi
Intrare SR cu conversie automata (SRC)
Iesire SR suport: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
SoundGrid:
Ethernet: 1GB
Alimentare:
100 V–240 V: auto-comutare PSU 0.5A / 0.25A, intrare PSU redundanta externa
Temperatura de operare:0 pana la 35 grade Celsius
Dimensiuni: 482.1 x 305.9 x 87 mm
Greutate: 5.3 kg
