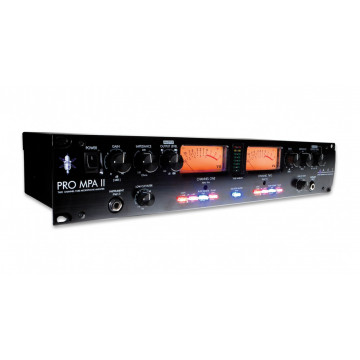

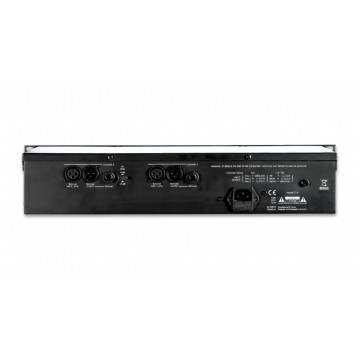

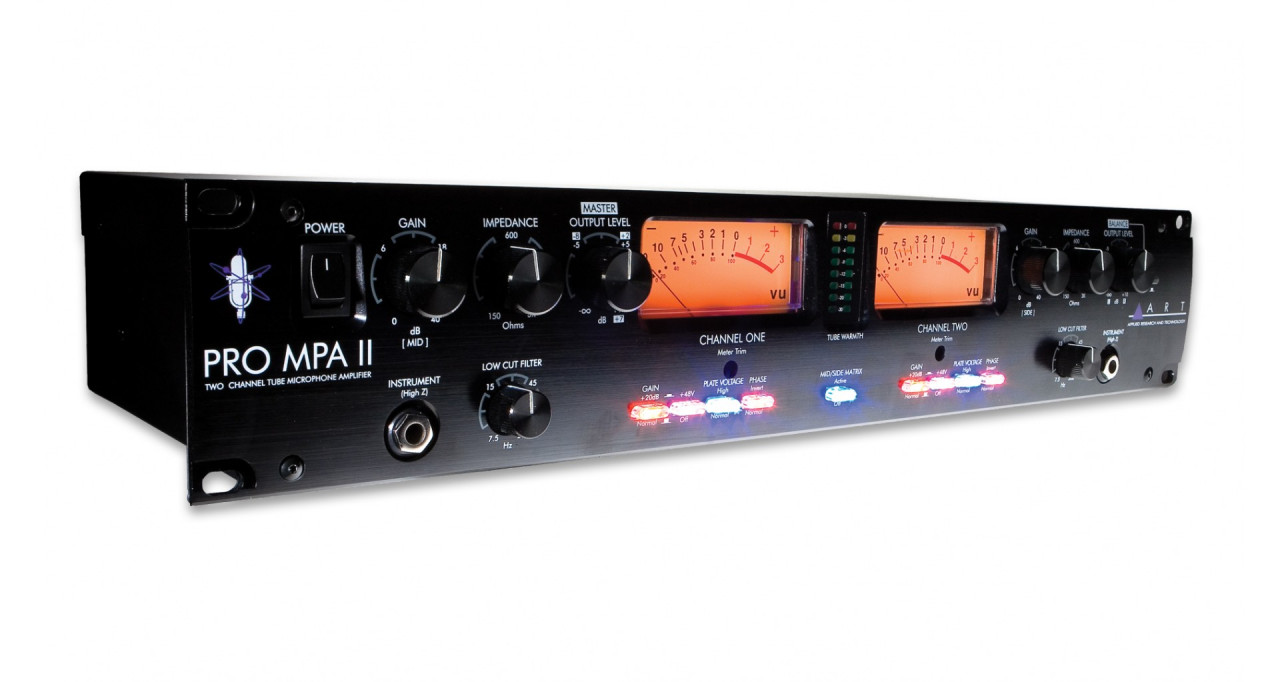

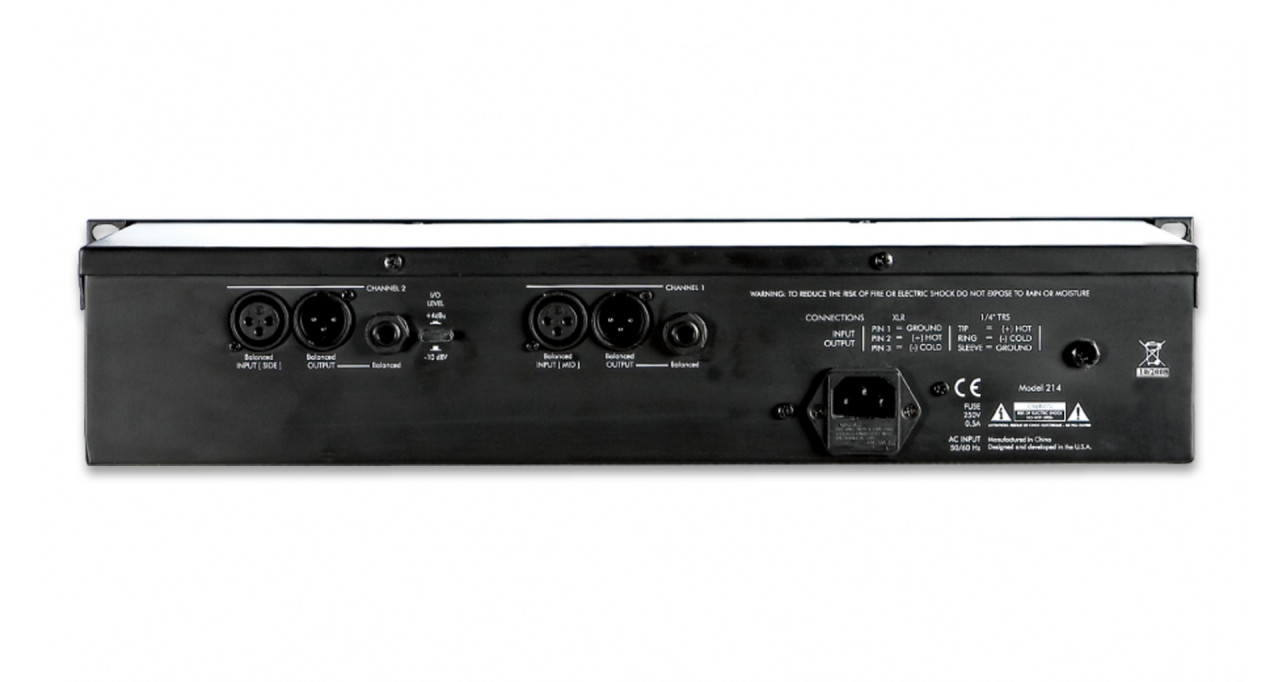

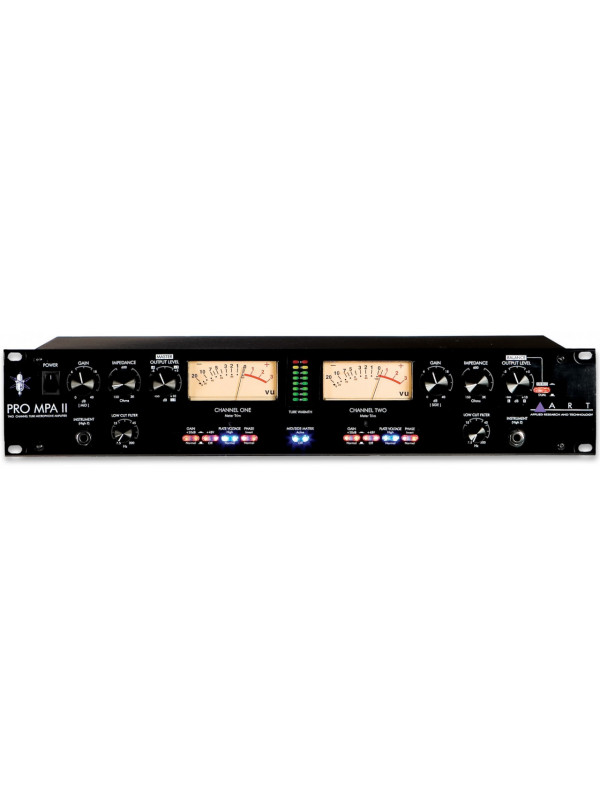

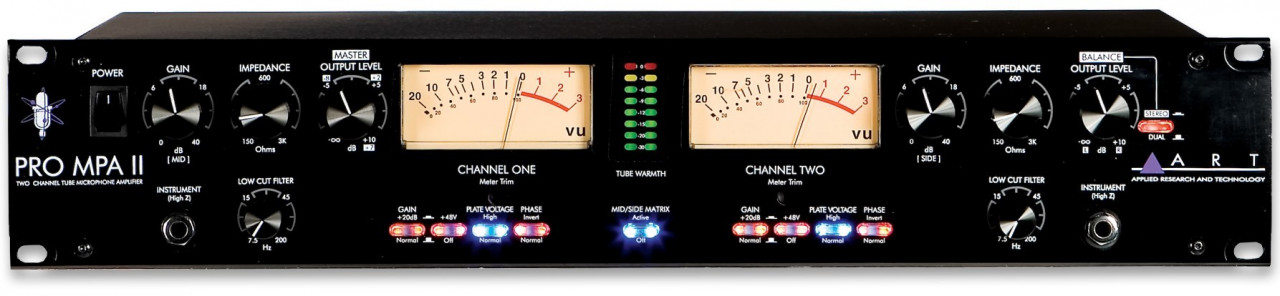

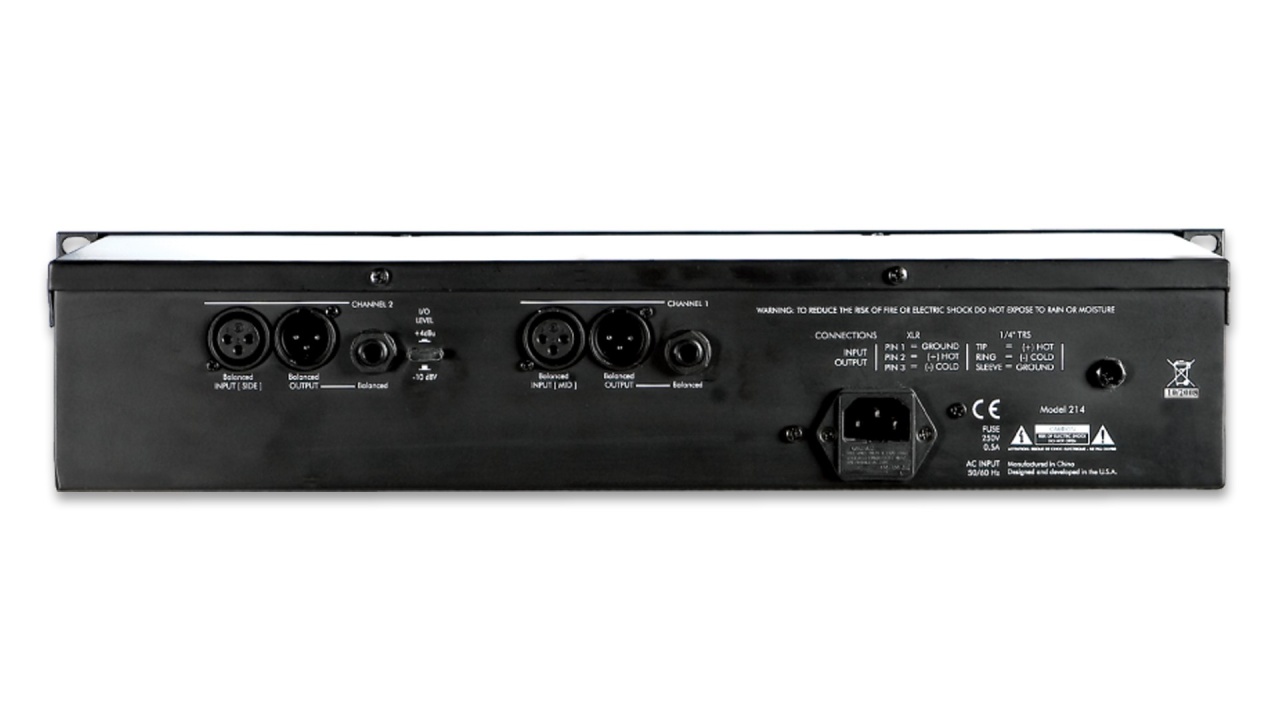

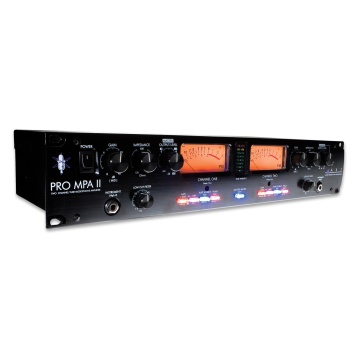

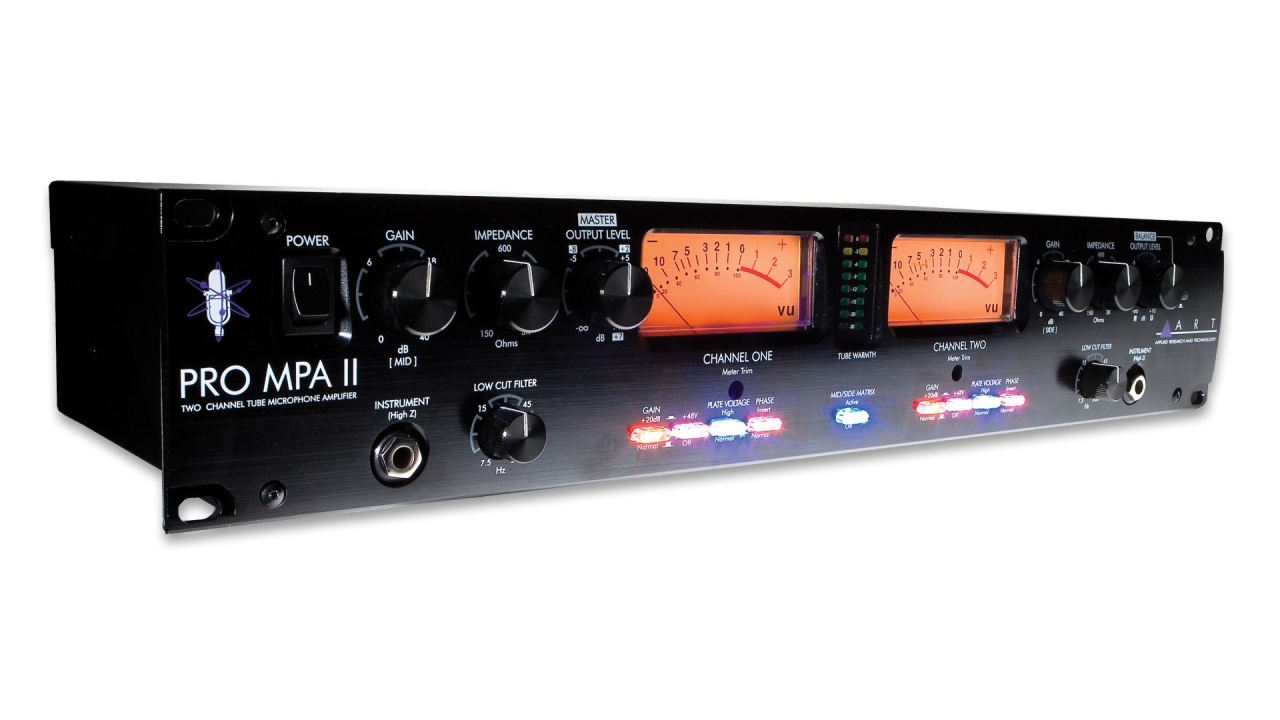

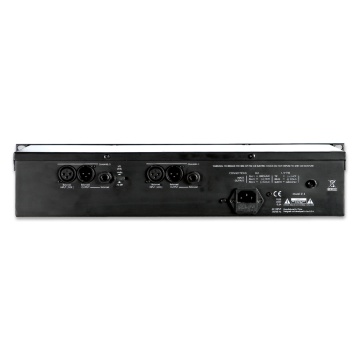

ART Pro MPA-II - Preamplificator cu doua canale

Descriere

Pro MPA-II este un preamplificator cu 2 canale, echipat cu doua lampi 12AX7 care poate fi folosit atat pentru aplicatii mono cat si stereo. Carcasa permite asezarea acestui preamp in rack, datorita design-ului clasic 2U.

Specificatii:

Frequency Response 15Hz to 48kHz (+0, -1dB) @ normal plate voltage
15Hz to 120kHz (+0, -1dB) @ high plate voltage
Total Harmonic Distortion <.0.005% (typical)
CMRR >. 90dB
Dynamic Range >. 110dB (&ldquo.A&rdquo. weighted)
Equivalent Input Noise -129dBu (XLR, &ldquo.A&rdquo. weighted)
Input Impedance 150-3000 &Omega. adjustable (XLR), >. 800K &Omega. (Instrument)
Maximum Gain 75dB
Maximum Input Level +19dBu (cannon)
Maximum Instrument Input +17dBu
Maximum Output Level +27dBu (XLR)
Output Impedance <.47 &Omega. (XLR)
Meter Calibration 0 VU = +4dBu outupt (+4dB mode) / 0 VU = -10dBV output (-10dB mode)
High Pass Filter Single pole, 10-200 Hz adjustable
Power Requirements USA &ndash. 105 to 125 VAC / 60 Hz Export units configured for country of destination
Dimensions 8.75&Prime.D x 19.0&Prime.W x 3.50&Prime. H (222mm x 482mm x 88mm)
Weight 10.5 lbs (4.5 kg)
