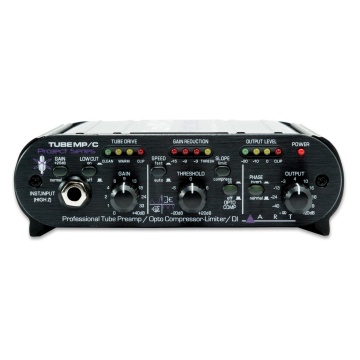

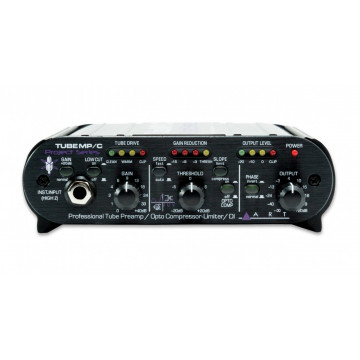

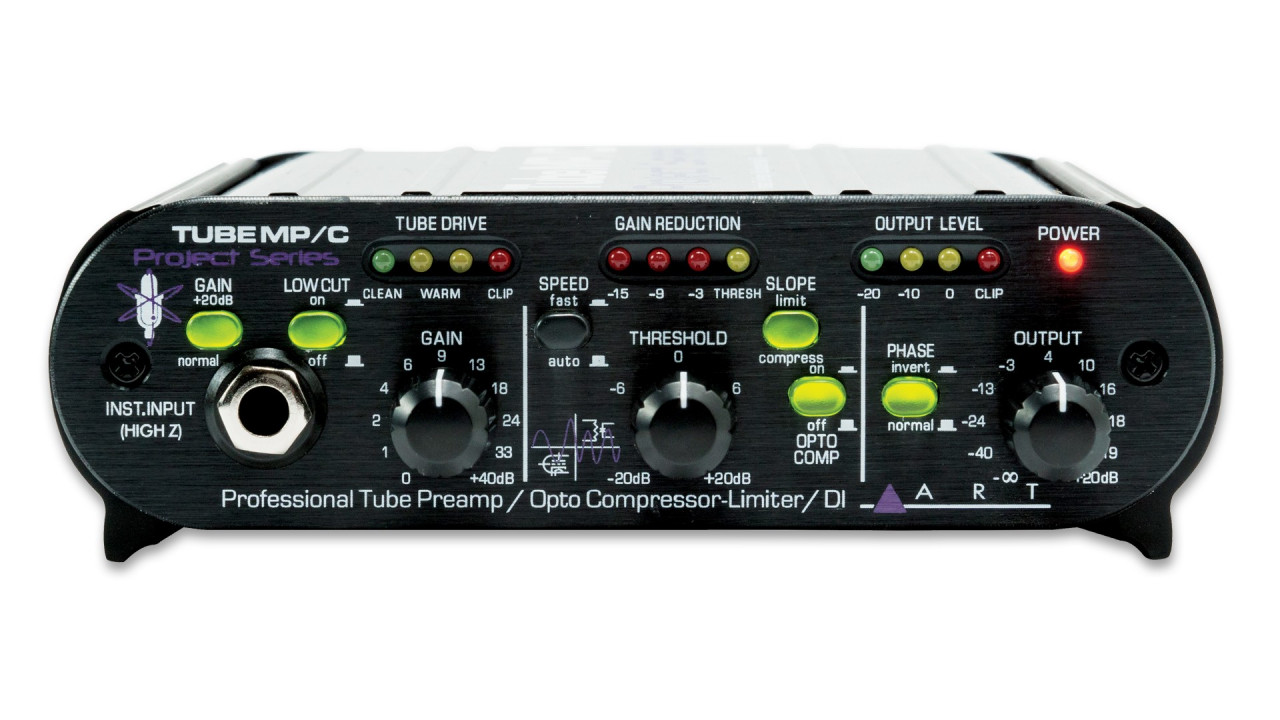

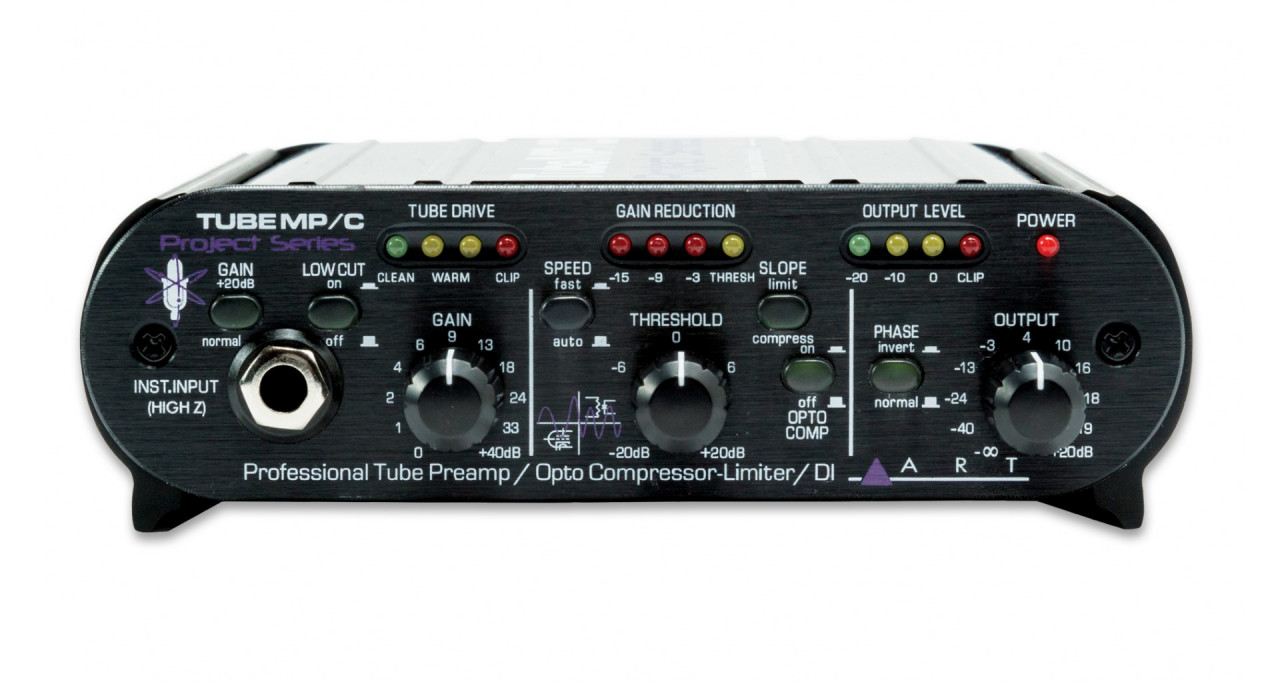

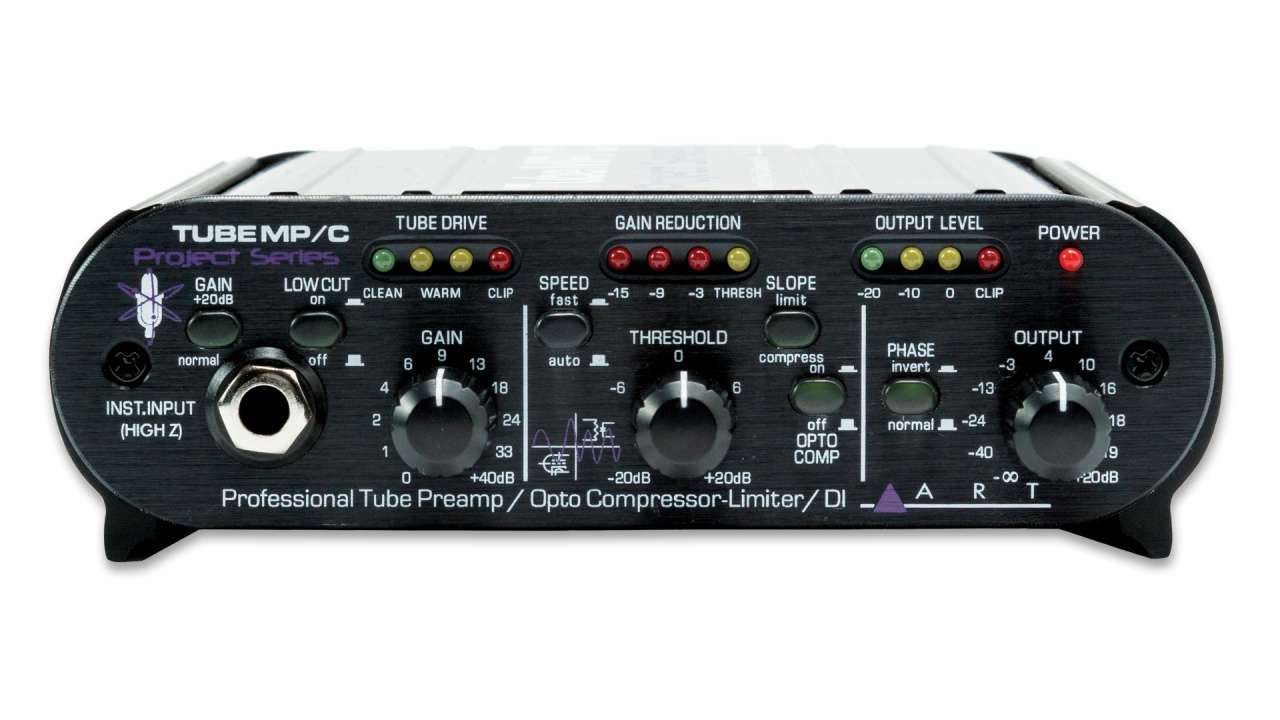

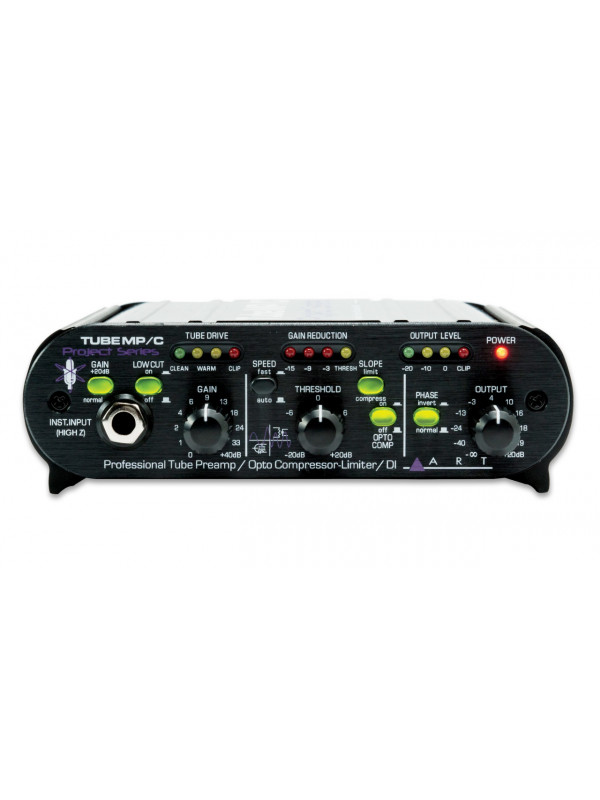

ART Tube MP/C - Preamplificator / Compresor cu lampa

Descriere

Specificatii:

Frequency Response 30 Hz &ndash. 60 kHz +/- 1 dB balanced output, 20 Hz &ndash. 60 kHz +/- 1dB 1/4&Prime. output
Total Harmonic Distortion <.0.1% @ max gain
CMMR >. 60 dB @ max gain
Equivalent Input Noise -128dBu typical (&ldquo.A&rdquo. wtd., Shorted XLR balanced input, gain @ max)
Input Impedance 1M &Omega. 1/4&Prime. input, 5K &Omega. XLR input

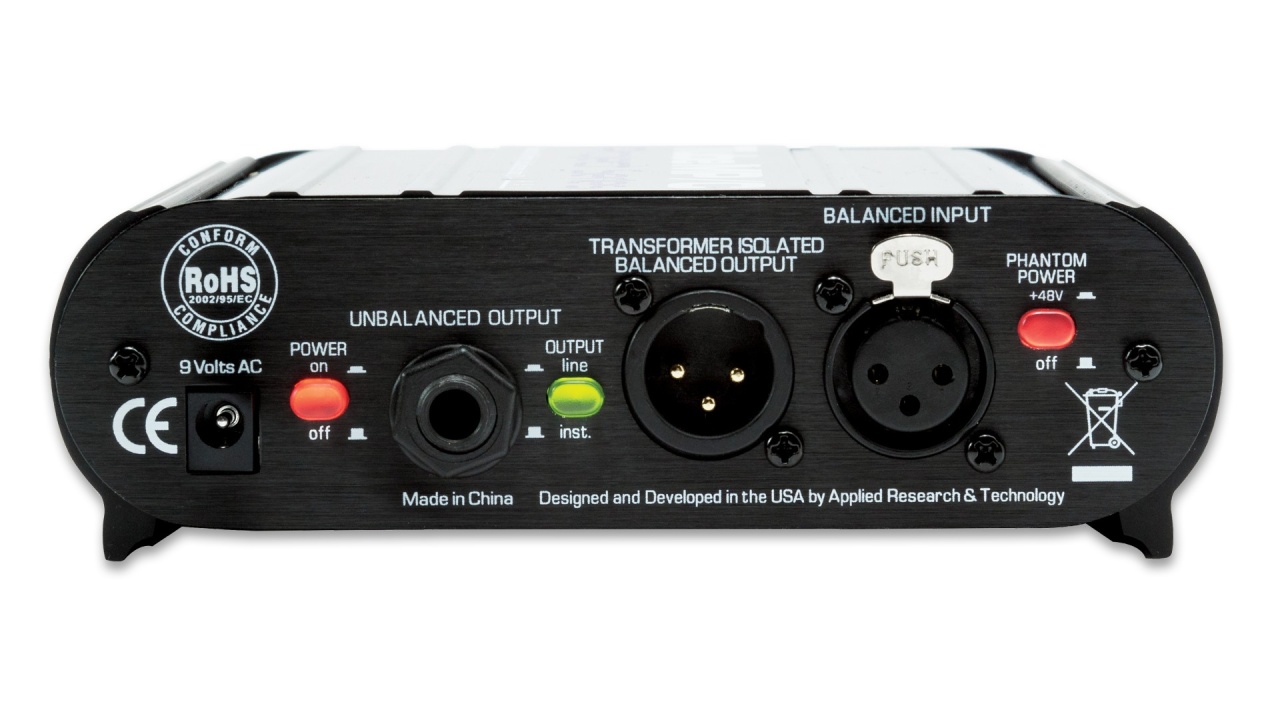

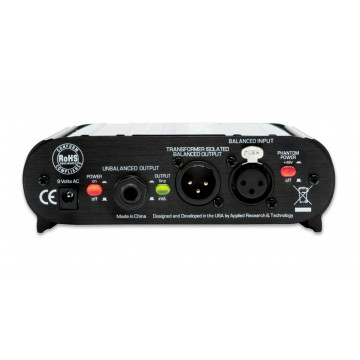

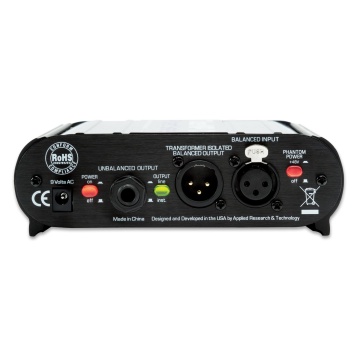

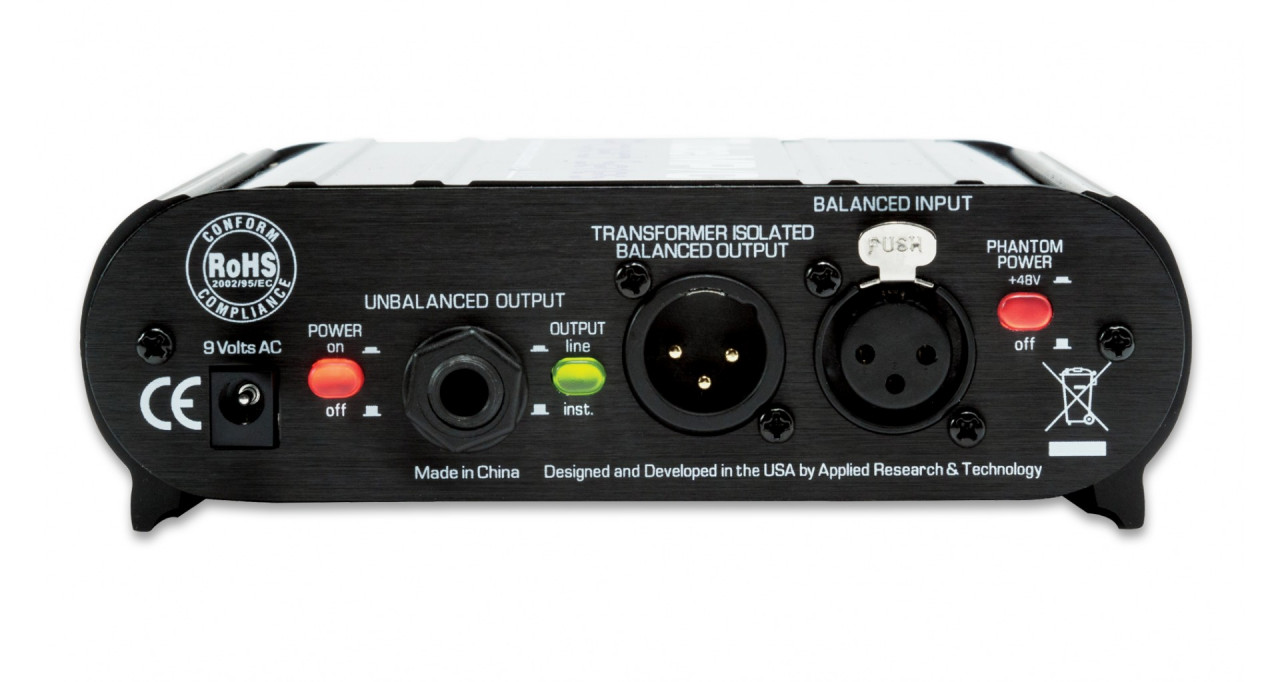

Input/Output Connections Input: XLR balanced or 1/4&Prime. balanced. Output: 1/4&Prime. unbalanced XLR balanced, transformer isolated.
Maximum Gain +80 dB (balanced in-out, +64dB (unbalanced input, balanced output)
Maximum Input Level unbalanced (Inst): +15 dBu, balancd (mic): +10 dBu
Maximum Output Level +19 dBu (Line mode)
Output Impedance XLR: <.600 &Omega., 1/4&Prime.: <.300 &Omega.
Low Cut Filter -3 dB @ 70 Hz, 6dB/Octave
Phantom Power Switch selectable, +48Volts DC, filtered, current limited
Chassis Type All aluminum black anodized with integral rubber sides
Power Requirements 9VAC @ 1000mA (external)
Attack Time <.1 ms (limit), 20 ms (comp.)
Release Time 150ms (fast), 20ms &ndash. 3s Program dependant (Auto)
Tube Type Hand selected 12AX7a
Compressor Slope 2:1 (Comp.) / 11:1 (Limit)
Dimensions 1.75&Prime.H x 5.9&Prime. W x 6.5&Prime. D (44.5mm x 150mm x 165mm)
Weight 2.9 lbs (1.32 kg)
