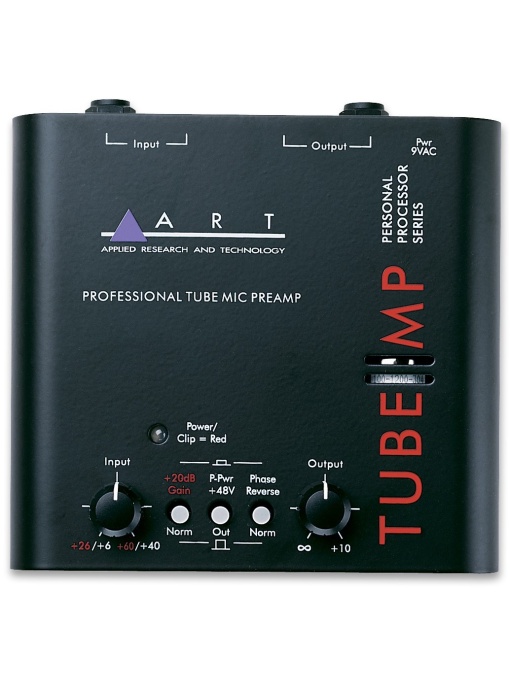

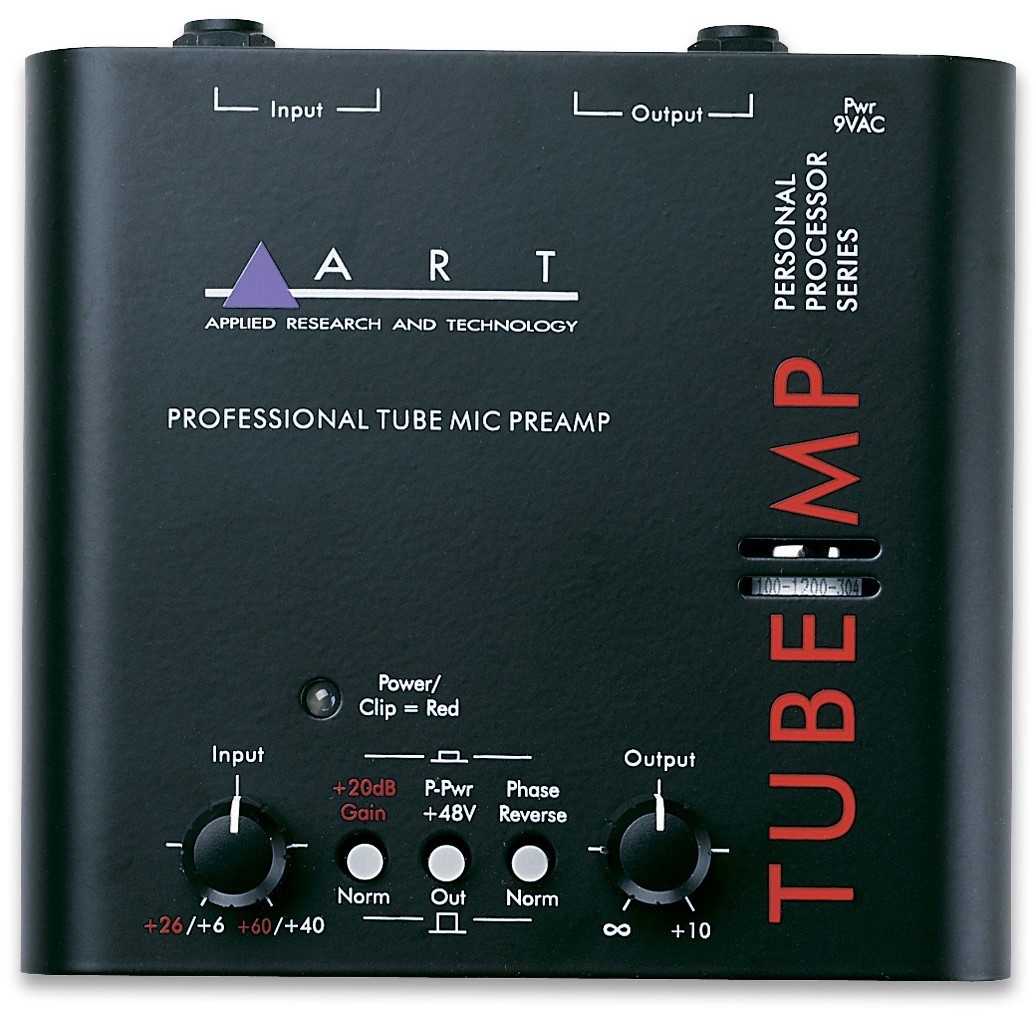

ART Tube MP - Preamplificator microfon cu lampa

Descriere

DISCONTINUED

Frequency Response 10Hz to 20kHz (+0,-1dB)
Total Harmonic Distortion <.0.1% (typical)
CMMR >. 75dB (typ @1kHz)
Dynamic Range >. 100dB (20Hz to 20kHz)
Equivalent Input Noise -129dBu (&lsquo.A&rsquo. weighted XLR to XLR)
Input Impedance 2k &Omega. (XLR), 840K &Omega. (1/4&Prime.)
Maximum Gain 70dB (XLR to XLR typical)
Maximum Input Level +14dBu (XLR), +22dBu (1/4&Prime.)
Maximum Output Level +28dBu (XLR), +22dBu (1/4&Prime.)
Output Impedance 600 &Omega. (XLR), 300 &Omega. (1/4&Prime.)
Power Requirements 9 VAC @ 700ma (typ)
Dimensions 5.0&Prime.D x 5.5&Prime.W x 2.0&Prime.H
Weight 1.5 lbs
