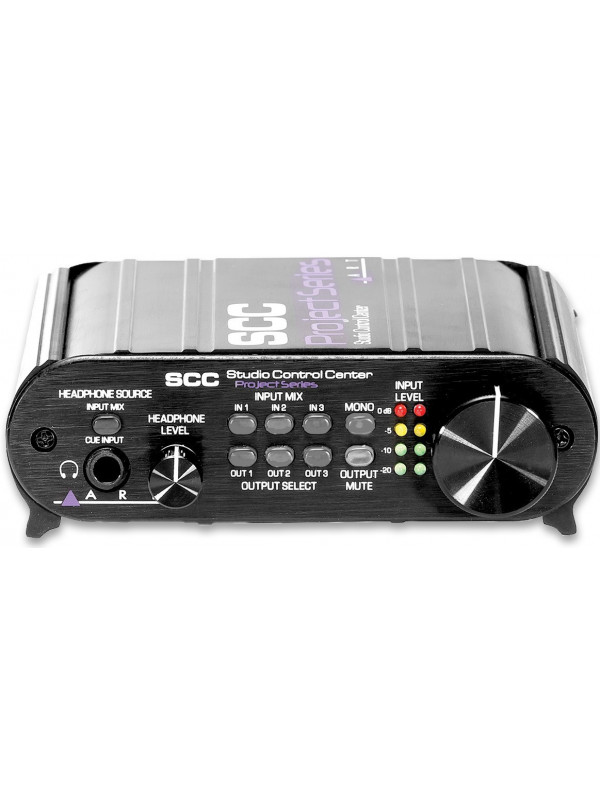

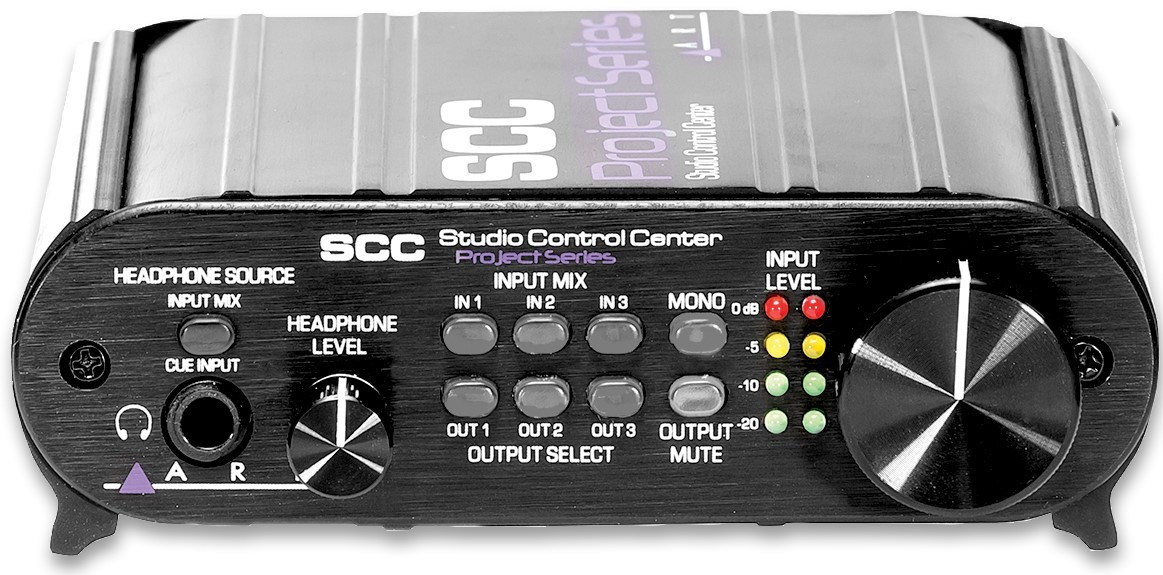

ART SCC - Controller monitoare de studio

Descriere

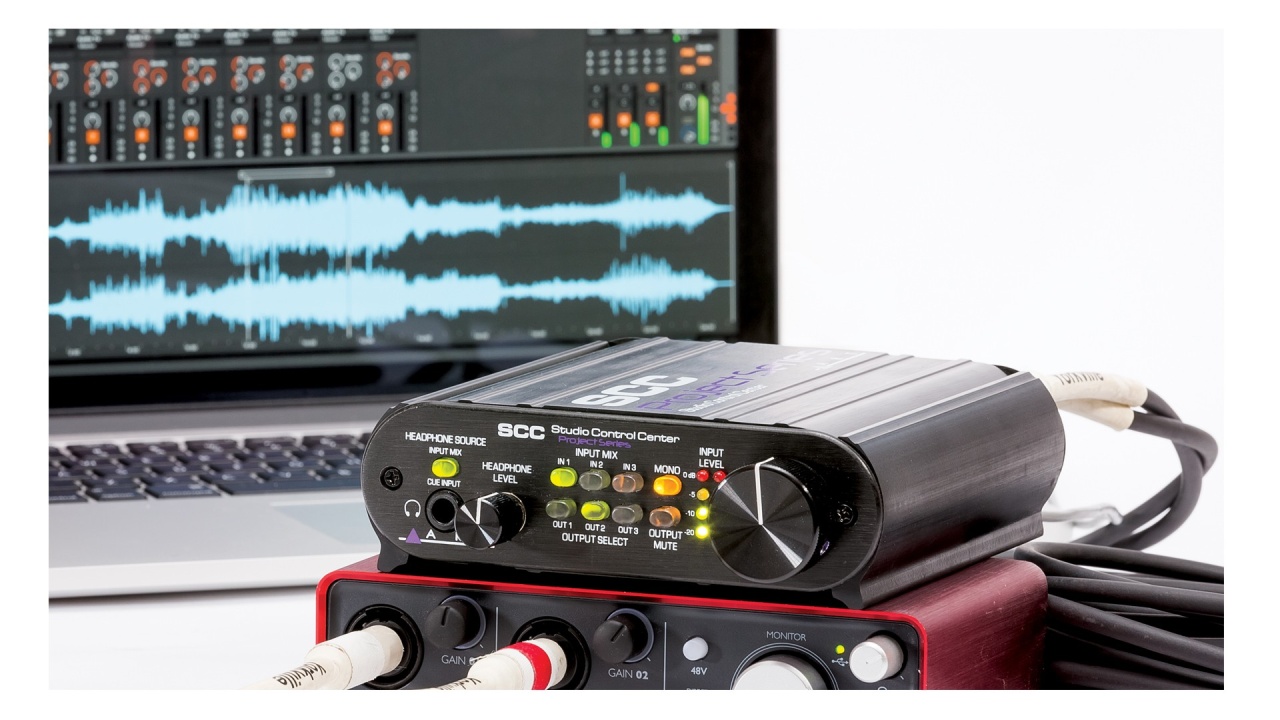

ART SCC este un controller pentru monitoare de studio care poate fi folosit pentru controlarea a 3 surse stereo.

Specificatii:

Frequency Response 10-100kHz + 0.5dB
Total Harmonic Distortion <.0.004% @ 20-20kHz
Maximum Gain +23 dB (balanced in-out)
+20dB (Cue input to Headphone output)
Input Impedance 9k &Omega. balanced (CH1, CH2)
5k &Omega. unbalanced (CH3, Cue)
Maximum Input Level +21dBu balanced inputs
+20 dBu unbalanced inputs
Maximum Output Level +18dBu balanced (OUT1-OUT3)
Equivalent Input Noise <.-96 dBu (balanced inputs)
<.-102dBu (Cue Input)
Headphone Out 1/4-inch Stereo TRS headphone jack
Headphone Level 100mW (x2) @100 &Omega.
CMRR >.50 dB

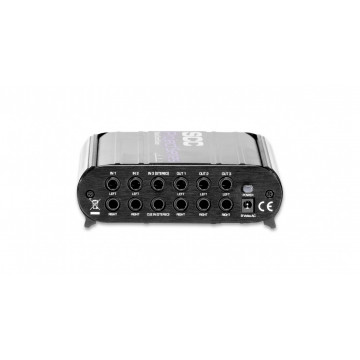

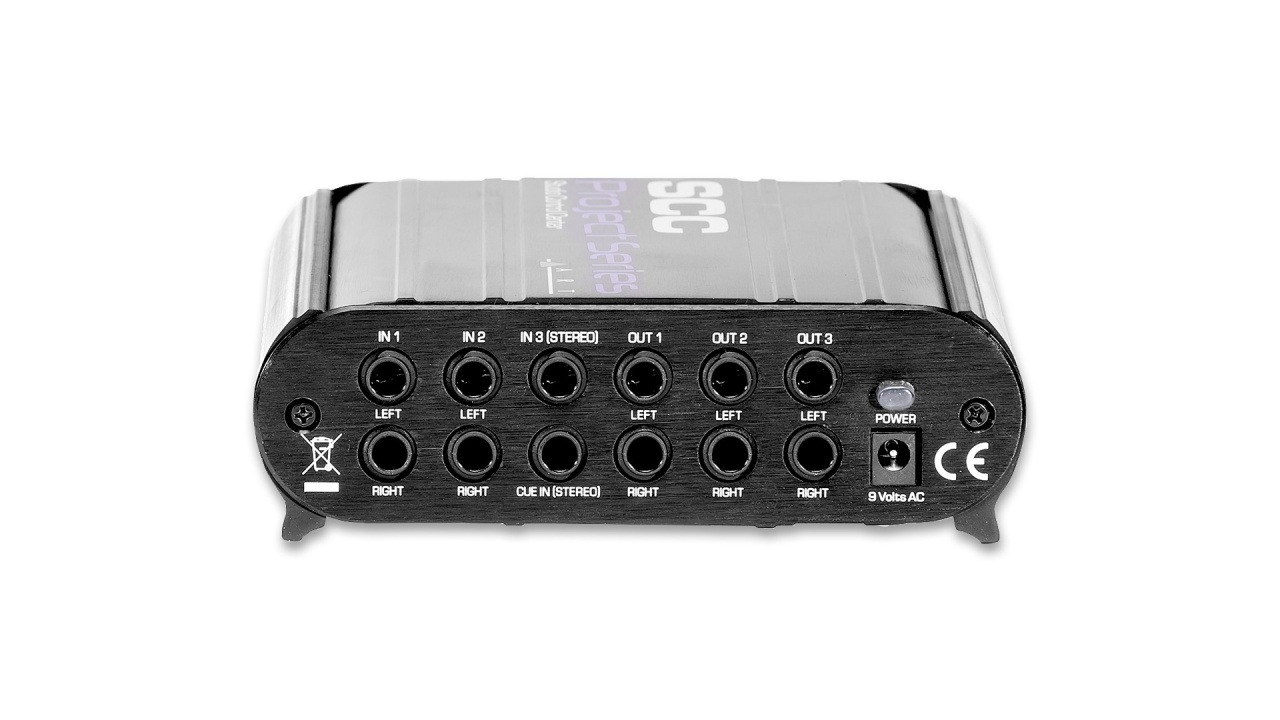

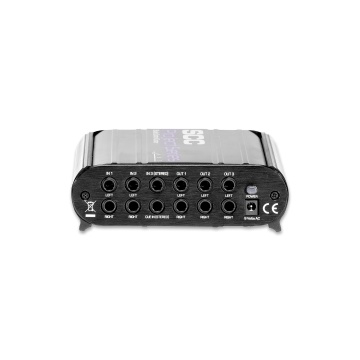

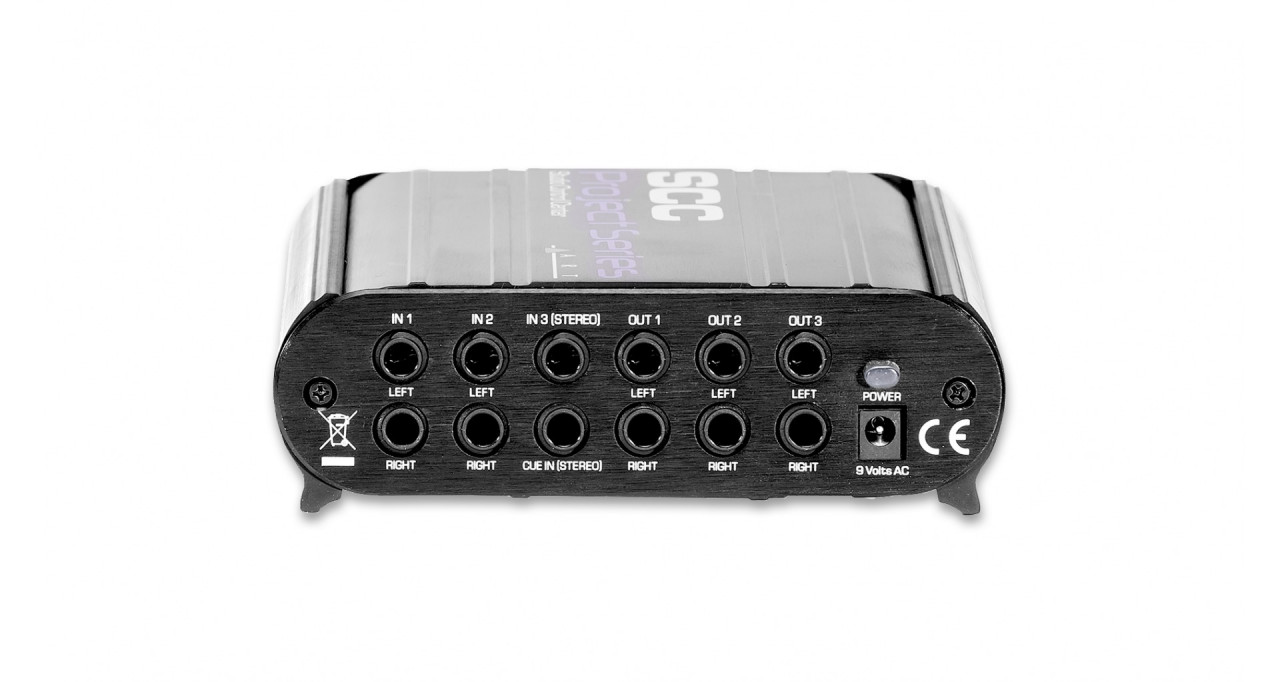

Output Connectors OUT1-OUT3: 1/4-inch Balanced TRS
Chassis Type All aluminum black anodized with rubber sides
Power Requirements 9VAC @ 1000mA (external)
Dimensions 1.75&Prime.H x 5.9&Prime.W x 6.5&Prime.D (44.5mm x 150mm x 165mm)
Weight 2.5 lbs (1.14 kg) with power supply and packaging
Notes 0 dBu = 0.775Vrms
