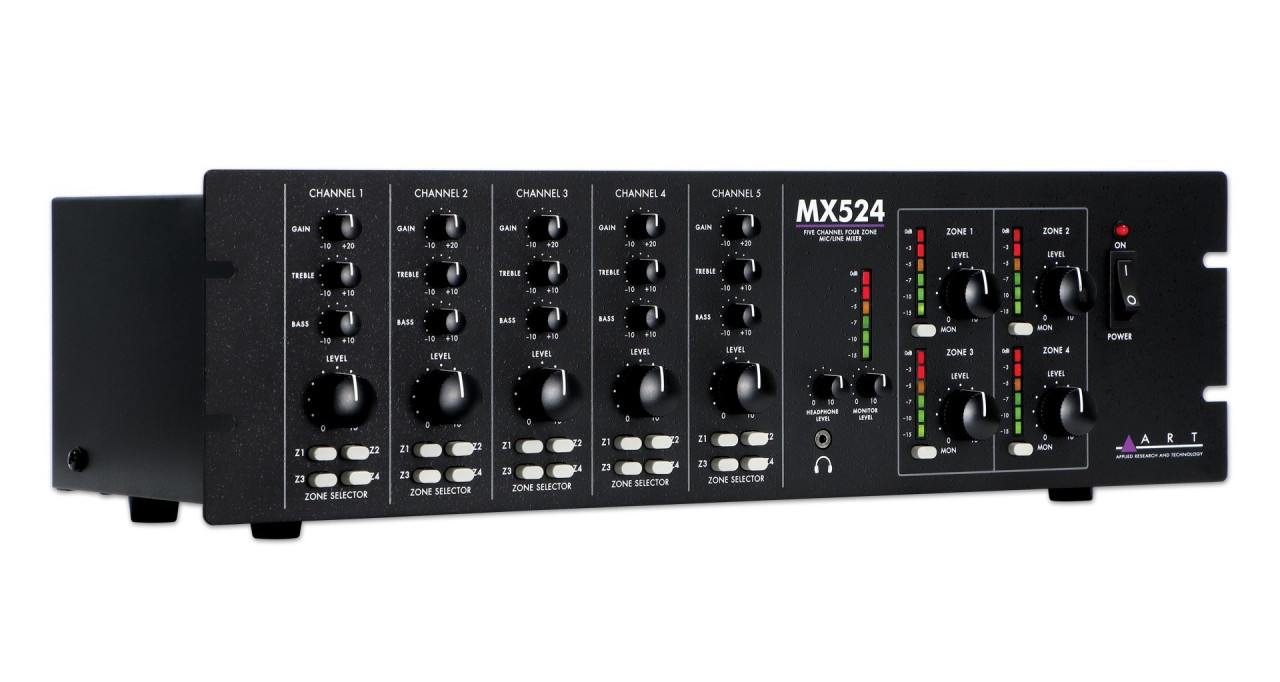

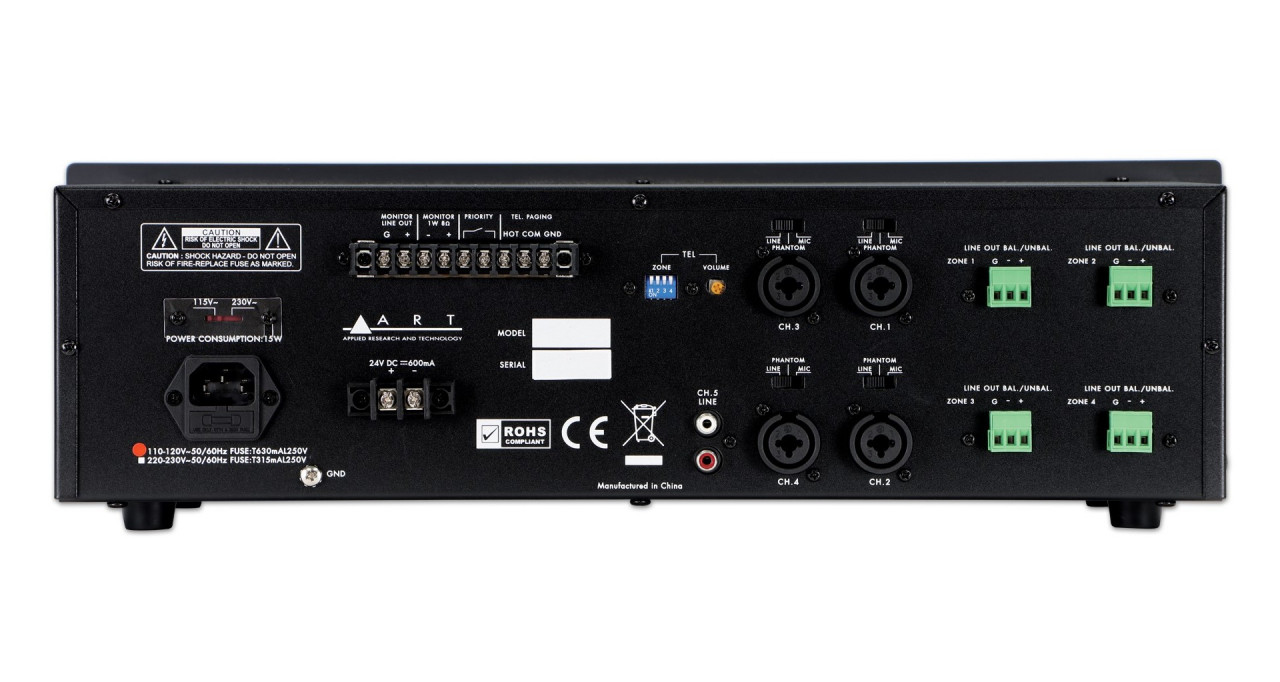

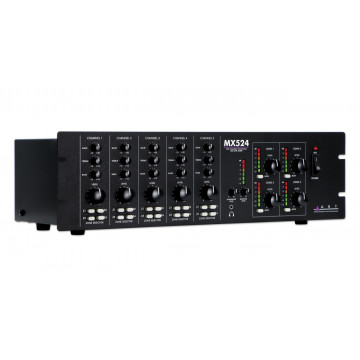

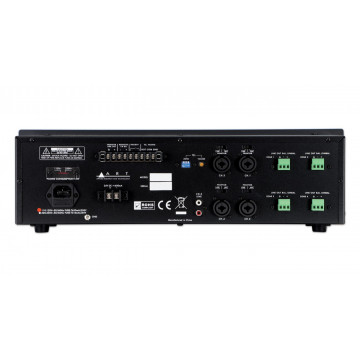

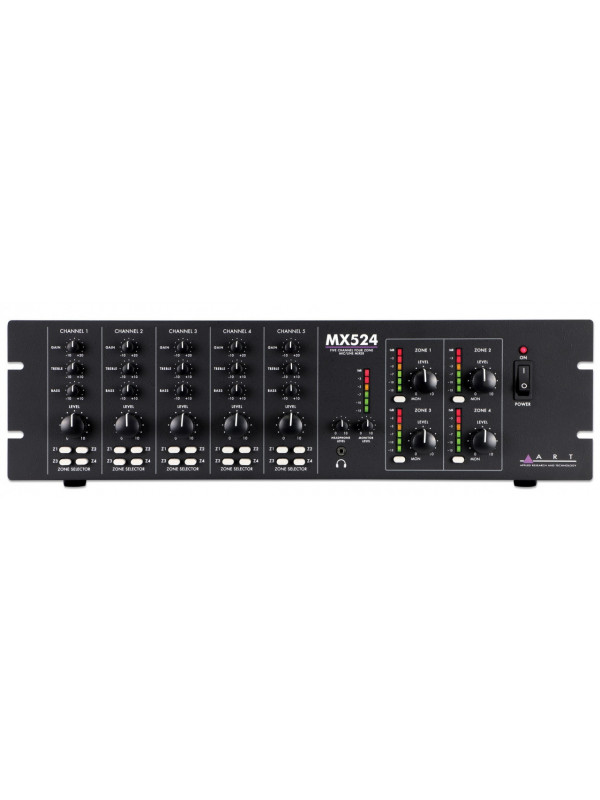

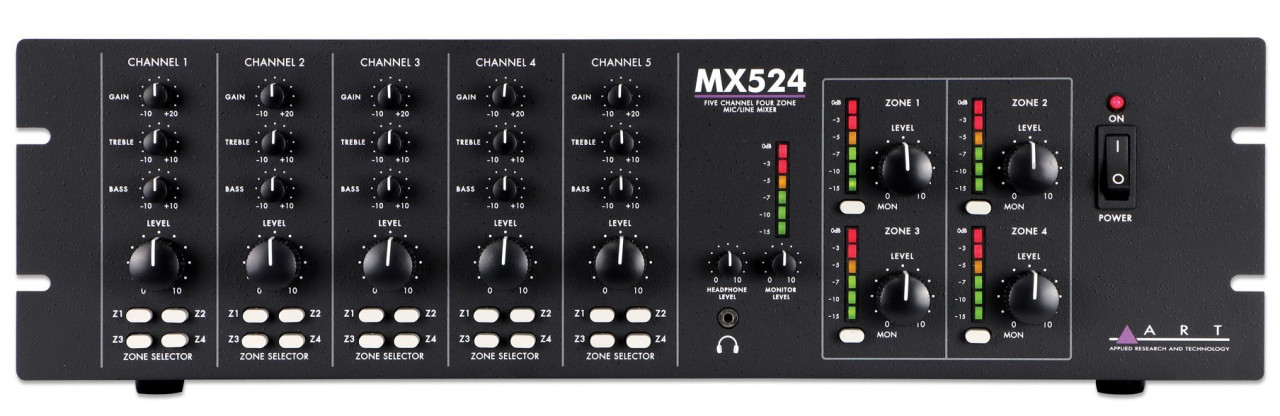

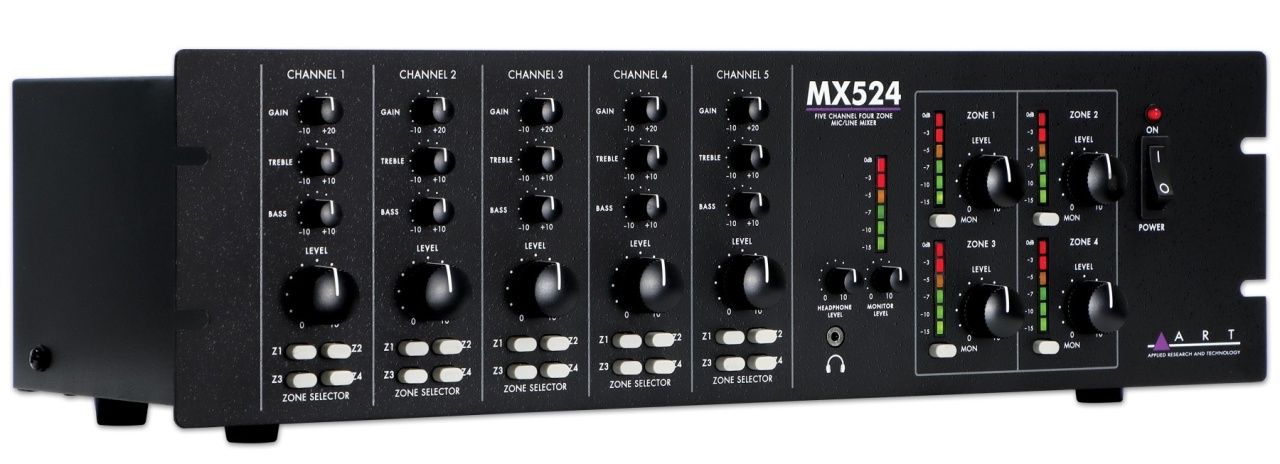

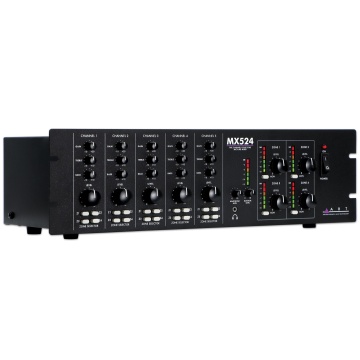

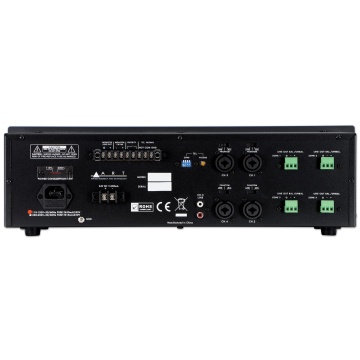

ART MX524 - Mixer Audio 4 Zone

Descriere

Mixer profesional cu 5 canale si 4 zone, usor de instalat si folosit in rack, atat in studio cat si pe scena. Incinta este realizata din otel si are un design 3U.

Specificatii:

Frequency Response 20 Hz &ndash. 22kHz ± 2 dB

Max. Input Gain

60dB CH MIC. Input Main out (XLR, balanced)
50dB CH MIC. Input & REC. out (unbalanced)
60dB CH MIC. Input Mic. out (unbalanced)
60dB CH MIC. Input Mono out (unbalanced)

THD&N

<.0.03% @1kHz

Impedance

Microphone input: 1.4k&Omega.
All other inputs 10k&Omega. or greater
Zone outputs 120&Omega.
Monitor Speaker output 8&Omega.
Monitor Line output 120&Omega.

Phantom power

48VDC

EQ

Low: ± 10 dB &ndash. 100 Hz
High: ± 10 dB &ndash. 10 kHz

Zone Outputs

+26dB (Balanced)

Monitor Line Output

+15dB (Unbalanced)

Monitor speaker output

1 W rms / 8 &Omega.

Headphone output

0.5 W rms / 47 &Omega.

Connectors

Inputs: Combo XLR/¼. Jacks, RCA
Outputs: Euroblock, Screw terminals

Power Requirements USA

110~120VAC 50/60Hz or 24VDC
Export units configured for country of destination

Dimensions (HWD)

5.1-inch x 19-inch x 7.5-inch
130mm x 483mm x 191mm

Weight

6.63 lbs. (3.0 kg)
