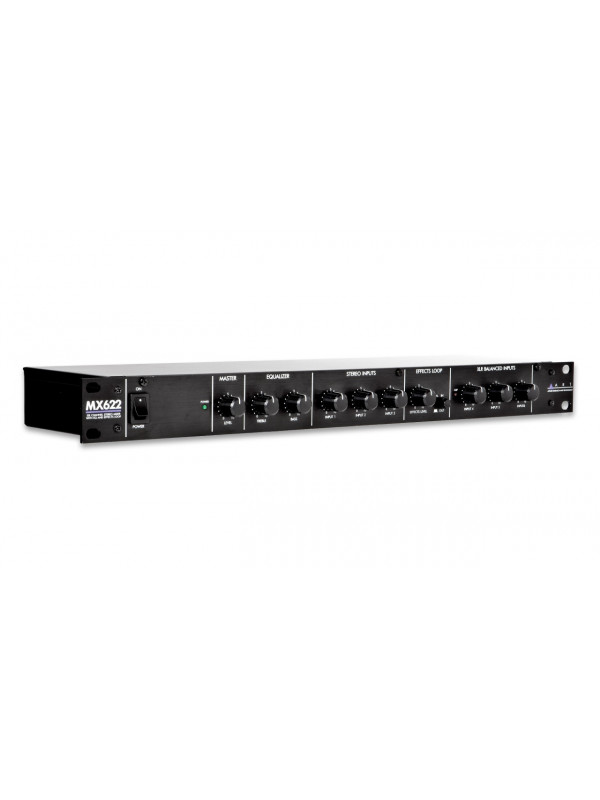

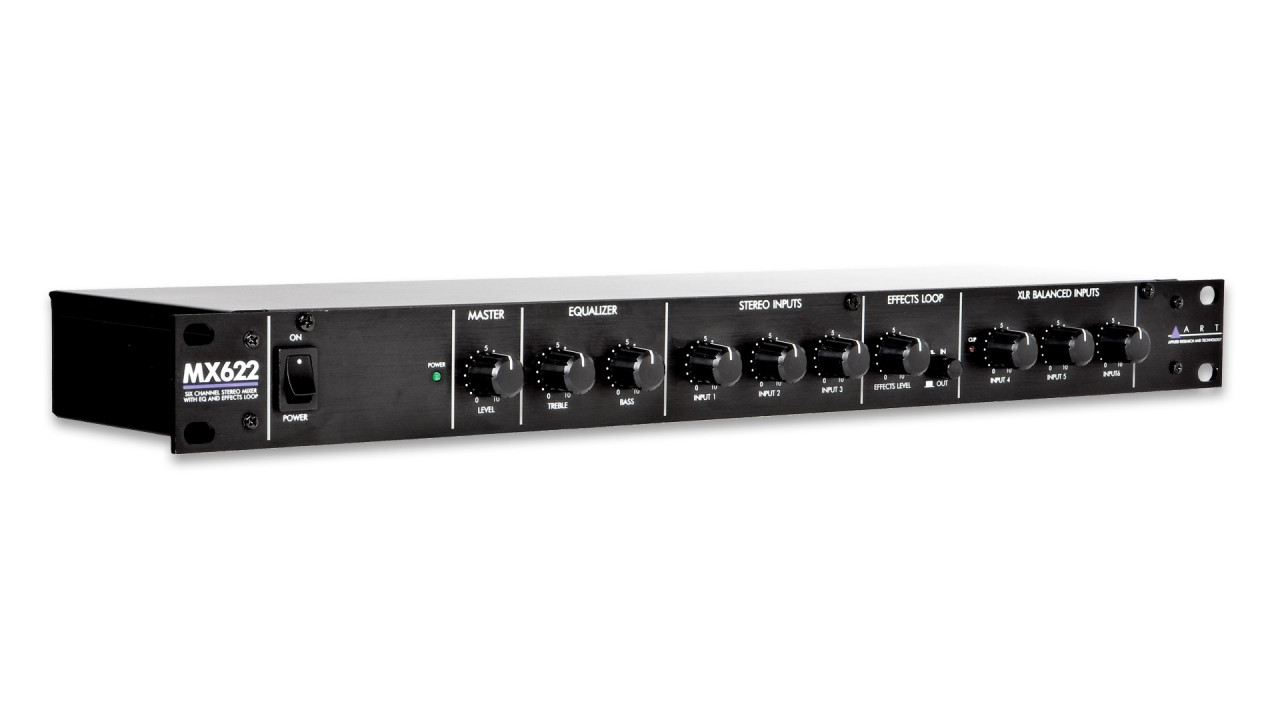

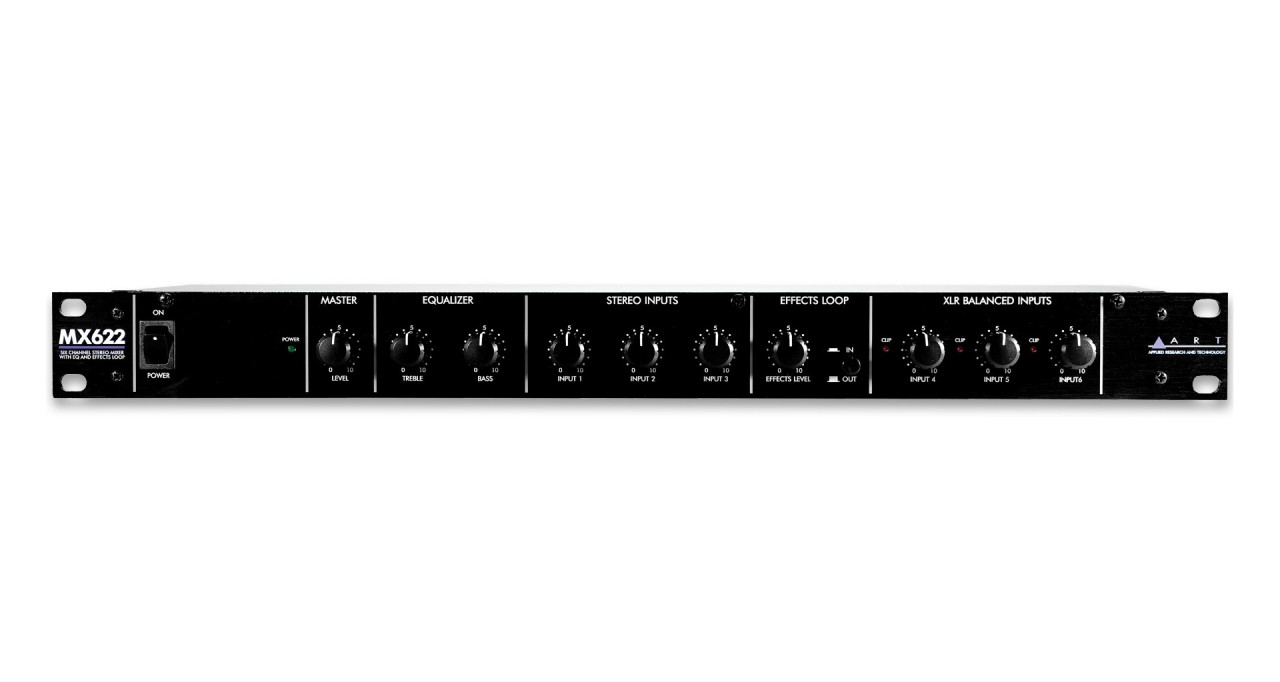

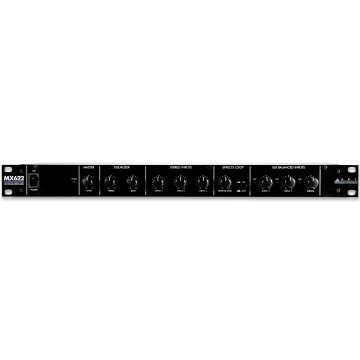

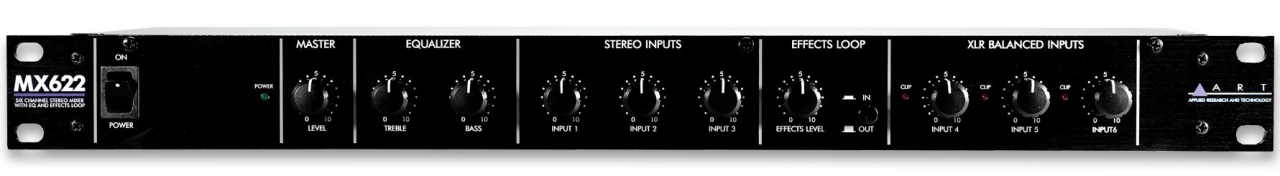

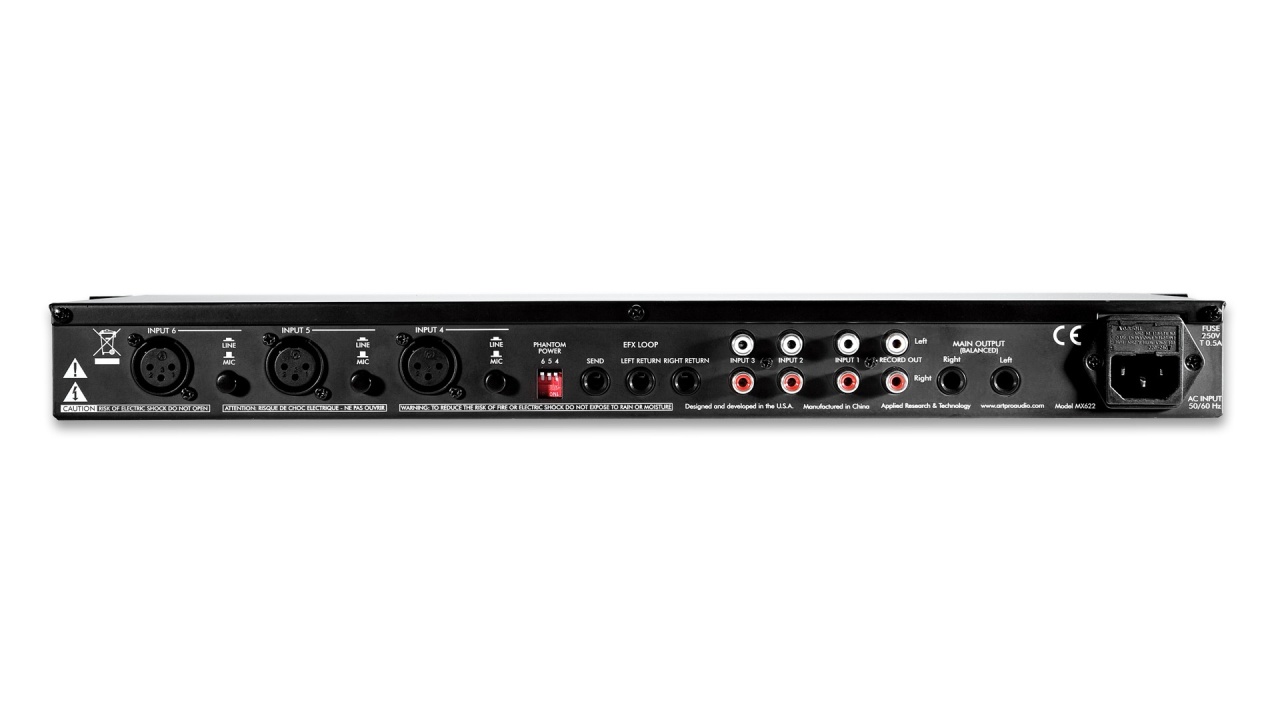

ART MX622 - Mixer de rack cu EQ/EFX Loop

Descriere

ART MX622 este un mixer stereo de rack cu 6 intrari. Acesta este dotat cu effects loop integrat (mono send si stereo return), iesiri stereo independente, iesiri stereo balansate TRS 1/4-inch si egalizator cu 2 benzi.

Specificatii:

Input Connections XLR-F balanced (x3)
1/4-inch unbalanced (x2)
3 pairs stereo RCA (6 total)
Output Connections TRS balanced 1/4-inch (x2)
1/4-inch unbalanced (x1)
RCA (x2)
Input Impedance 600/22K &Omega. mic/line XLR inputs / 10K &Omega. RCA inputs / 22K &Omega. 1/4-inch effects returns
Output Impedance 50 &Omega. 1/4-inch main outputs / 1K &Omega. RCA record outputs / 100 &Omega. effects output
Total Harmonic Distortion .01% Typical
Signal to Noise Ratio >. 90dB typical
Maximum Input Level -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
Maximum Output Level +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
Maximum Gain 56dB/26dB mic/line / 26dB RCA inputs
Phantom Power +15Volts DC (regulated / low noise)
Power Requirements USA &ndash. 105 to 125 VAC / 50-60Hz, 15 W typical
Equalizer Range +/-12dB @ 100Hz & 10kHz
Dimensiuni: 44.5mm x 483mm x 152mm
Greutate: 2.8 kg
