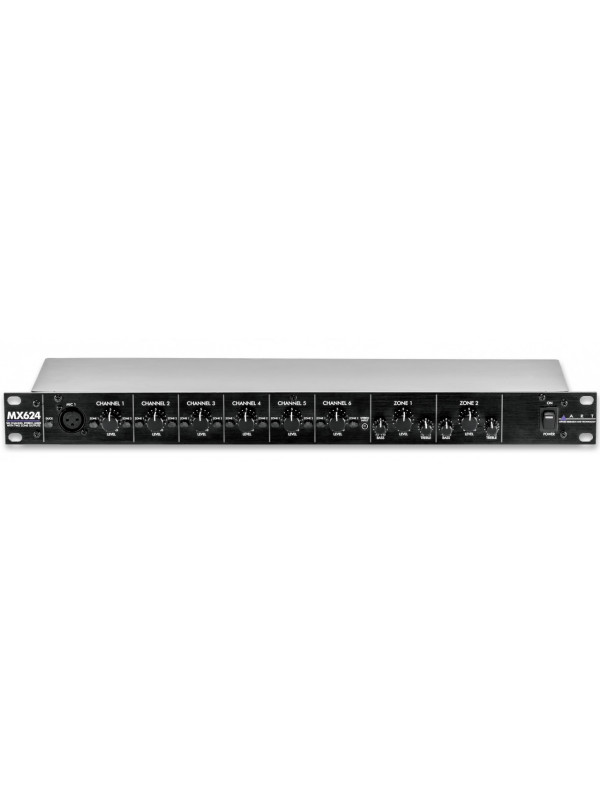

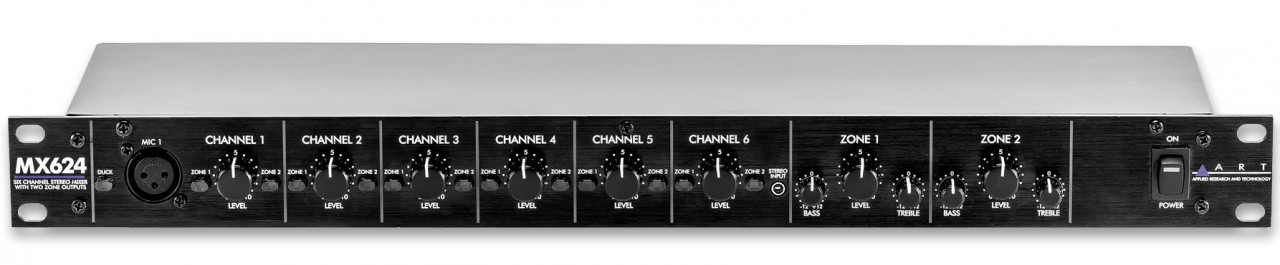

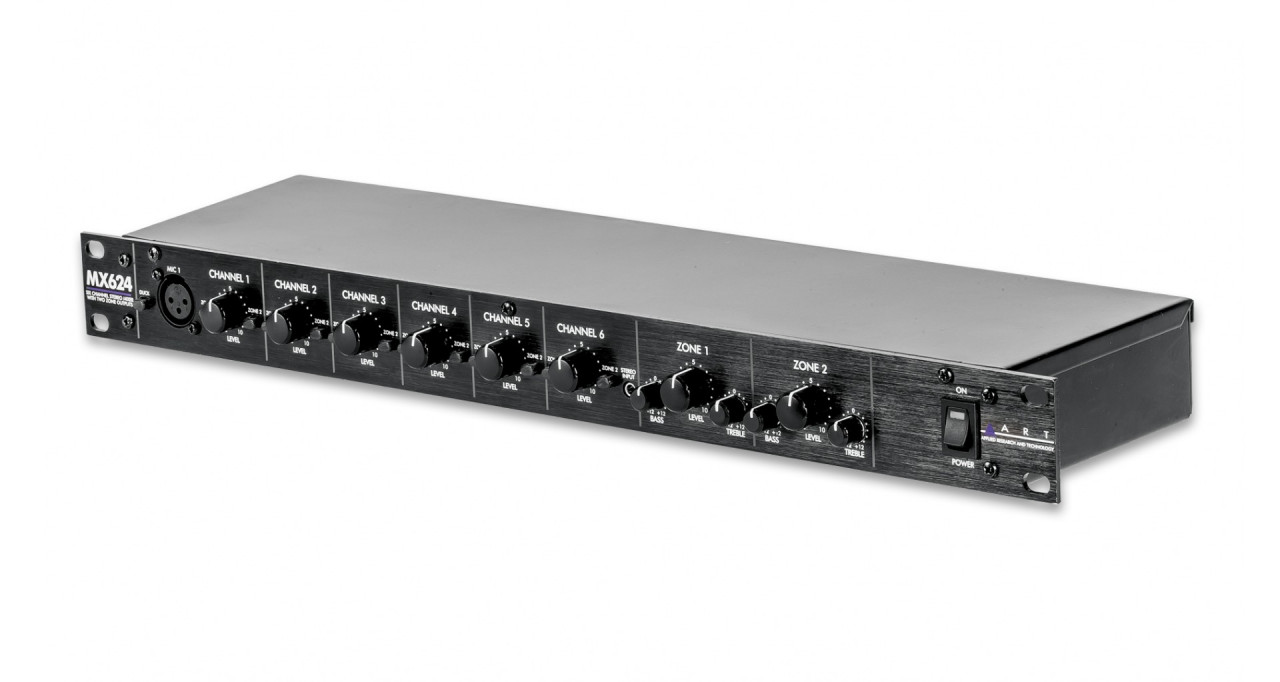

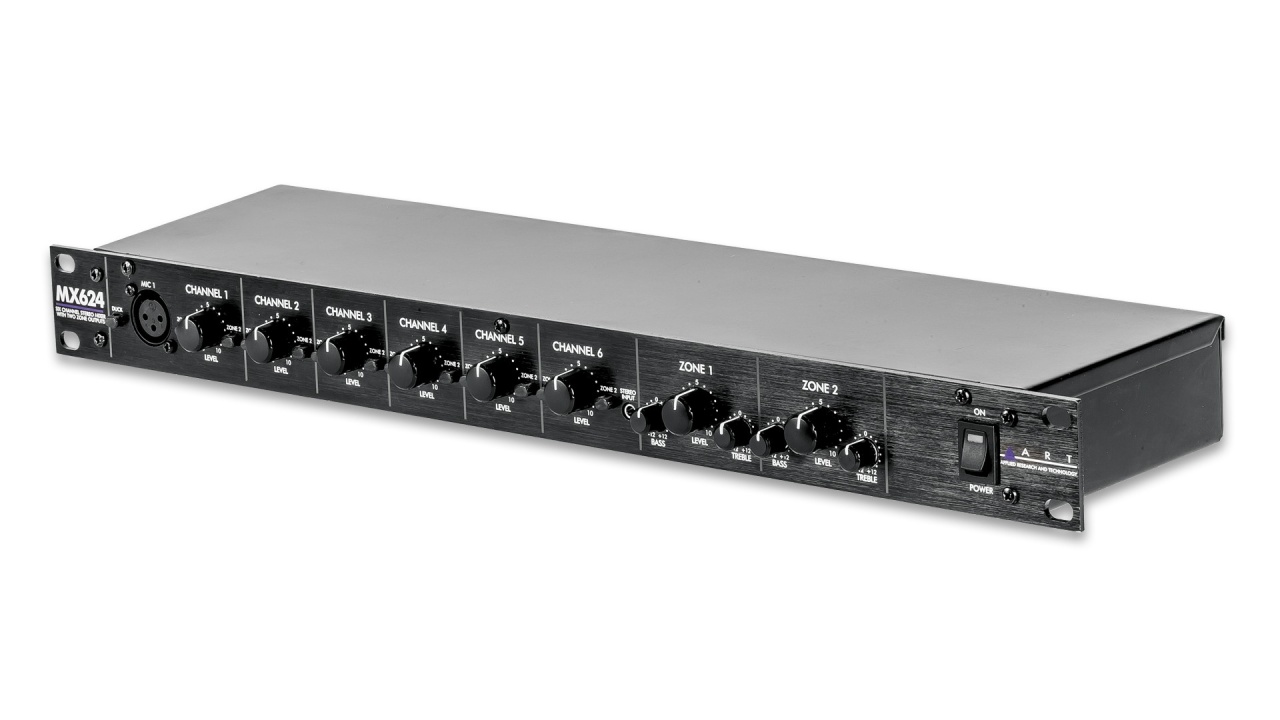

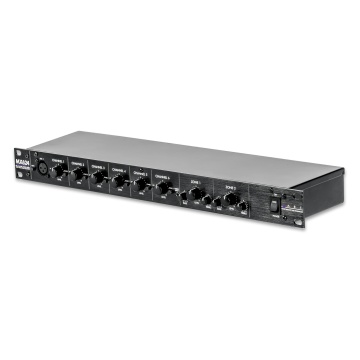

ART MX624 - Mixer cu 2 zone

Descriere

MX624 este un mixer stereo cu doua zone si 6 intrari, ideal pentru aplicatii precum studio, cluburi sau restaurante unde distribuirea a doua semnale independente este necesara.

Specificatii:

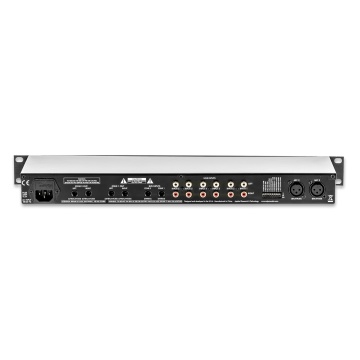

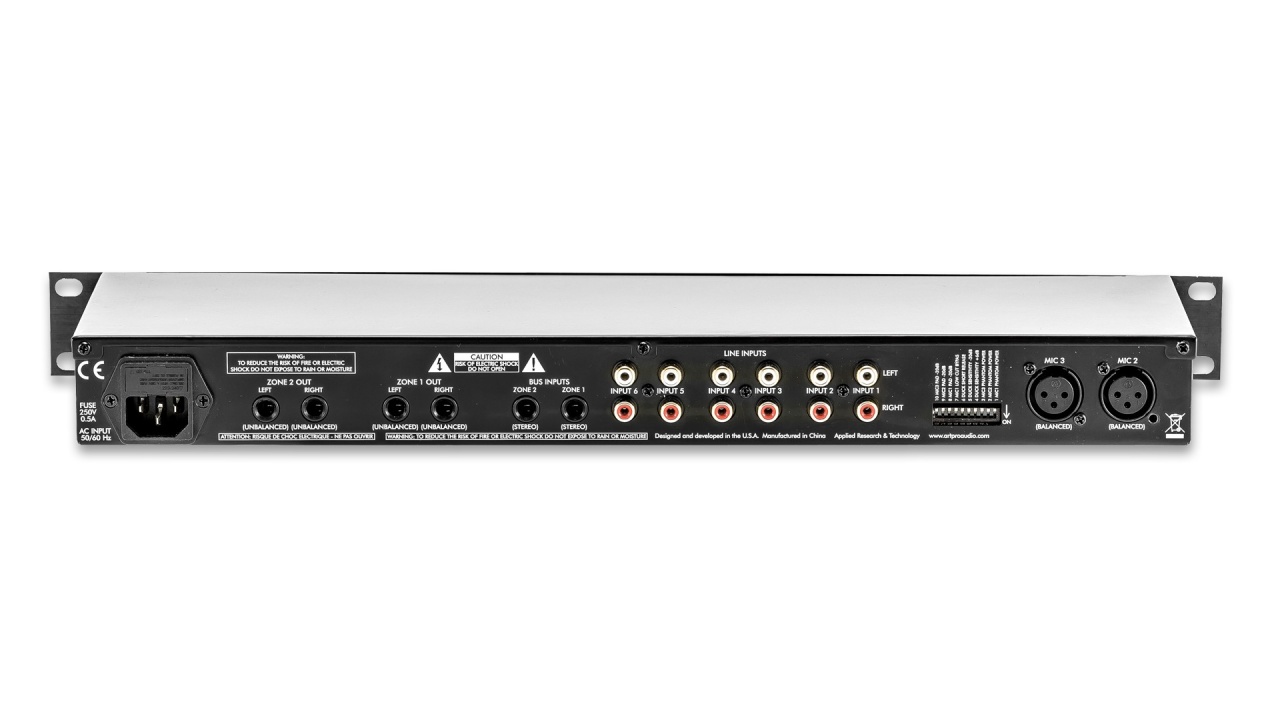

• Input Connections: XLR female balanced (Mic, channels 1-3), RCA unbalanced (Line Inputs 1-6, Left & Right), 1/4-inch TRS unbalanced stereo (Bus Inputs, Zone 1 & 2)
• Output Connections 1/4-inch TS unbalanced (Zone 1 & 2 Out, Left & Right)
• Input Impedance 4k Ω (Mic), 10k Ω (Line), 10k Ω (Bus)
• Output Impedance 200 Ω (Zone 1 & 2)
• Frequency Response 20 Hz – 20 kHz (+0, -1 dB) (channels 1-6 in, zone out)
• Total Harmonic Distortion <0.01% @ 1 kHz, typical
• Phase Response All connections are phase coherent
• Signal to Noise Ratio >90 dB typical (Ref 0dBu)
• CMRR >43 dB typical
• Maximum Input Level -4 dBu, +16 dBu with 20 dB pad (Mic), >25 dBu (Line)
• Maximum Output Level +20 dBu (unbalanced)
• Maximum Gain 57 dB (Mic), 31 dB (Line)
• Ducking Threshold -49.5 dBv (adjustable via rear-panel dipswitches)
• Ducking Depth 15 dB
• Tone Controls +/-12 dB @ 100 Hz & 10 kHz
• Phantom Power Switch selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg
• Dimensions 1.75″H x 19″W x 6″D (44.5mm x 483mm x 152mm)
• Weight 4.9 lbs (2.2 kg)
