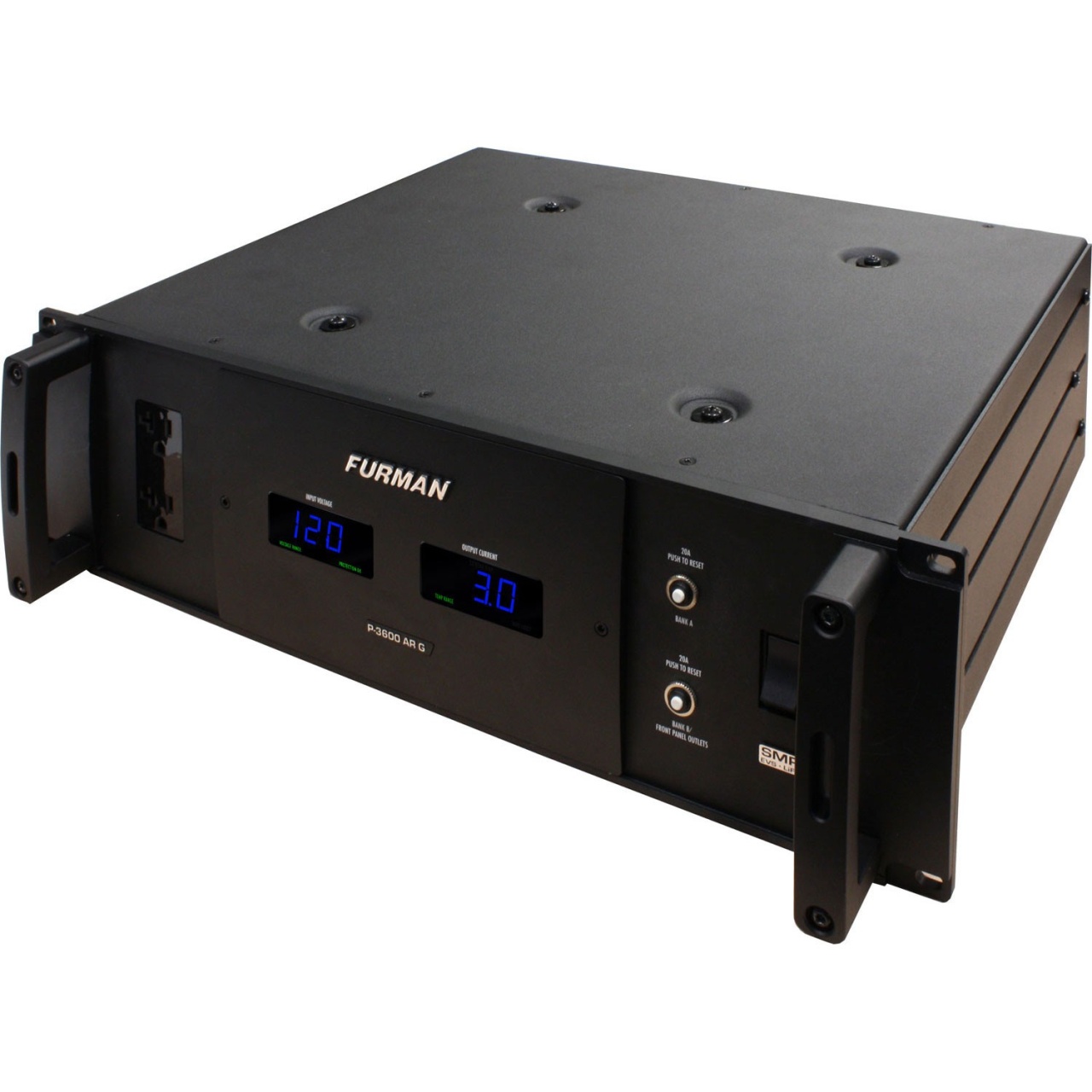

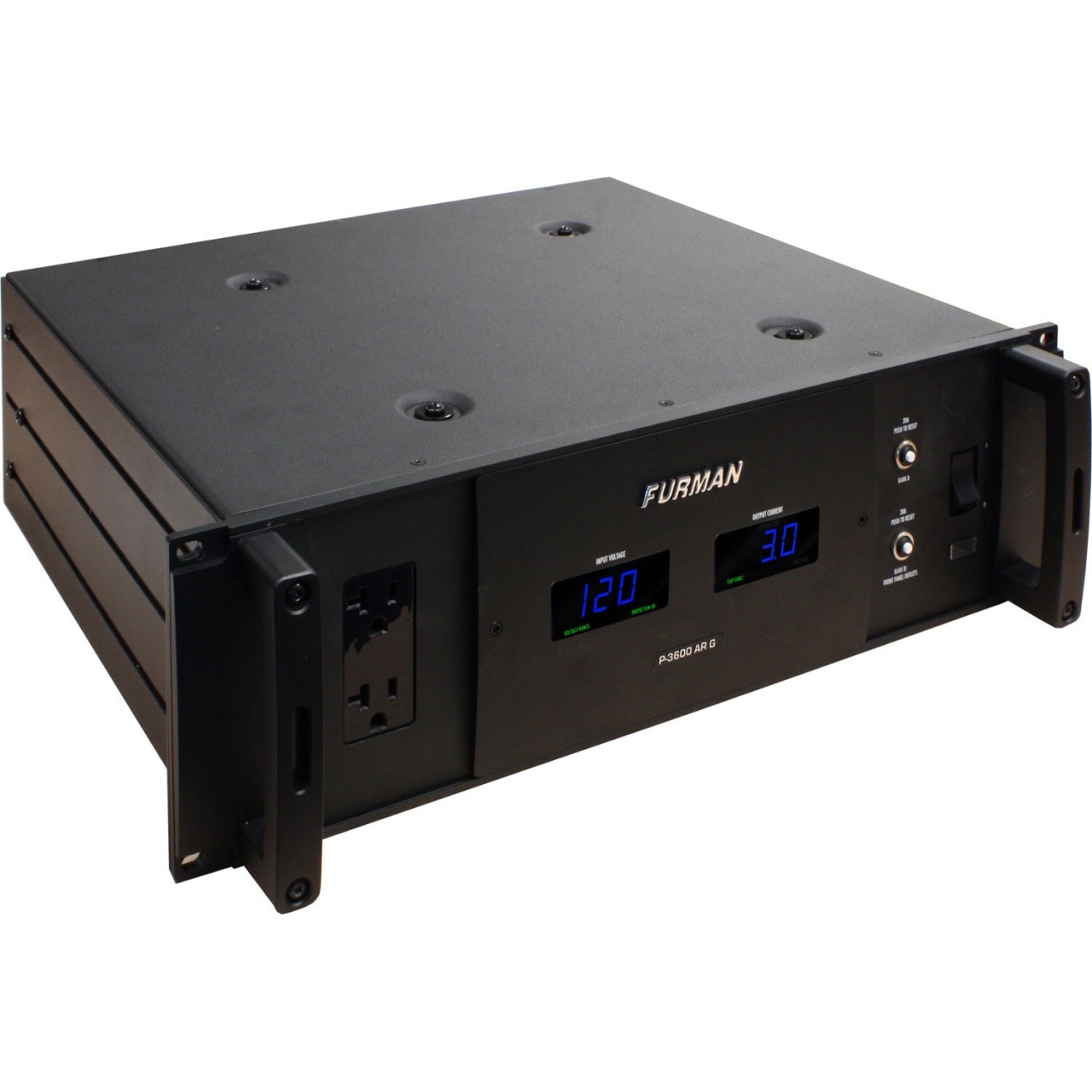

Furman P-3600 AR G - Power Conditioner, 30A, Global Voltage Regulator
Descriere
Prestigiosul P-3600 AR G este un regulator de tensiune ce ofera o solutie unica in managementul curentului electric pentru profesionistii A/V din intreaga lume. P-3600 AR G asigura o sursa stabila de curent pe 120V sin orice intrare de curtent de la 100V la 127V sau de la 208V la 240V.
.Aparatul furnizeaza echipamentului conectat de 120V cu tensiune stabila, protectie electrica si filtrare AC, ideala pentru utilizarea cu angrenaj A / V de 120 V atunci cand calatoriti in tari cu servicii de 100 V, 220 V, 230 V sau 240 V.

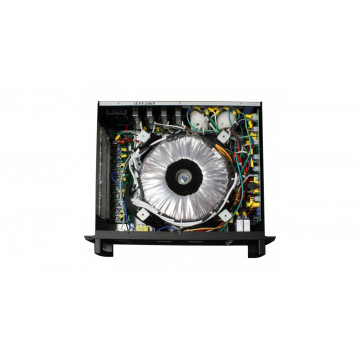

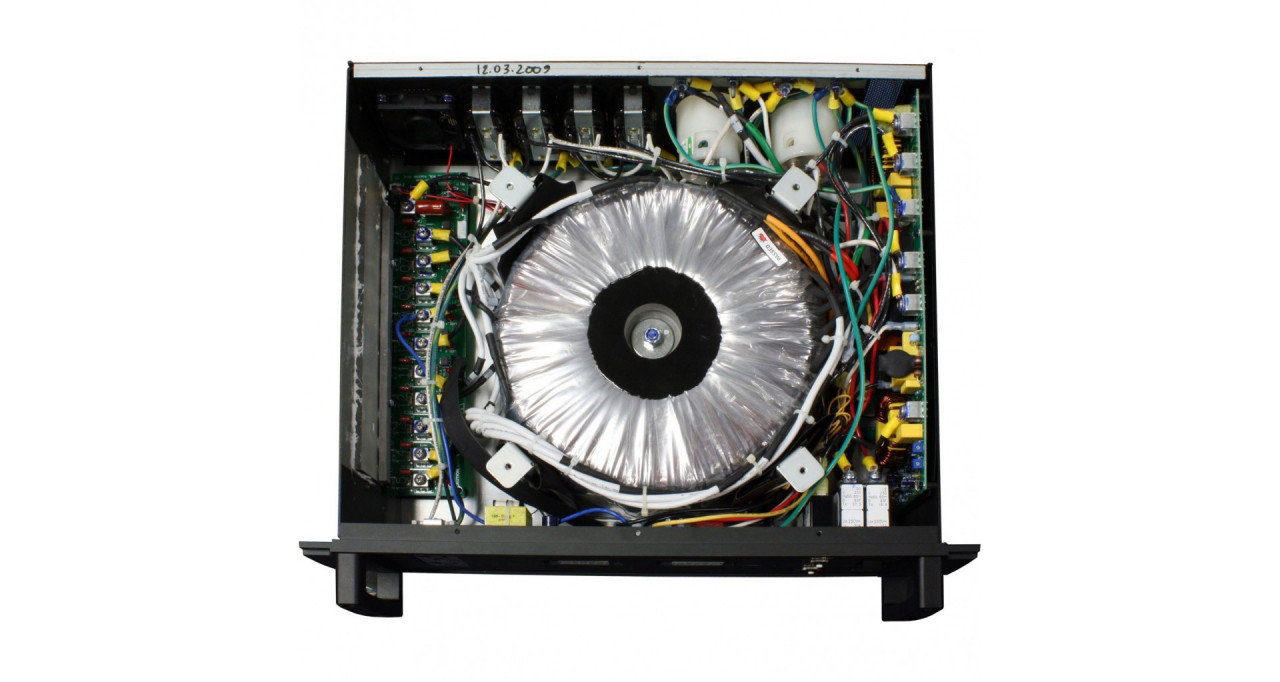

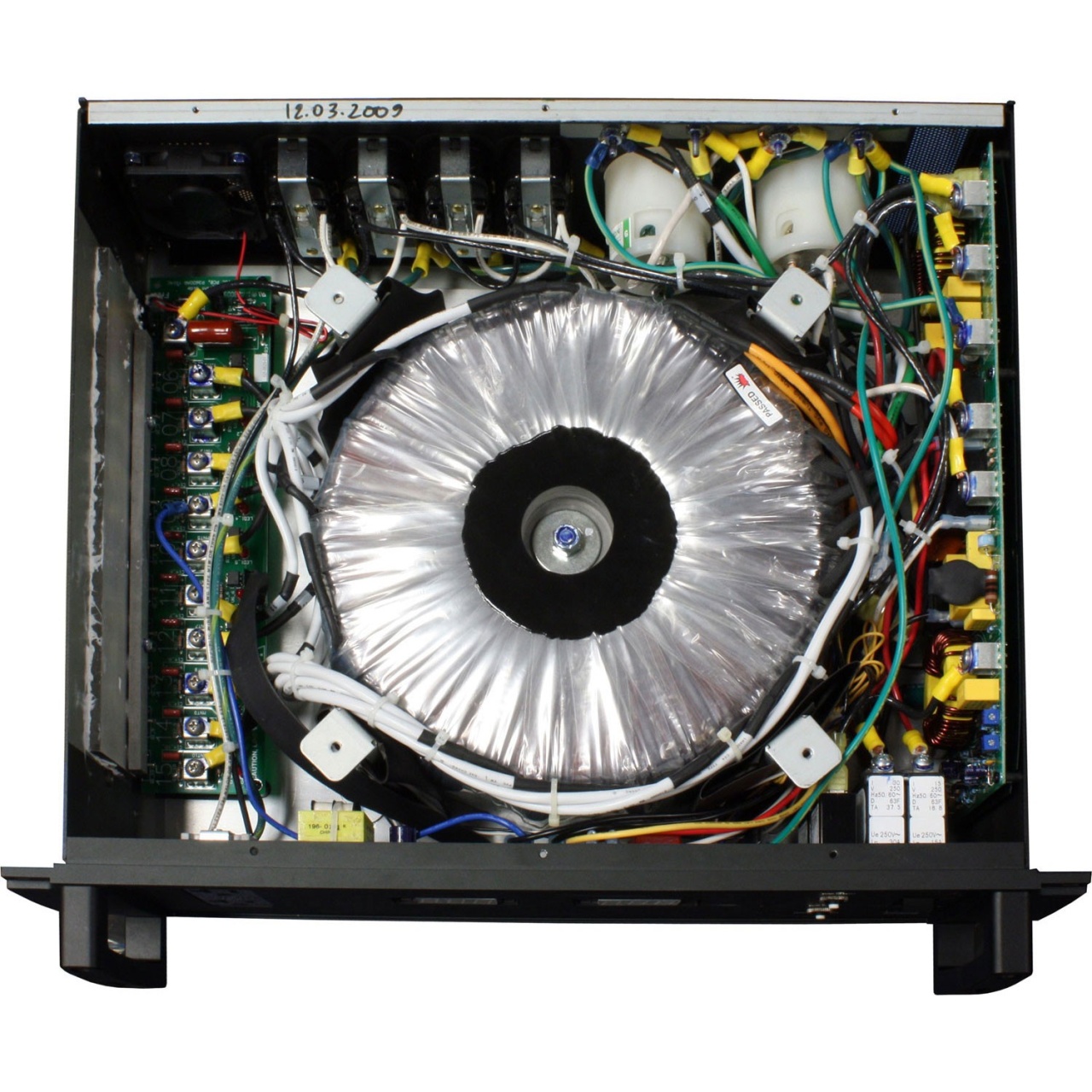

Predecesorul P-3600 AR G, Furman AR-PRO, a fost un produs indispensabil pentru multi utilizatori profesionisti. Modelul actualizat include tehnologia True RMS de la Furman (folosind un transformator / autoformer de izolare torodala ultra-joasa, TRIAC-uri de comutare cu curent ridicat si control de micro-procesare) la tensiuni de intrare pas cu pas sau in trepte. Unitatea ofera, de asemenea, tehnologii exclusive FFT pentru LiFT / SMP / EVS pentru protectia la nivel profesional si pentru filtrarea liniara a zgomotului AC.
Aceste caracteristici, impreuna cu capacitatea de iesire P-3600 AR G de 30A si gama larga de captare a tensiunii de intrare, o fac o solutie unica printre alte regulatoare de tensiune / regulatoare de tensiune portabile si o alternativa fiabila, specifica unei aplicatii tipice sau unei aplicatii alternative step-up/step down.
Specificatii:
Cu iesire regulata de 120 V la sursa de alimentare de 100-127 si 208-240 V
Ocupa 3U in rack
Greutate: 44.5 kg
Functii:
- Global True RMS Voltage Regulation
- Delivers a stable 120 volts of AC power (from any voltage source between 88V-134V and 170V-265V) to protect equipment from problems
- Surge Protection
- Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- Large LED Voltmeter
- Large LED voltmeter displays incoming line voltage.
- Large LED Ammeter
- Large LED ammeter displays output current draw.
- 30 Amp Rating
- 30 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
- 11 Total Outlets

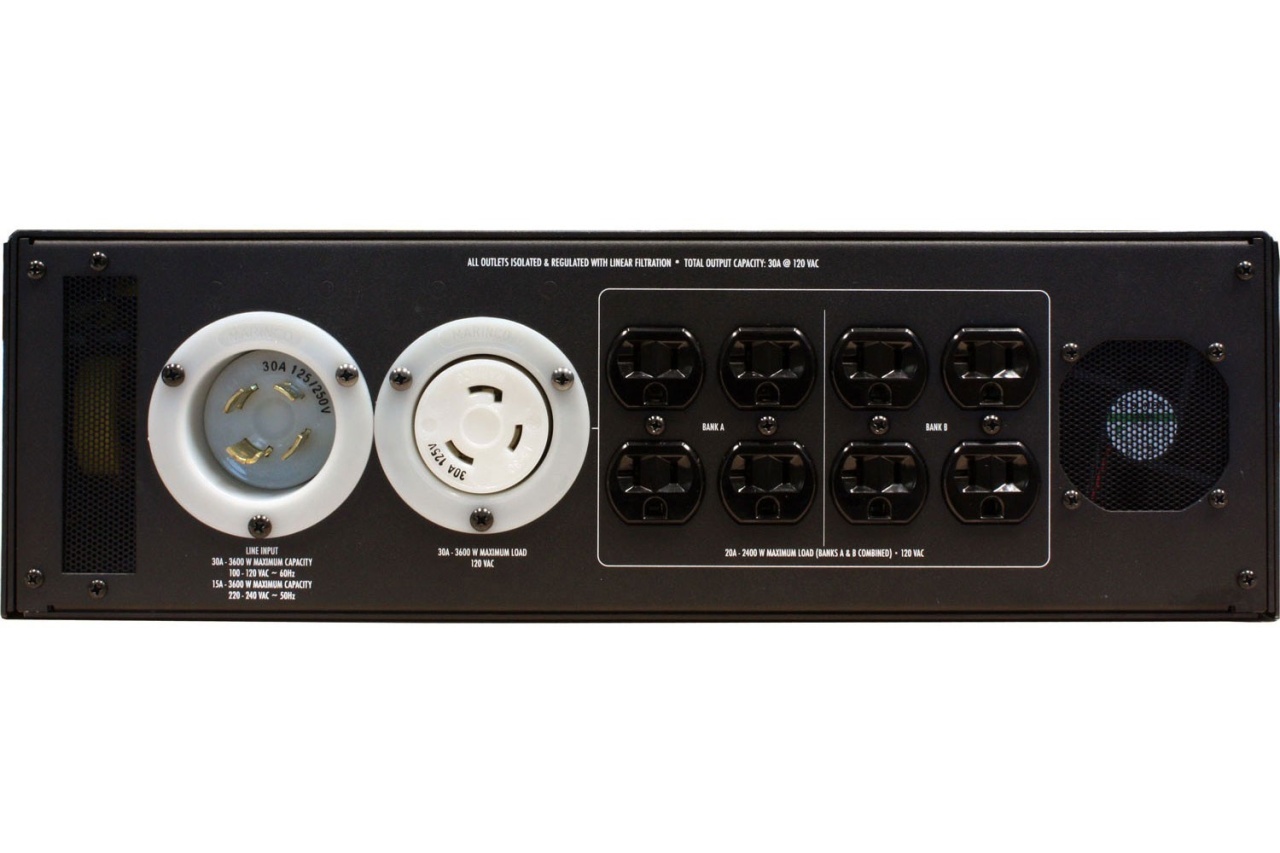

- 11 total outlets (nine rear panel outlets and two front panel convenience outlet).
Specificatii:
General
• FamilyPrestige Series
• Line Voltage120 (Volts)
• Number of Outlets11
• Number of Isolated Banks0

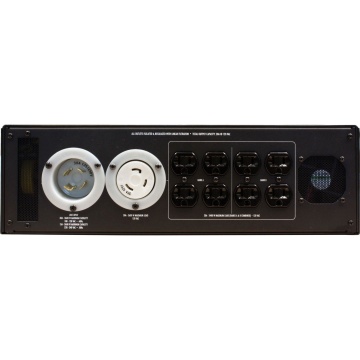

• Outlet DescriptionsAll 11 outlets regulated, protected, and filtered. Rear panel: (8) 20 amp outlets and (1) 30amp outlet. 2 front panel 20 amp convenience outlets.
• Rack MountableYes
• Rack Ears IncludedYes

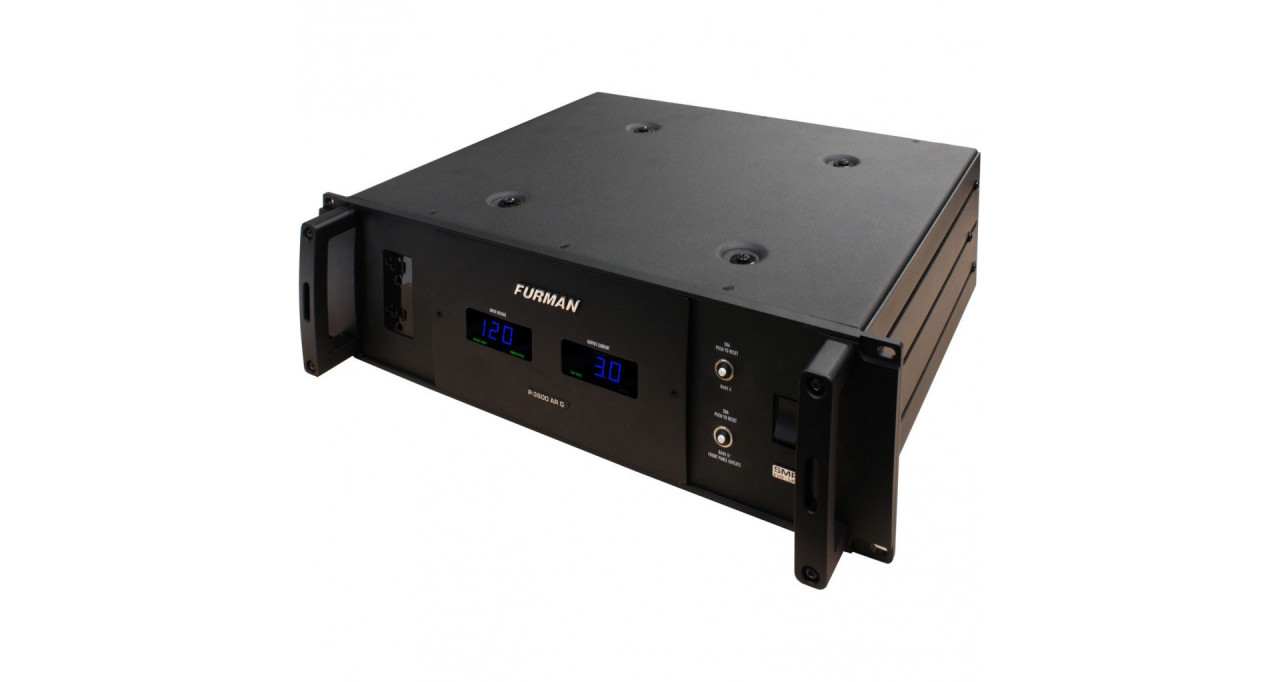

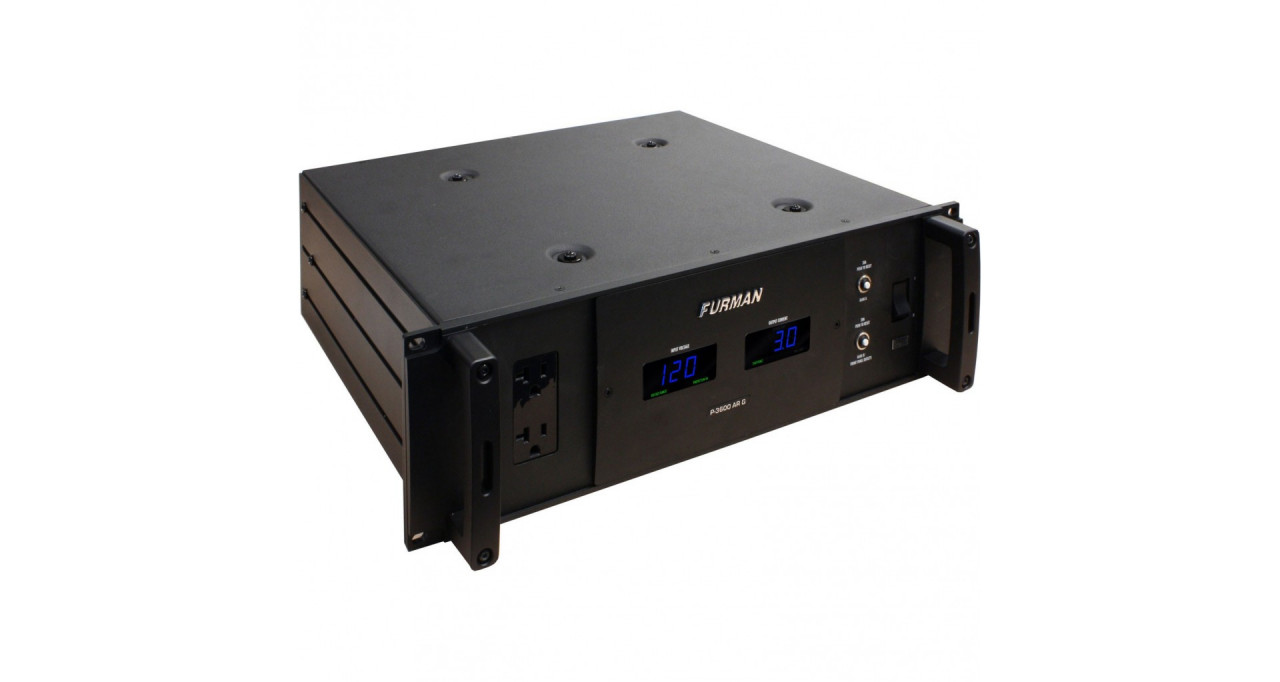

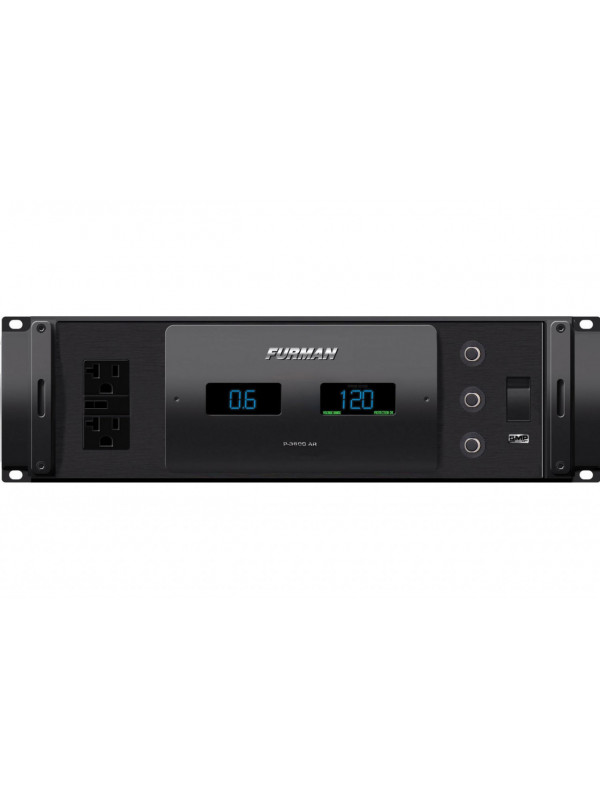

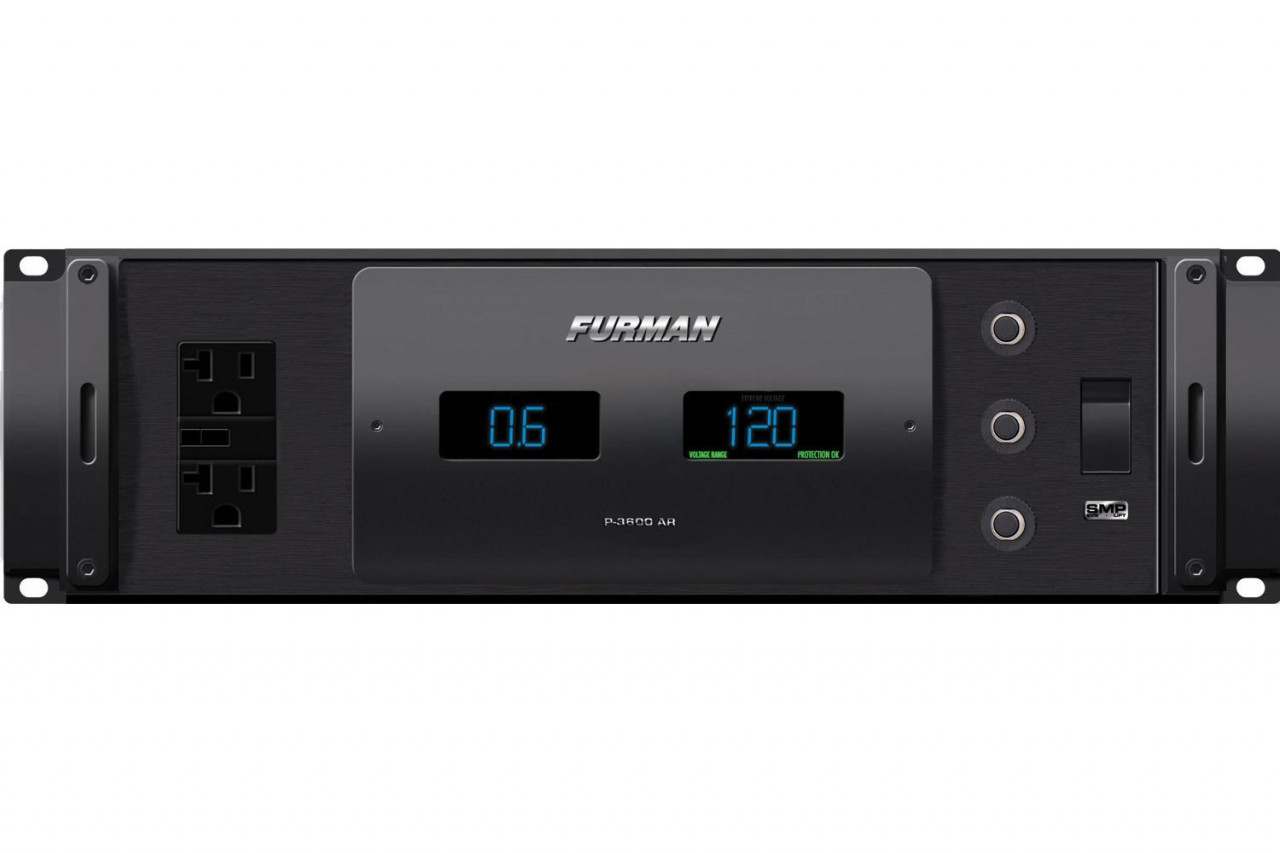

• Front Panel Meter(s)LED voltmeter displays incoming line voltage, LED ammeter displays output current draw.
• Front Media Light(s)No
• ControlFront panel: - On/Off switch - Outlet bank reset buttons
• Voltage Regulation Regulation capture range: (LOW) 88-133 VAC @ 50/60Hz (HIGH) 170-265 VAC @ 50/60Hz
• CompliancecTUVus
• USB ChargingN/A
• Low Voltage TriggerN/A
• AC Power CordL-14 male twistlock inlet (twistlock cable-mount connector included)
• Dimensions19" W x 14.25" D x 5.25" H
• Weight 98 lbs
AC Protection
• AC Protection TechnologyGlobal True RMS Voltage Regulation Extreme Voltage Shutdown Series Multi-Stage Protection Non-sacrificial protection with zero ground contamination
• Over-Voltage Shutoff145 VAC Nominal (120VAC Input) 275 VAC Nominal (240VAC Input)
• Maximum Current Rating30 (Amps)
• Initial Clamping Level191V Peak @ 3,000 Amps
Filtration
• Filtration TechnologyLiFT
• Filtration Rating
-10 dB @ 10KHZ -40 dB @ 100 KHZ -55 dB @ 500KHZ
• Signal Line ProtectionNo
Shipping Info
• Length24 (Inches)
• Width23 (Inches)
• Height13.5 (Inches)
• Weight110 (Lbs)
• Unit of MeasureEach
• UPC654061028215
• Master Pack Qty1
Other Specifications
• Response Time:1 Nanosecond
• Maximum Surge Current:6,500 Amps
• AC Input:L-14 Male Twistlock Inlet (Twistlock Cable-Mount Connector Included)
