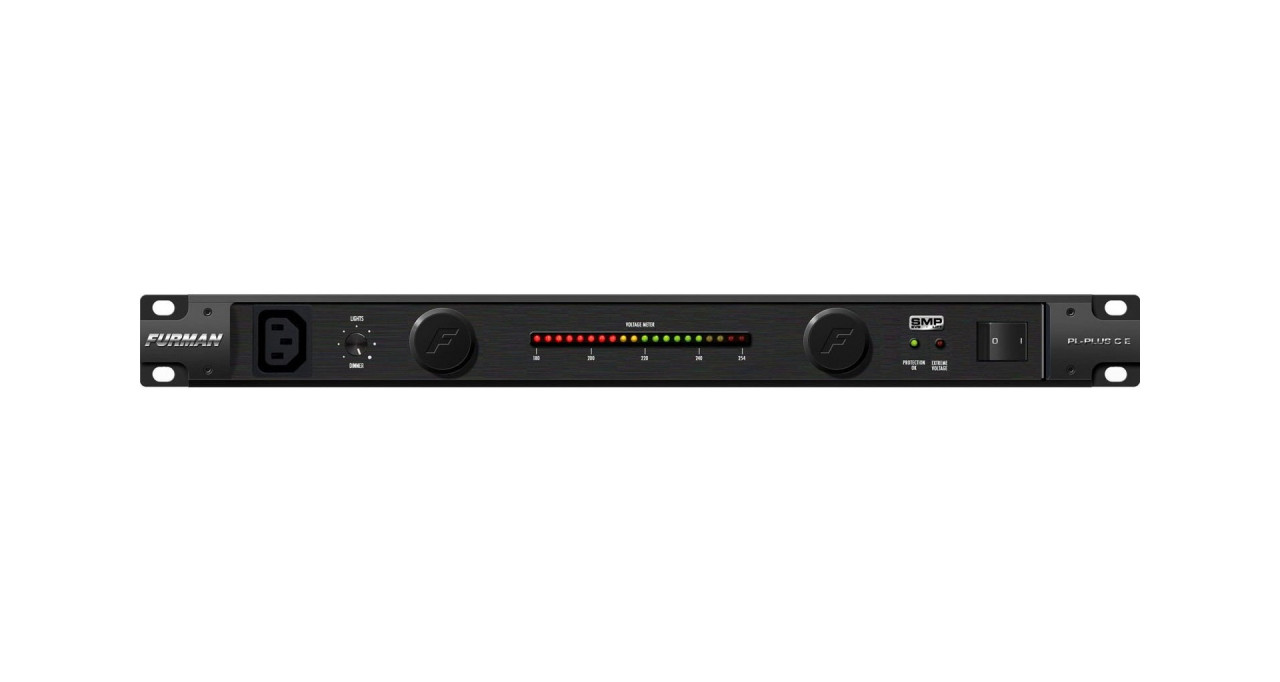

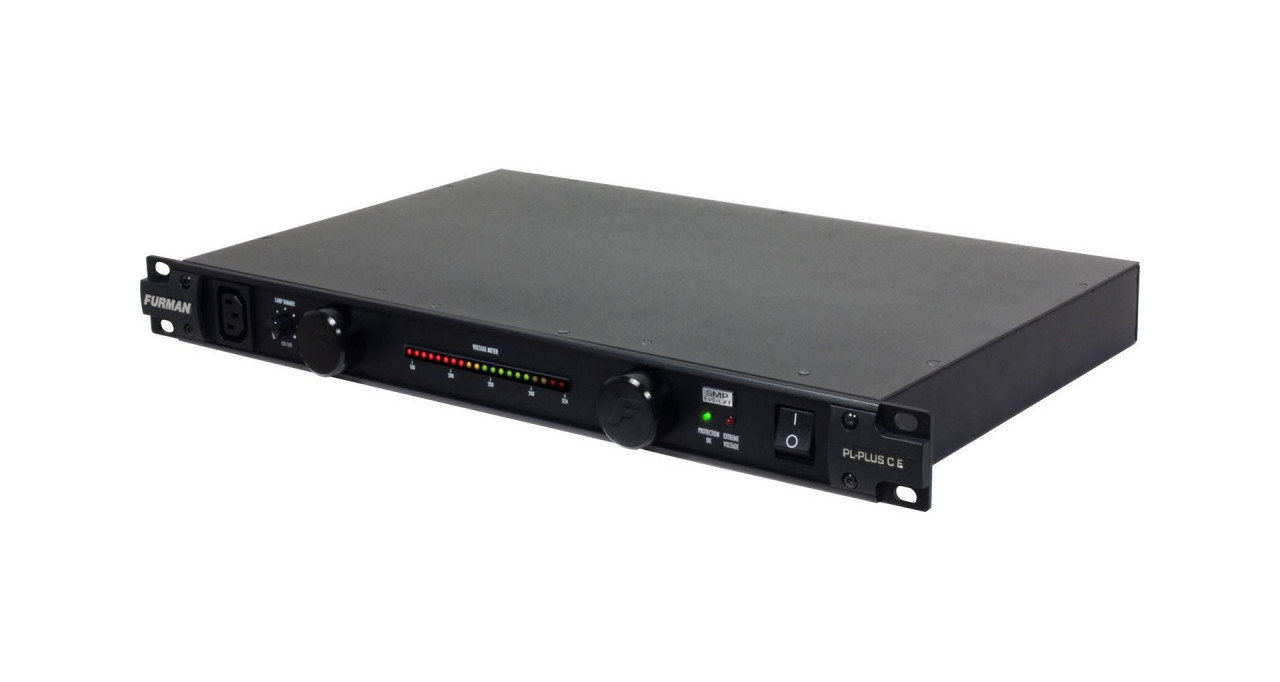

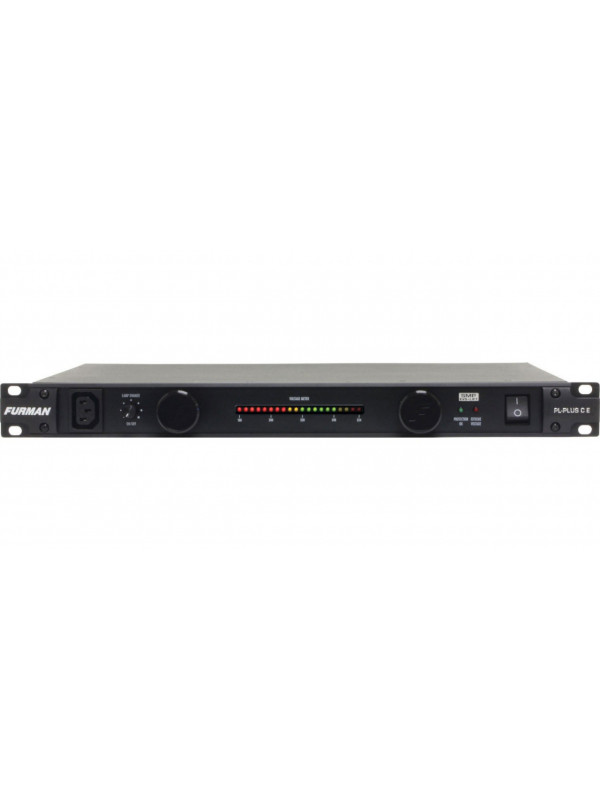

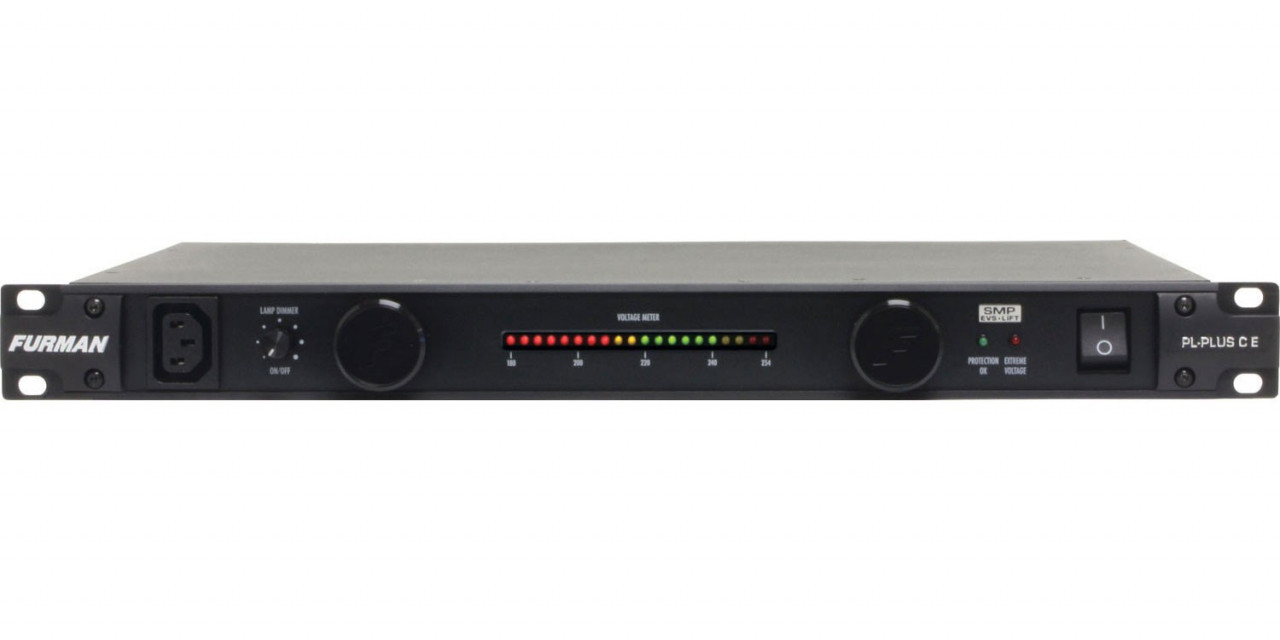

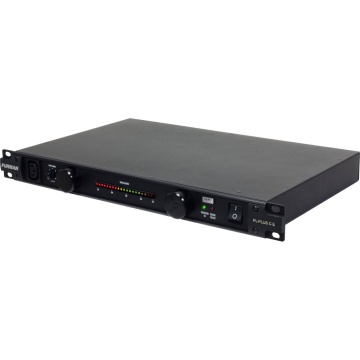

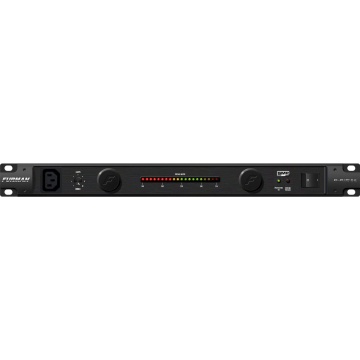

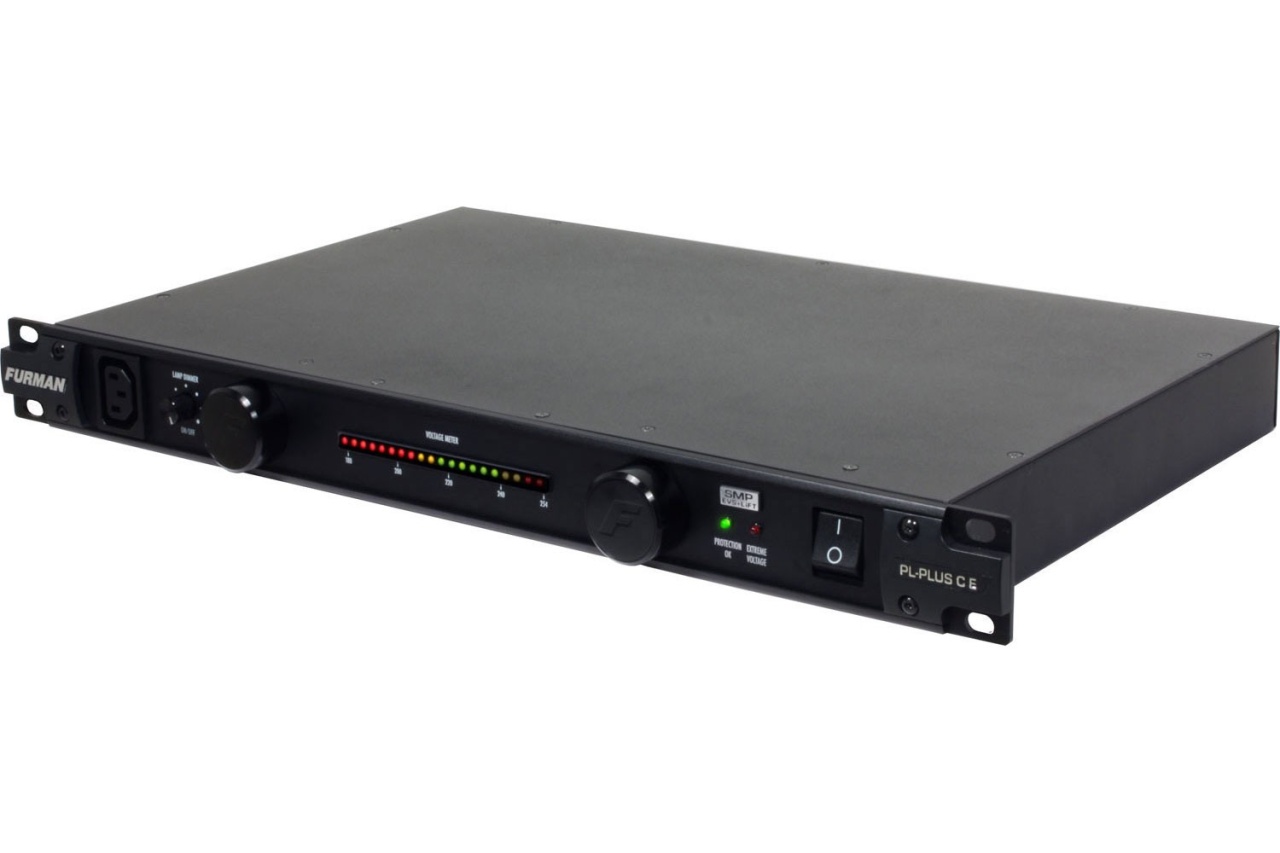

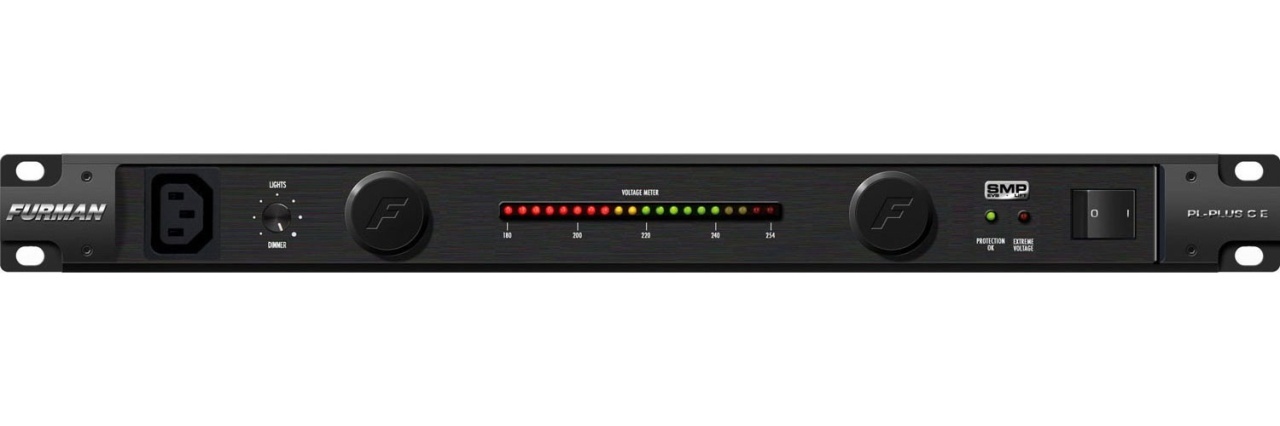

Furman PL-Plus C E - Power Conditioner, 10A, Lumina pt Rack si Voltmetru
Descriere
Seria Clasica Furman aduce impreuna protectie superioara si o performanta extraordinara intr-un pachet robust ce poate fi implementat in rack-ul dumneavoastra. Seria Classic include tehnologia revolutionara de serie Furman (SMP), tehnologia de filtrare liniara (LiFT) si oprirea extrema a tensiunii (EVS). Impreuna, aceste tehnologii cuprind ceea ce este, fara indoiala, unul dintre cele mai avansate si cuprinzatoare supresoare de tensiune tranzitorie din lume. Potrivit pentru aplicatii precum: Instrumente / Inregistrari / Echipamente DJ / Pro Audio
.Numar de iesiri: 11
Ocupa 1U in rack
Functii:
- Surge Protection
- Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Pull-out Lights
- Dual smooth track retractable LED lights illuminate equipment in your rack.
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- LED Voltmeter
- Segmented LED voltmeter monitors and displays incoming line voltage.
- Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination.
- 10 AMP Rating
- 10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
- 11 Total Outlets
- 11 total outlets (10 rear panel outlets and one front panel convenience outlet).
- BNC Lamp Connector
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
Specificatii:
General
• FamilyClassic Series 240V
• Line Voltage240 (Volts)
AC Protection
• AC Protection Technology:
-Extreme Voltage Shutdown -Series Multi-Stage Protection -Non-sacrificial protection with zero ground contamination
Shipping Info
• Length21.5 (Inches)
• Width14.9 (Inches)
• Height4.1 (Inches)
• Weight11.6 (Lbs)
• Unit of MeasureEach
• UPC 654061028109
• Master Pack Qty2
Other Specifications
• CURRENT RATING:10 amps
• OPERATING VOLTAGE:180 to 274 VAC
• OVER VOLTAGE SHUTDOWN:275 VAC typically
• SPIKE PROTECTION MODES:Line to neutral, zero ground leakage
• SPIKE CLAMPING VOLTAGE:376 VAC peak @ 3,000 Amps, 266 VAC RMS
• RESPONSE TIME:1 nanosecond
• MAXIMUM SURGE CURRENT:6,500 amps
• NOISE ATTENUATION:10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz Linear attenuation curve from 0.05 - 100 Ohms line impedance
• DIMENSIONS:44.45mm H x 482.6mm W x 266.7mm D.
• WEIGHT:5 kg
• CONSTRUCTION:Steel chassis, 3mm brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
• POWER CONSUMPTION:25 VA
• SAFETY AGENCY LISTING:CE
