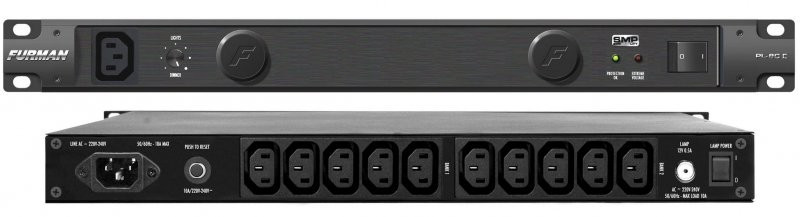

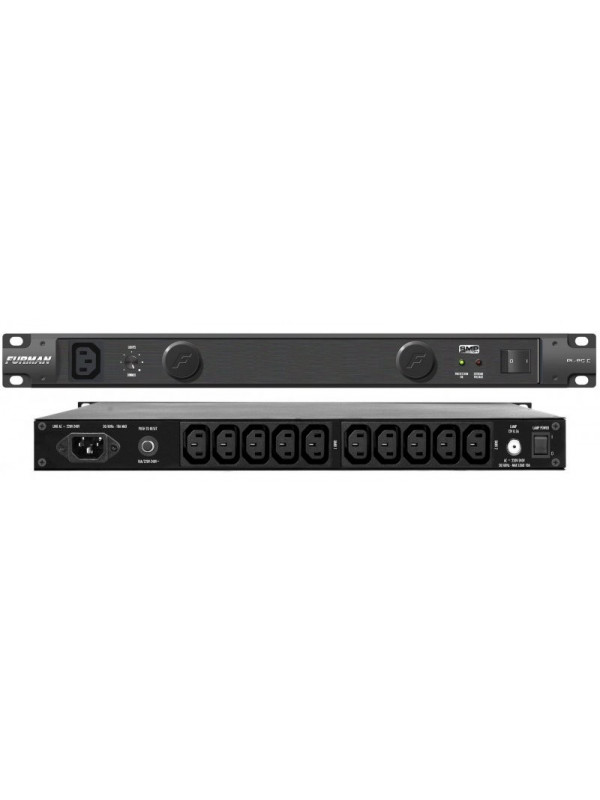

Furman PL-8 C E - Power Conditioner, Lumina pt Rack, 10A
Descriere
Seria Clasica Fruman aduce impreuna protectie superioara si o performanta extraordinara intr-un pachet robust ce poate fi implementat in rack-ul dumneavoastra.Seria Classic include tehnologia revolutionara de serie Furman (SMP), tehnologia de filtrare liniara (LiFT) si oprirea extrema a tensiunii (EVS). Impreuna, aceste tehnologii cuprind ceea ce este, fara indoiala, unul dintre cele mai avansate si cuprinzatoare supresoare de tensiune tranzitorie din lume.Potrivit pentru aplicatii precum: Instrumente / Inregistrari / Echipamente DJ / Pro Audio
Specificatii:
Numar de iesiri: 10
Ocupa 1U in rack
Functii:
- Surge Protection
- Furman's exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
- Pull-out Lights
- Dual smooth track retractable LED lights illuminate equipment in your rack.
- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination.
- 10 AMP Rating
- 10 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
- 11 Total Outlets
- 11 total outlets (10 rear panel outlets and one front panel convenience outlet).
- BNC Lamp Connector
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
Specificatii:
General
• FamilyClassic Series 240V
• Line Voltage240 (Volts)
• Power Requirements240
• Number of Outlets11
• Number of Isolated Banks2
• Outlet DescriptionsAll 11 outlets linearly filtered and surge protected
• Rack MountableYes
• Rack Ears IncludedYes
• Front Panel Meter(s)No
• Front Media Light(s)2 multi-LED, dimmable lamps
• ControlOn/Off switch and light dimmer knob on front panel.
• Voltage RegulationN/A
• ComplianceCE
• Dimensions482.6mm W x 266.7mm D x 44.5mm H
• Power Consumption12 Watts
AC Protection
• AC Protection TechnologyExtreme Voltage Shutdown Series Multi-Stage Protection Non-sacrificial protection with zero ground contamination
• Under-Voltage Shutoff180V
• Over-Voltage Shutoff274V
• Maximum Current Rating10 (Amps)
• Initial Clamping Level375 VAC peak @ 3,000 Amps
Filtration
• Filtration TechnologyLiFT
• Filtration Rating
• -10 dB @ 10 kHz -40 dB @ 100 kHz
• -50 dB @ 500 kHz
• Signal Line ProtectionN/A
Shipping Info
• Length21.6 (Inches)
• Width14.8 (Inches)
• Height4.2 (Inches)
• Weight11.35 (Lbs)
• Unit of MeasureEach
• UPC 654061028093
• Master Pack Qty2
Other Specifications
• Power Cord 3/1.0MM AWG, 2.5M cord w/IEC female to 10A Schuko plug
• Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)
• Response Time 1 nanosecond
• Peak Impulse Current 6,500 amps
• Rear BNC Connector Rear rack lamp, 12VAC 500MA max (lamp not included)
