DiGiCo Dante A168D STAGE - Multicore audio digital

Descriere

Digico Dante A168D STAGE este un sistem multicore digital cu 16 mic/line in si 8 line out I/O

Caracteristici esentiale:

• 16 preamplificatoare de microfon XLR cu Phantom Power
• Status LED
• 8 iesiri XLR Line
• Conectivitate Dante

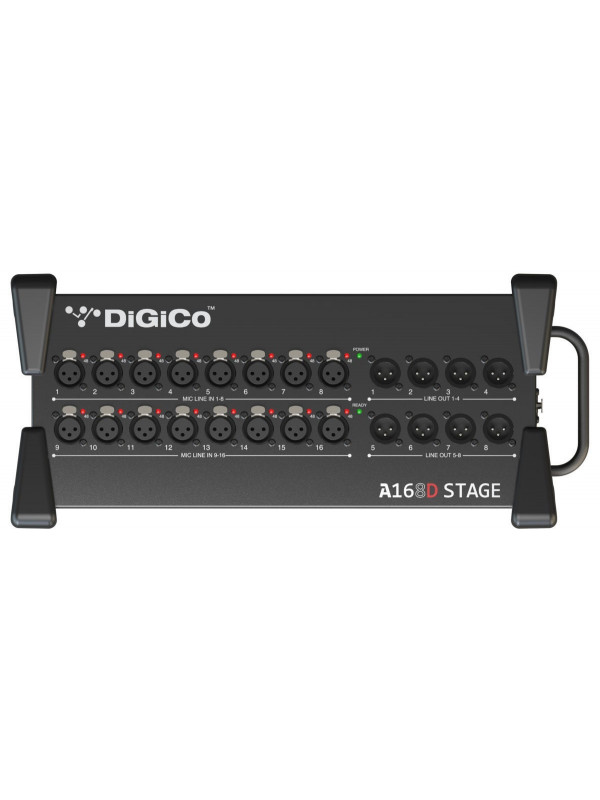

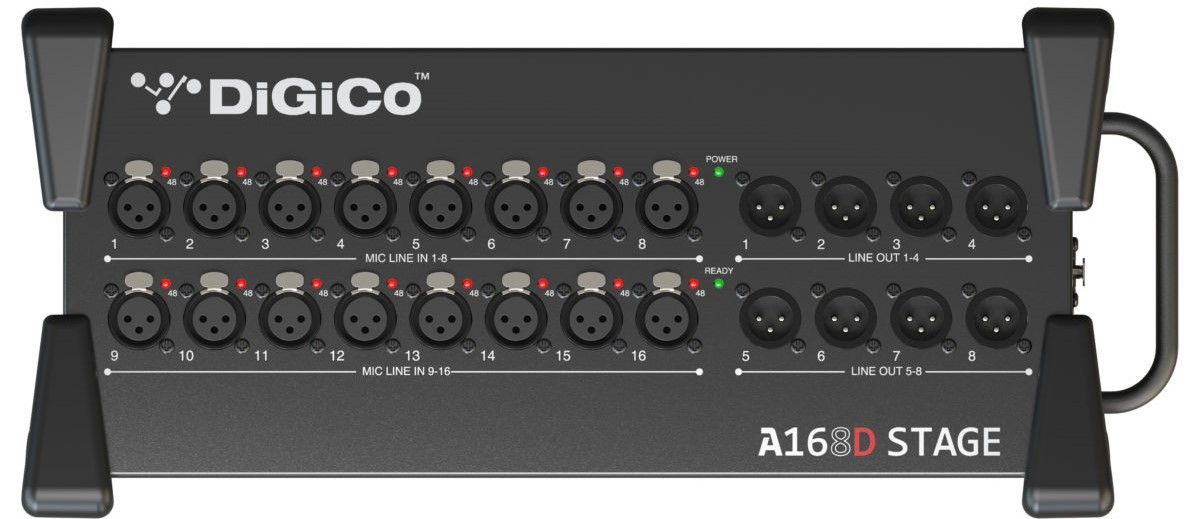

Panou frontal:

• 16 x preamplificatoare microfon XLR cu Phantom Power
• LED-uri de status
• 8 x iesiri XLR Line

Panou lateral:

• 2 x Locking EtherCON ports
• 1 x IEC C14
• 1 x Mains input (100-240VAC)

Specificatii:

• Sample Rate: 48kHz or 96kHz
• Mix/Line XLR Inputs: Balanced XLR, +48V Phantom Power
• Mic/Line Preamp: Fully recallable
• Analogue Gain: +5 to +60dB, 1dB steps
• Pad: -20dB Active Pad
• Maximum Input Level: +30dBu (Pad in)
• Input Impedance: >.4k&Omega. (Pad out), >.10k&Omega. (Pad in)
• Mic EIN: -127dB with 150Ω source
• Analogue XLR Outputs: Balanced, Relay protected
• Output Impedance: <.75&Omega.
• Nominal Output: +4dBu = 0dB meter reading
• Maximum Output Level: +22dBu
• Residual Output Noise: -93dBu (22Hz-22kHz)
• Operating Temperature Range: 0°C to 35°C (32°F to 95°F)
• Mains Voltage Operating Range: 100-240V AC, 50/60Hz
• Mains Power Consumption: 35W max
