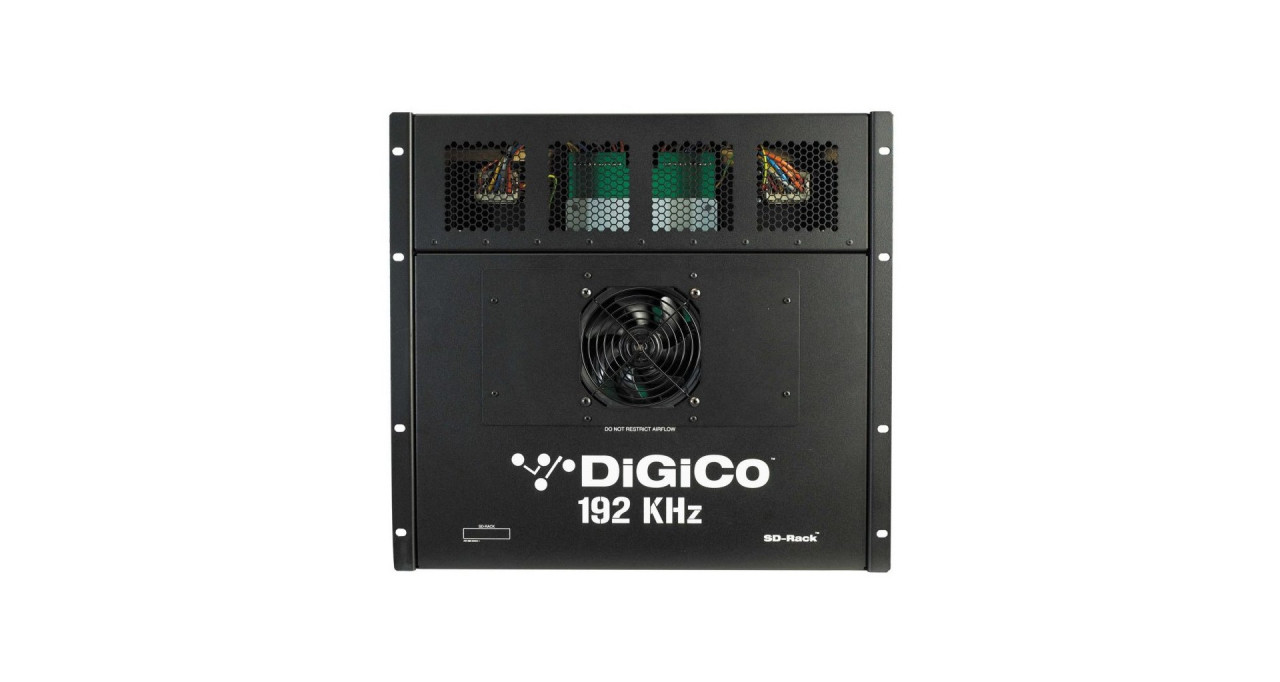

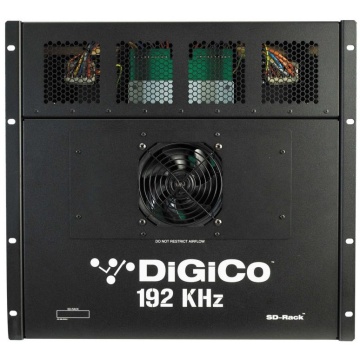

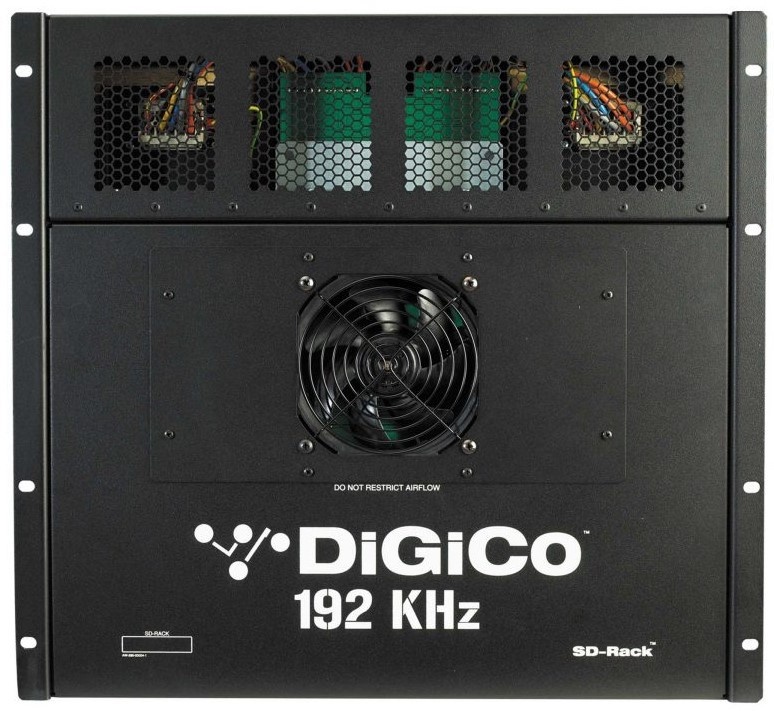

Name: DiGiCo SD-Rack - Multicore audio digital
Brand: DiGiCo
SKU: ZD-042527

Descriere

DiGiCo SD-Rack este un rack de intrare si iesire cu 14 sloturi, care permit pana la 56 de intrari si 56 de iesiri.

.

Sd-Rack este compatibil cu o selectie larga de module analogice si digitale, inclusiv DAC-urile diGiCo pe 32 bit, Dante, AES / EBU si Aviom.

Este bazat pe aceeasi tehnologie Stealth FPGA, rezultatul fiind conversia A/D de top, completata cu diGiCo Gain Tracking.

Caracteristici esentiale:

14 card module slots (up to 56 inputs and 56 outputs)
10U Rack Mountable
Gain Tracking
Proven touring ready rugged design
Easily accessible, hot-swappable, redundant PSUs
Removable PSUs and MADI Pod for cleaning and repair
Iesiri MADI Split
Inbuilt SRC for MADI Split outputs
Flashing screen to indicate system OK from a distance
Locked controls to prevent accidental setting changes
Oscilator intern
Poate fi folosit ca un rack independent

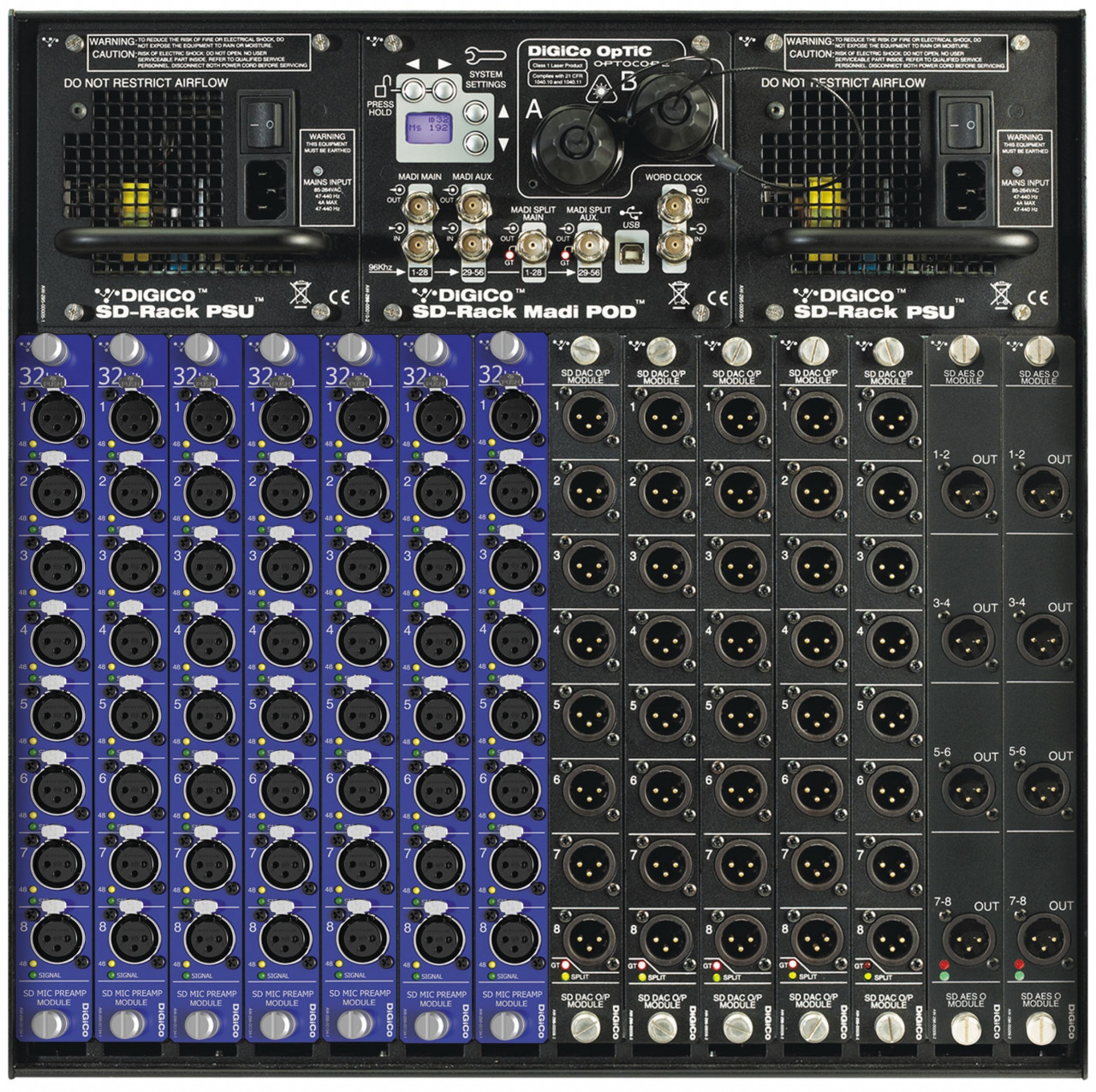

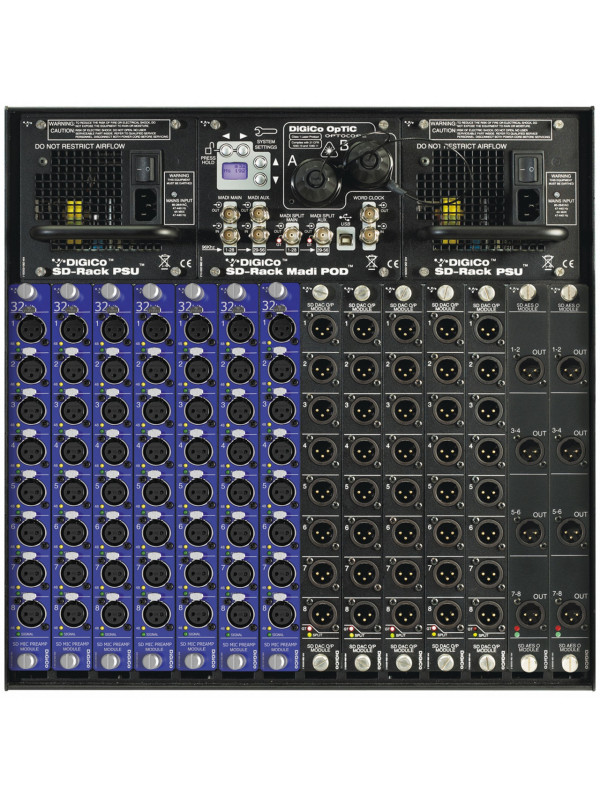

Suprafata de lucru

14 sloturi pentru modulul de card (7 intrări și 7 ieșiri)
2 x PSU, hot-swappable
1 x Interfata Optocore (optional)
1 x Ecran LCD Meniu
4 x Butoane meniu
1 x MADI Main I / O BNC
1 x MADI Aux I / O BNC
1 x MADI Split Main Output BNC
1 x MADI Split Aux ieșire BNC
Word Clock I / O BNC
1 x port USB 2.0 Tip B

Procesarea semnalului:

Oscilator intern
Inbuilt Sample Rate Conversion for split outputs
Gain tracking

Optiuni:

Optocore Interface (HMA, OpticalCon or ST connectivity)
Upgrade to SingleMode Optocore
Compatible Cards: 32-Bit Mic Pre / 32-Bit DAC / ADC / DAC
/ AES I/O XLR / AES I/O BNC / AES Input / AES Output /
AES42 / Dante / ADAT / SDI I/O / Aviom
Blanking Plate

Specificatii audio:

Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or
192kHz
Optocore Fibre Speed: 1G or 2G
Split Output MADI Type: 56 Ch, SD Rack or 64 Ch
Oscillator Level: -96dB to 0dB
Oscillator Frequency: 20Hz to 22kHz

Specificatii fizice:
