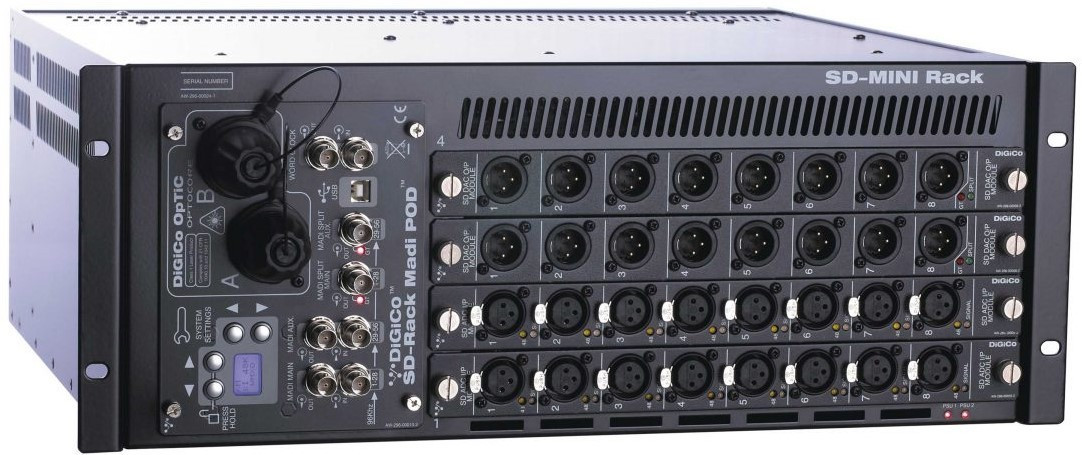

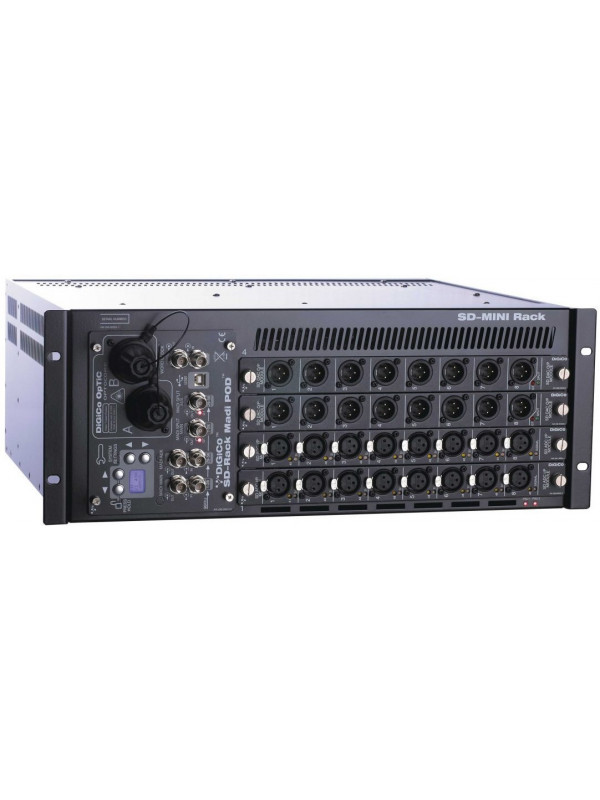

DiGiCo SD-Rack MINI - Multicore audio digital

Descriere

DiGiCo SD-Rack MINI este un rack de intrare si iesire cu 4 sloturi, care permit pana la 32 de intrari si 32 de iesiri.

SD-Rack MINI este compatibil cu o selecție larga de module analogice si digitale, inclusiv DAC-urile diGiCo pe 32 bit, Dante, AES / EBU si Aviom.

Este bazat pe aceeasi tehnologie Stealth FPGA, rezultatul fiind conversia A/D de top, completata cu diGiCo Gain Tracking.

Caracteristici esentiale:

4 card module slots (up to 32 inputs and 32 outputs)
10U Rack Mountable
Gain Tracking
Proven touring ready rugged design
Easily accessible, hot-swappable, redundant PSUs
Removable PSUs and MADI Pod for cleaning and repair
Iesiri MADI Split
Inbuilt SRC for MADI Split outputs
Flashing screen to indicate system OK from a distance
Locked controls to prevent accidental setting changes
Oscilator intern
Poate fi folosit ca un rack independent

Suprafata de lucru:

4 card module slots

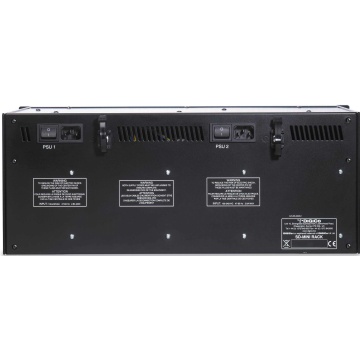

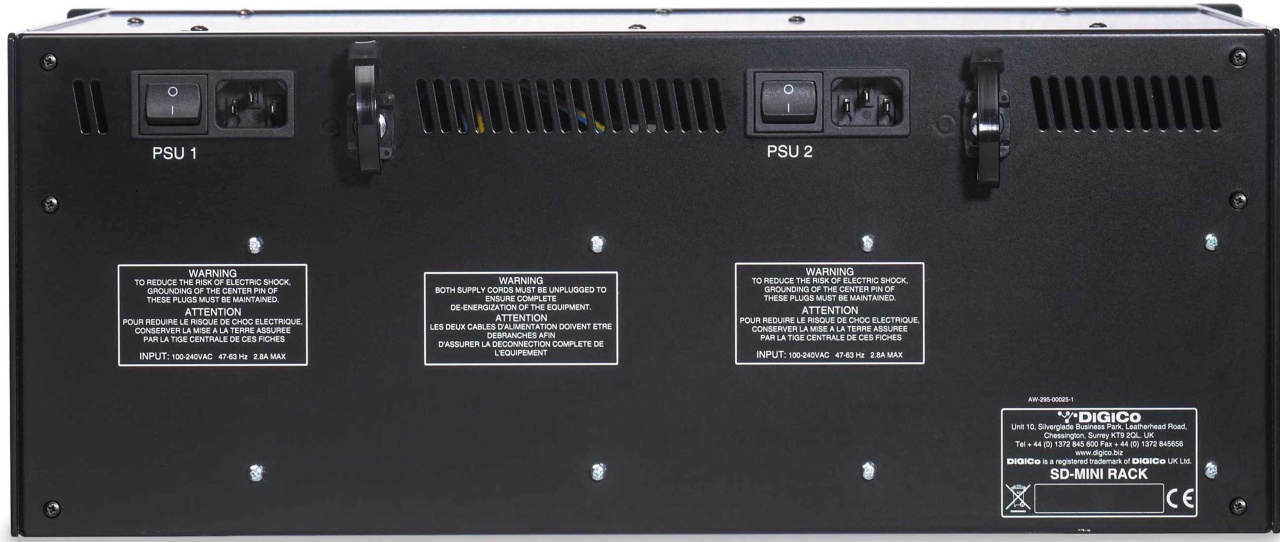

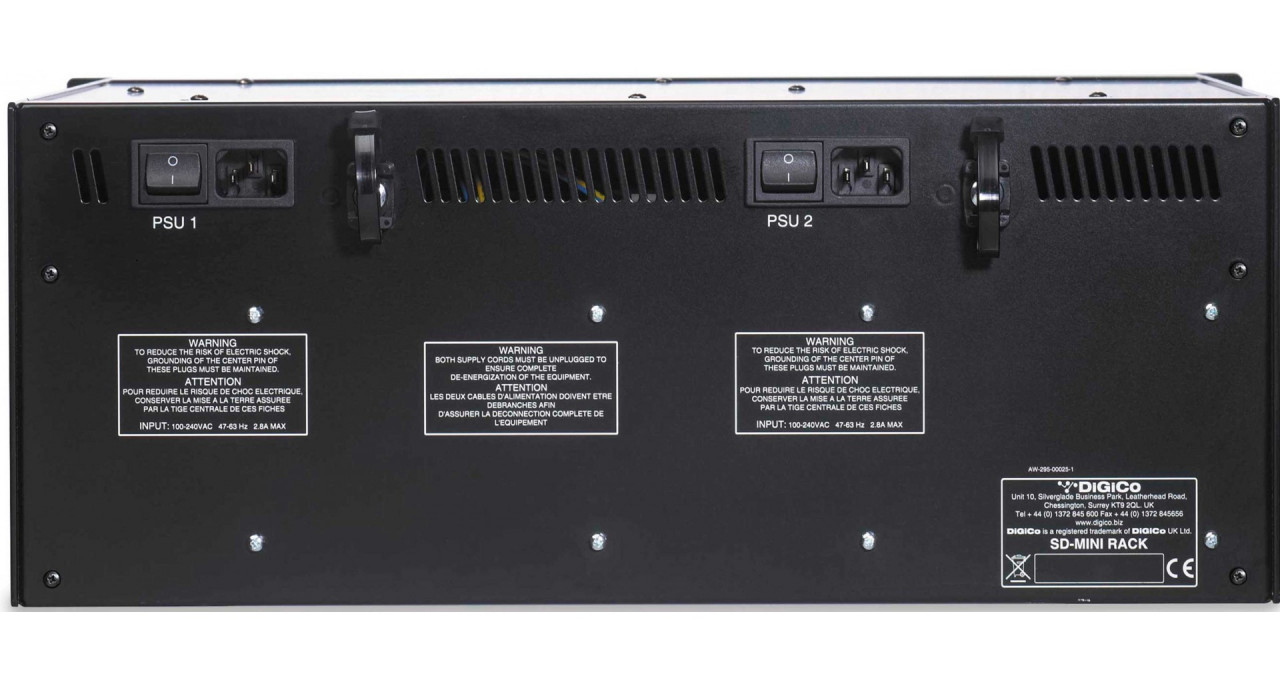

2 x Redundant PSUs
1 x Optocore Interface (Optional)
1 x LCD Menu Screen
4 x Menu Buttons
1 x MADI Main I/O BNC
1 x MADI Aux I/O BNC
1 x MADI Split Main Output BNC
1 x MADI Split Aux Output BNC
Word Clock I/O BNC
1 x USB 2.0 Type B port

Procesarea semnalului:

Oscilator intern
Inbuilt Sample Rate Conversion for split outputs
Gain tracking

Optiuni:

Optocore Interface (HMA, OpticalCon or ST connectivity)
Upgrade to SingleMode Optocore
Compatible Cards: 32-Bit Mic Pre / 32-Bit DAC / ADC / DAC
/ AES I/O XLR / AES I/O BNC / AES Input / AES Output /
AES42 / Dante / ADAT / SDI I/O / Aviom
Blanking Plate

Specificatii audio:

Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or
192kHz
Optocore Fibre Speed: 1G or 2G
Split Output MADI Type: 56 Ch, SD Rack or 64 Ch
Oscillator Level: -96dB to 0dB
Oscillator Frequency: 20Hz to 22kHz
