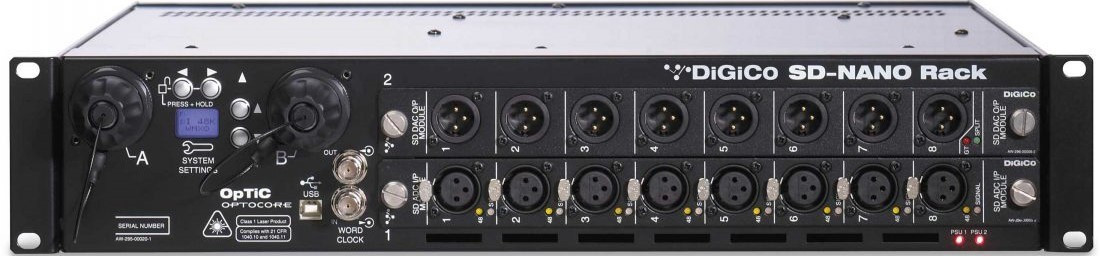

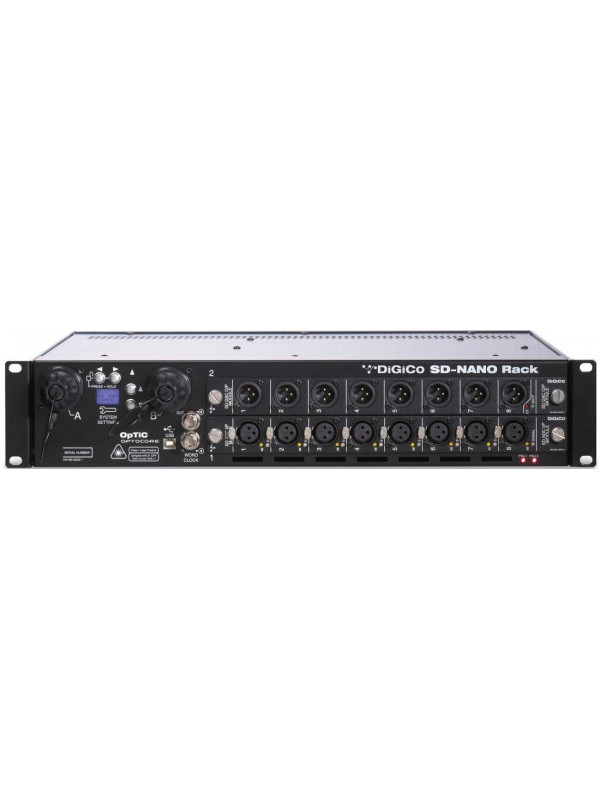

DiGiCo SD-Rack NANO - Multicore audio digital

Descriere

DiGiCo SD-Rack NANO este un rack de intrare si iesire cu 2 sloturi, care permit pana la 16 de intrari si 16 de iesiri.

Sd-Rack este compatibil cu o selecție larga de module analogice si digitale, inclusiv DAC-urile diGiCo pe 32 bit, Dante, AES / EBU si Aviom.

Este bazat pe aceeasi tehnologie Stealth FPGA, rezultatul fiind conversia A/D de top, completata cu diGiCo Gain Tracking.

Caracteristici esentiale:

2 card module slots (up to 16 inputs and 16 outputs)
2U Rack Mountable
Gain Tracking
Redundant PSUs
Flashing screen to indicate system OK from a distance
Locked controls to prevent accidental setting changes
Oscilator intern
Poate fi utilizat ca rack standalone

Suprafata de lucru:

2 card module slots
2 x Redundant PSUs
1 x Optocore Interface
1 x LCD Menu Screen
4 x Menu Buttons
Word Clock I/O BNC
1 x USB 2.0 Type B port

Procesarea semnalului:

Oscilator intern
Gain tracking

Optiuni:

Optocore Interface (HMA, OpticalCon or ST connectivity)
Upgrade to SingleMode Optocore
Compatible Cards: 32-Bit Mic Pre / 32-Bit DAC / ADC / DAC
/ AES I/O XLR / AES I/O BNC / AES Input / AES Output /
AES42 / Dante / ADAT / SDI I/O / Aviom
Blanking Plate

Specificatii audio:

Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 92kHz
Optocore Fibre Speed: 1G or 2G
Oscillator Level: -96dB to 0dB
Oscillator Frequency: 20Hz to 22kHz

Specificatii fizice:
