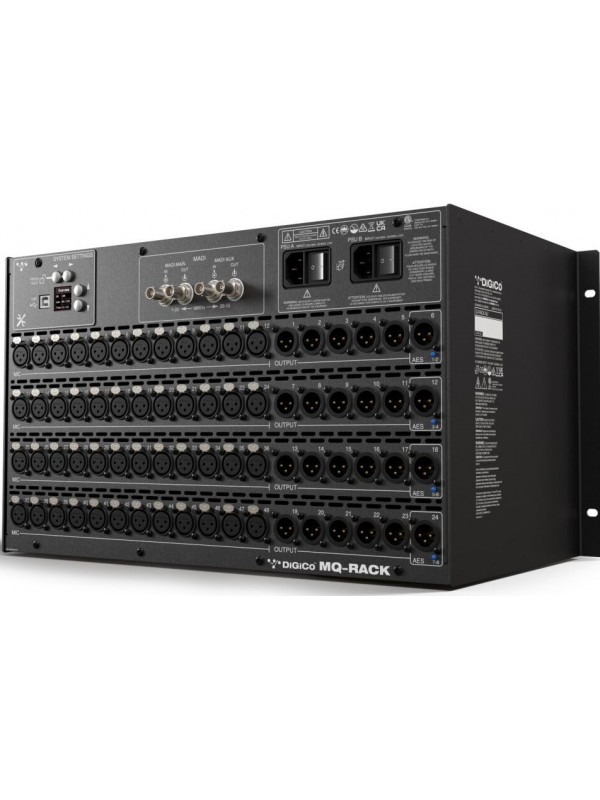

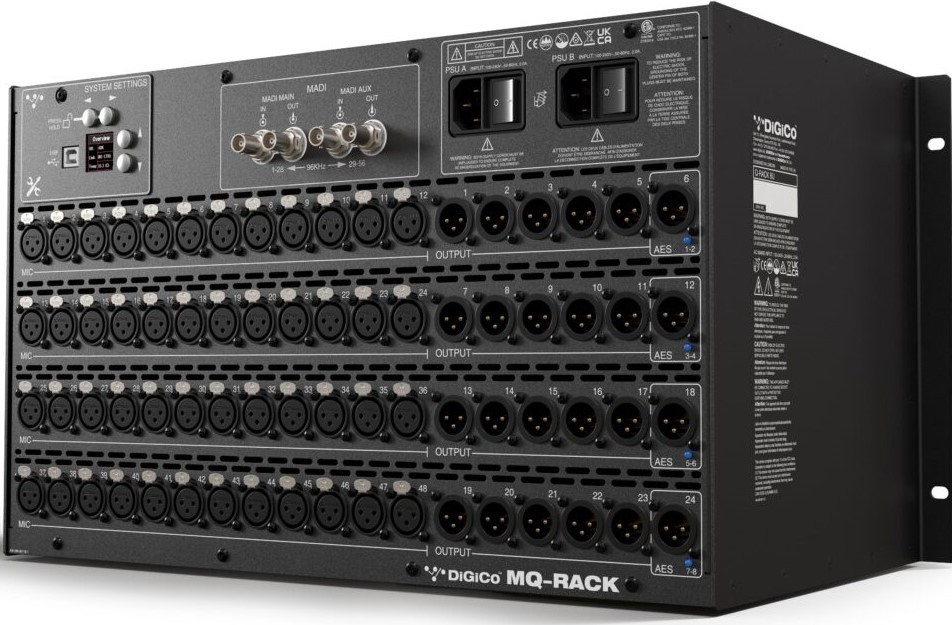

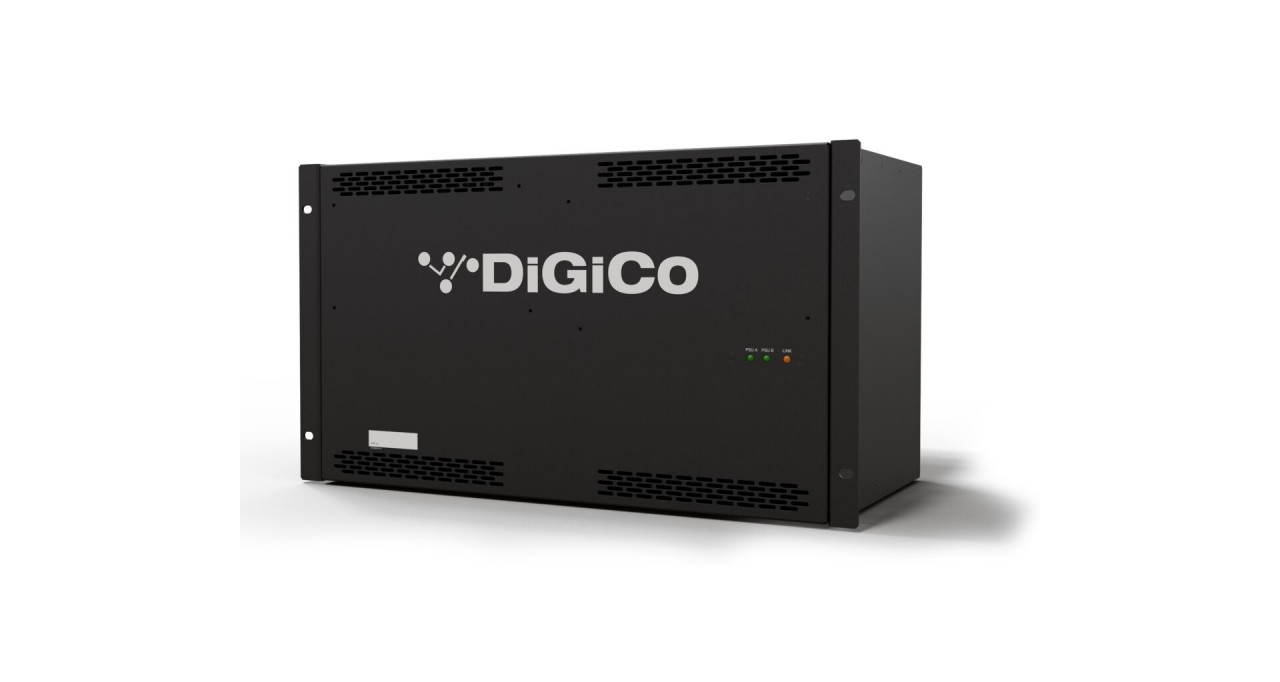

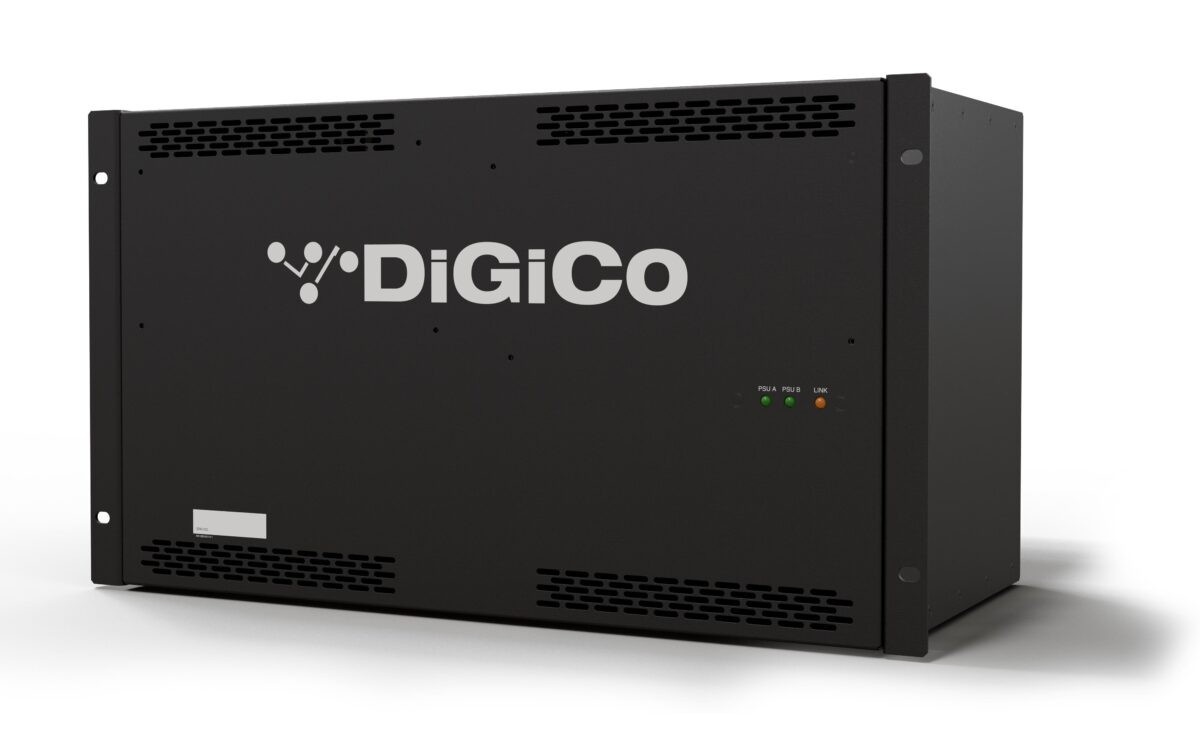

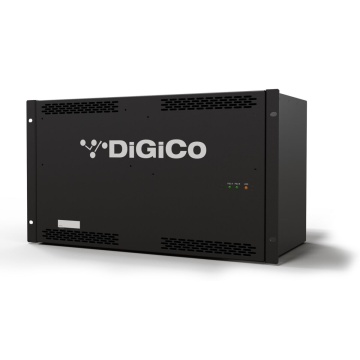

DiGiCo MQ-Rack - Multicore audio digital

Descriere

DiGiCo MQ-Rack este un rack cu 48 de canale de intrare, 24 canale de iesire cu conectivitate BNC MADI. De asemenea, dispune de 4 iesiri XLR comutabile care pot fi iesiri analogice sau AES.

Caracteristici esentiale:

• 48 Intrari microfon
• Pana la 24 de iesiri de linie
• 4 Iesiri AES comutabile
• Conectivitate BNC MADI
• Rack sharing or digital splits at 48kHz
• 6U Rack Mountable
• Gain Tracking
• Redundant PSUs
• Flashing screen to indicate system OK from a distance
• Locked controls to prevent accidental setting changes
• Oscilator intern

Conexiuni:

• 48 x XLR Mic Inputs
• 20 x XLR Line Outputs
• 4 x XLR Switchable AES/Line Outputs
• 1 x TFT LCD Menu Screen
• 4 x Menu Buttons
• 1 x MADI Main I/O BNC
• 1 x MADI Aux I/O BNC
• 2 x Redundant PSUs
• 1 x USB 2.0 Type B port

Procesarea semnalului:

• Oscilator intern
• Gain Tracking

Specificatii audio:

• Sample Rate: 48kHz or 96kHz
• Crosstalk: TBC
• Analogue Input Frequency Response: TBC
• Analogue EIN: TBC
• Dynamic Range: TBC
• Input Impedance: TBC
• CMRR: TBC
• AES Distortion: TBC
• Analogue Distortion: TBC
• AES Cable Length: TBC
• Phantom Power: TBC
• Oscillator Level: -96dB to 0dB
• Oscillator Frequency: 20Hz to 22kHz
• Gain Range: TBC
• System Delay: TBC
• Maximum Input Level: TBC
• Maximum Output Level: TBC

Specificatii fizice:

• Dimensiuni: 482.7mm (w) x 253mm (d) x 265.9mm (h)
• Greutate: 11kg
• Alimentare: 100-240V~, 50-60Hz, 2.0A
• Redundancy: PSUs x 2
• Product Code: X-MQ-RACK
