Name: DiGiCo Quantum 225 - Consola digitala de mixaj audio
Brand: DiGiCo
SKU: ZD-042515

Descriere

DiGiCo Quantum 225 este o consola de mixaj cu 72 de canale, 25 fadere fizice si un LCD touchscreen 1 x 17 " de inalta rezolutie.

Ca si omologul sau mai mare, Quantum 338, Quantum 225 ofera toate caracteristicile Quantum plus noi caracteristici de design si imbunatatiri intr-un format mai mic.

.

Caracteristici esentiale:

72 canale de intrare cu procesare completa
36 buss-uri Aux/Subgrup cu procesare completa
Matrice 12 x 12 cu procesare completa
24 Benzi de prelucrare
32 Instante de procesare nodale
Functia True Solo
41 de afisaje LCD TFT
Ecran tactil de inalta rezolutie de 1 x 17"
Comenzi macro programabile pentru utilizatori
Capabil de mirroring cu un alt Quantum 225
2 sloturi DMI pentru a extinde I/O
UB MADI Integrat
Software offline
Controlul iPad-ului

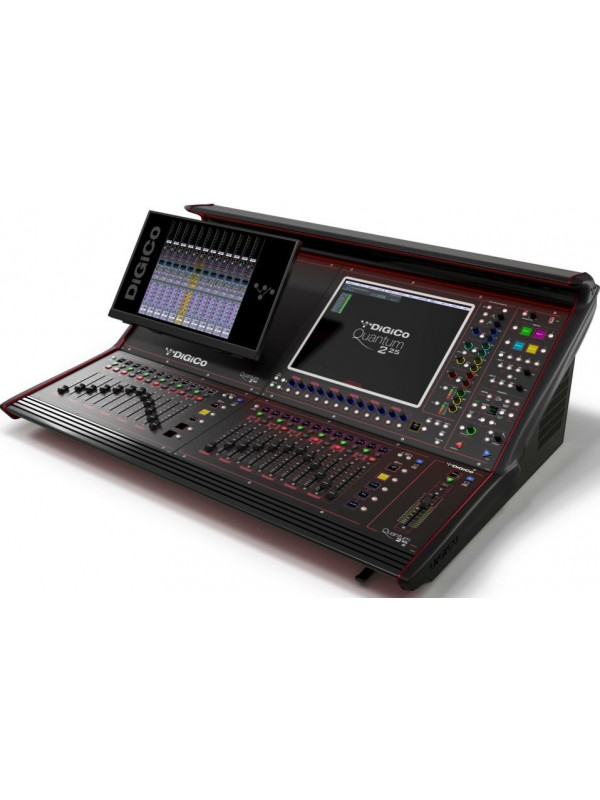

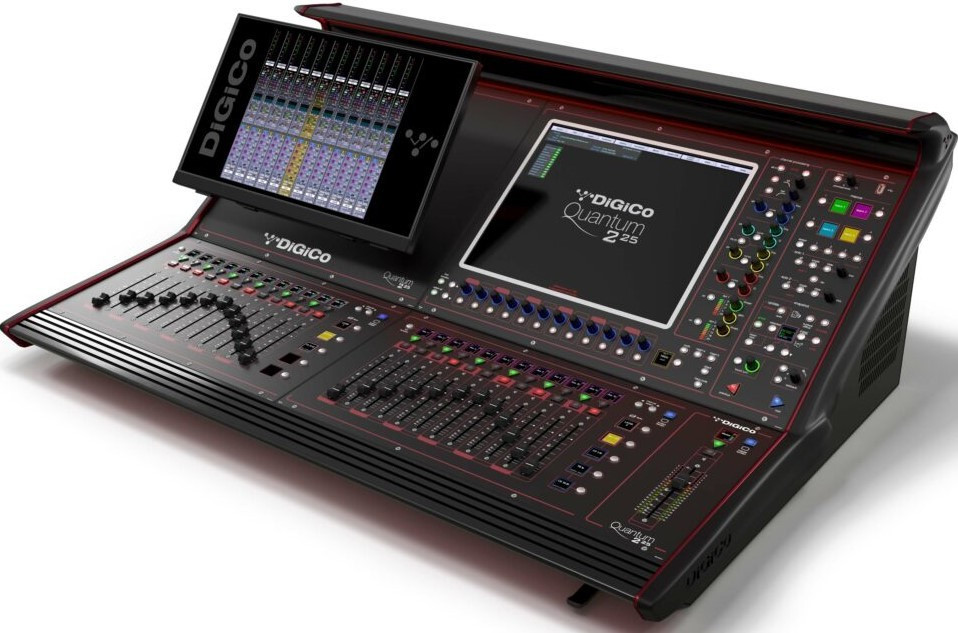

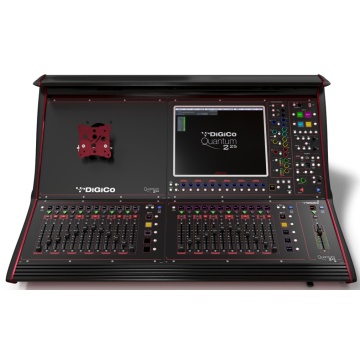

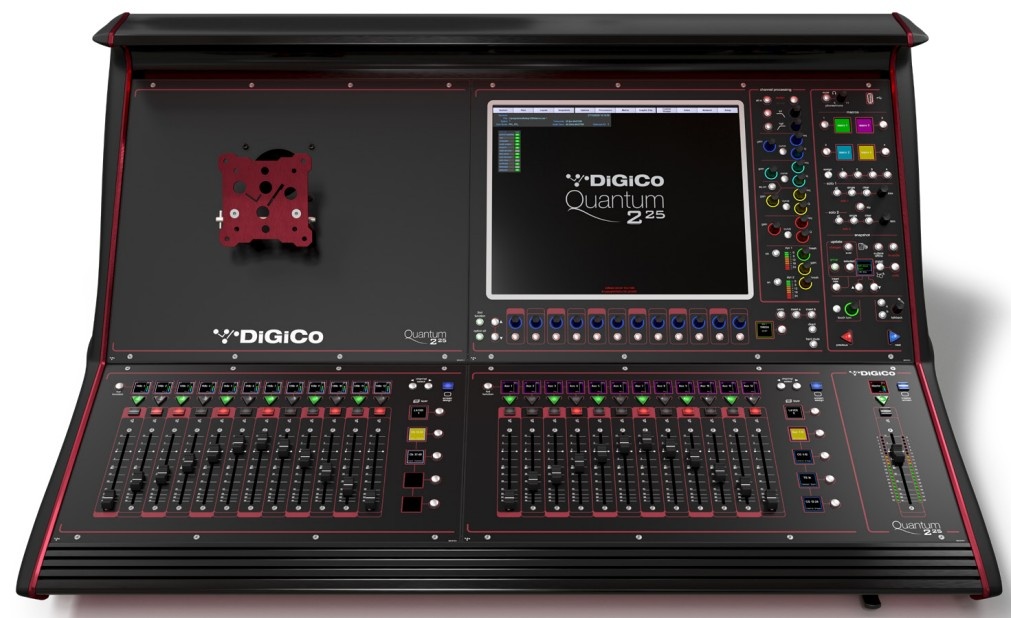

Suprafata de lucru:

25 x 100mm sensibil la atingere, fadere motorizate
Ecrane tactile LCD de inalta luminozitate si de inalta rezolutie de 1 x 17"
41 x Full Color TFT LCD Display
1 x 1 / 4 "jack pentru casti
1 x 3.5mm jack pentru casti
1 x slot USB 2.0
Bara de luminare tastatura
Bara de luminare integrata
1 x Suport de montare

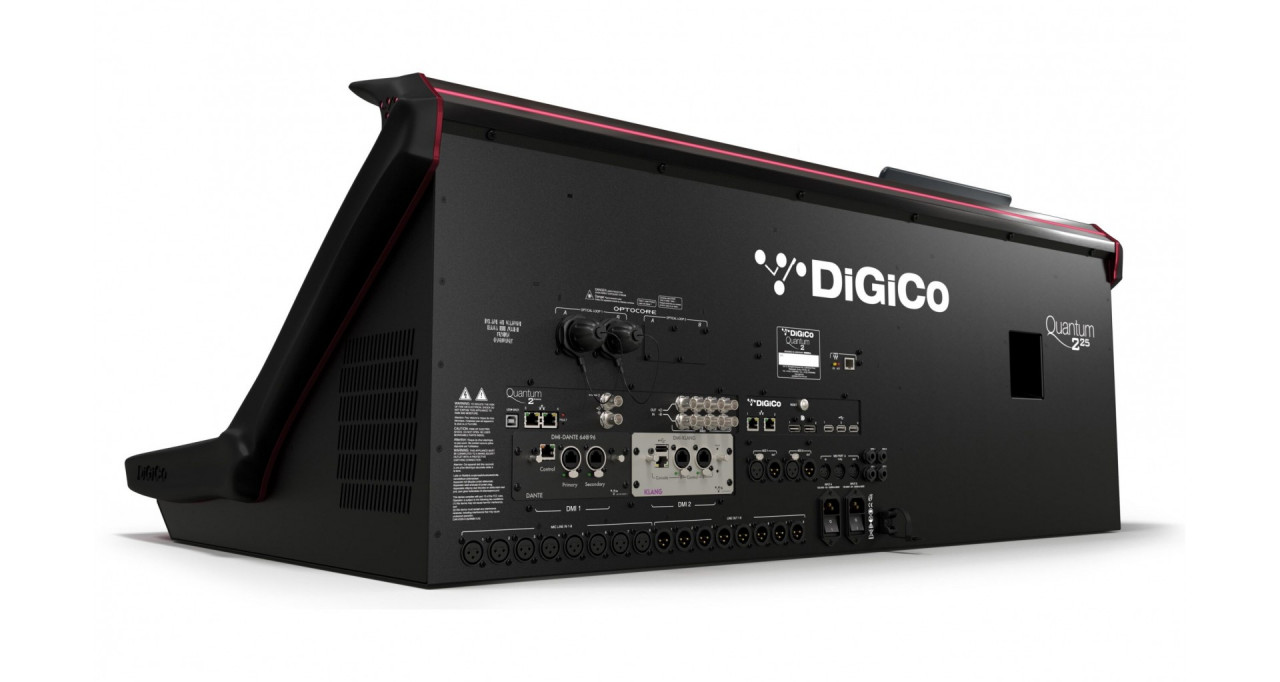

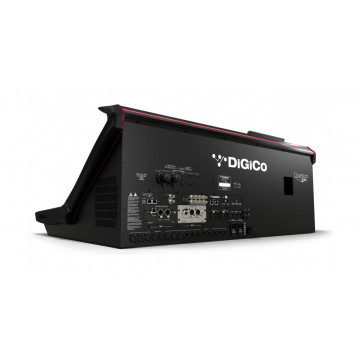

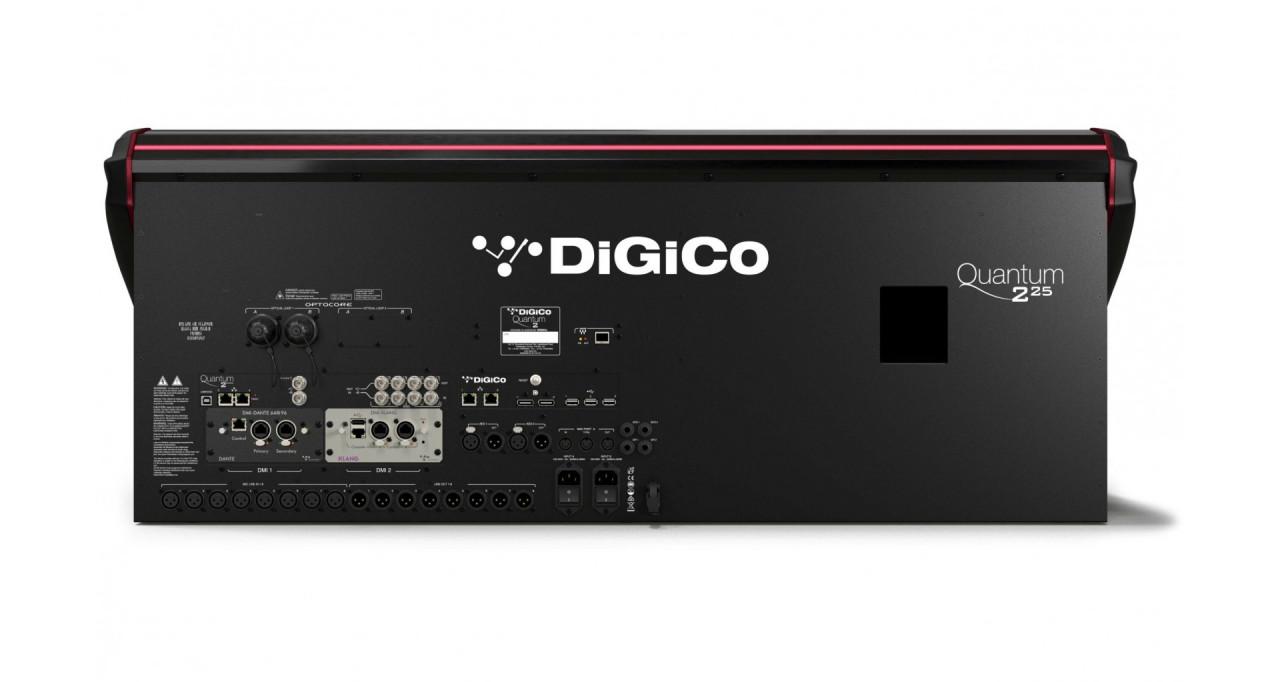

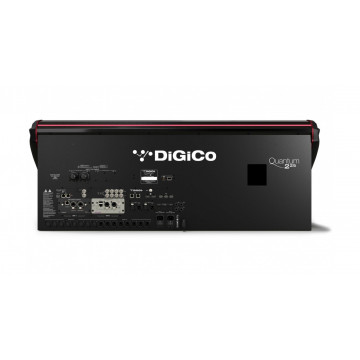

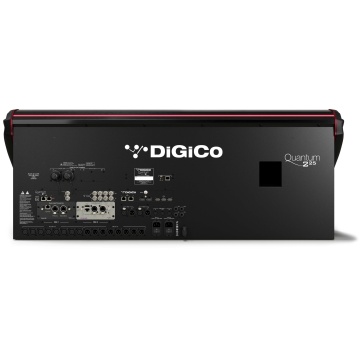

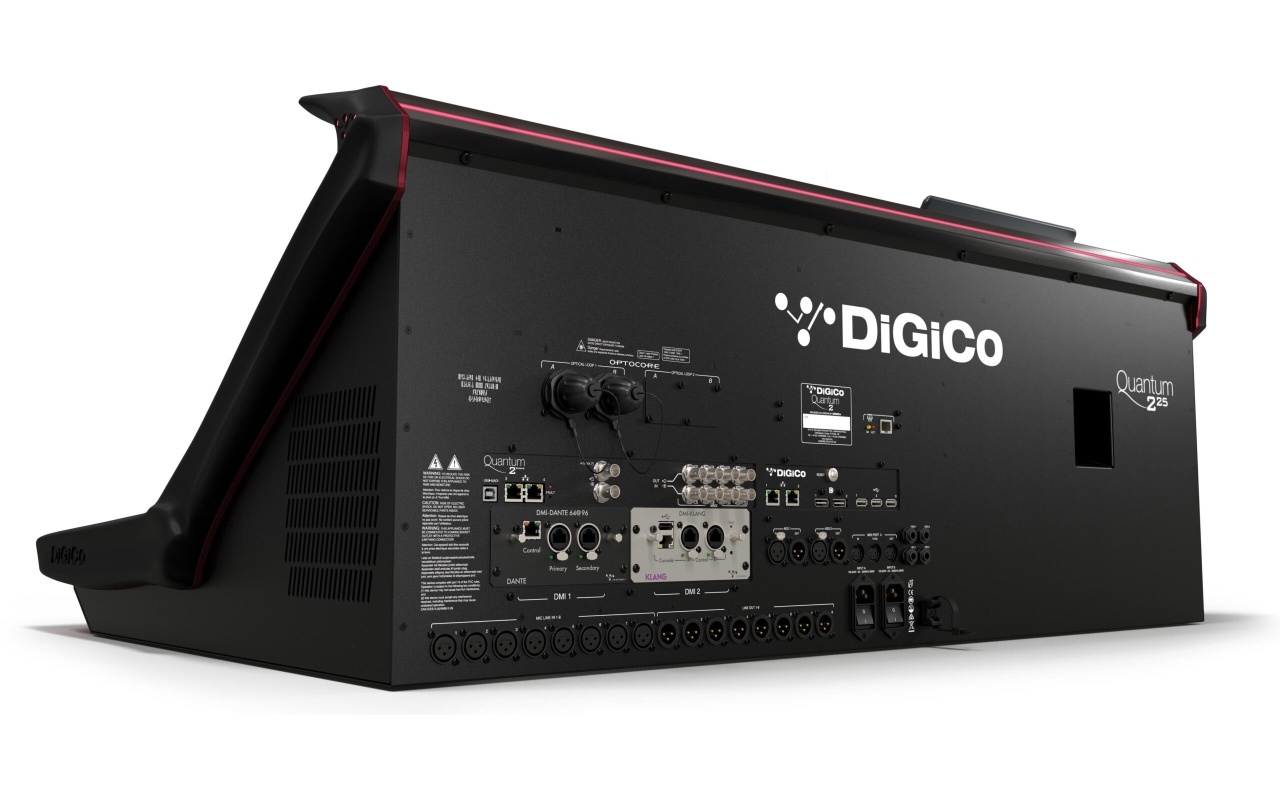

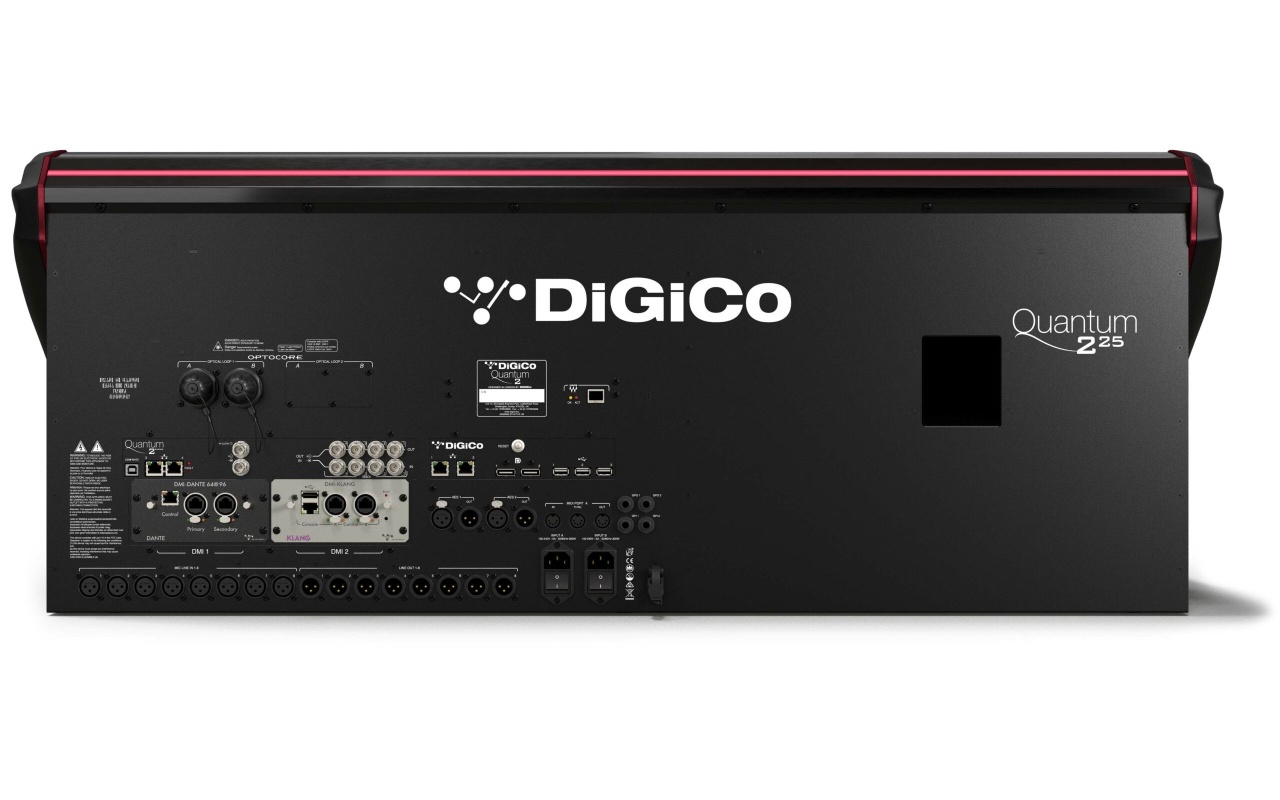

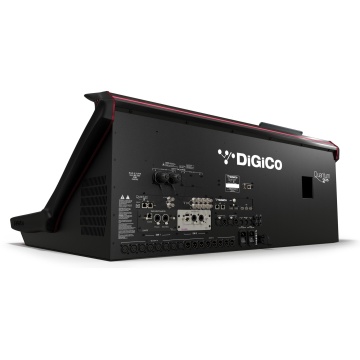

In spate:

2 x Redundant PSUs
8 x XLR Mic/Line Inputs
8 x XLR Line Outputs
2 x XLR AES/EBU Inputs (4 x channels)
2 x XLR AES/EBU Outputs (4 x channels)
4 x MADI BNC I/O @ 48k, 2 interfaces at 96k
1 x MultiMode Optocore Interface (Optional)
1 x Waves port (Optional)
2 x DMI Slots (up to 64 I/O per slot)
1 x UB MADI (USB Type B Audio I/O interface for recording
and playback of up to 48 channels)
4 x Ethernet ports (switched together)
3 x USB 2.0 slots
2 x GPI 1/4&rdquo. Jacks
2 x GPO 1/4&rdquo. Jacks
1 x MIDI In/Thru/Out (5 pin DIN)
1 x Word Clock I/O BNC
2 x DisplayPort Outputs
1 x Quantum Lighting Bar

Optiuni:

Single or Dual Loop Optocore (HMA, OpticalCon or ST)
Upgrade to SingleMode Optocore
Waves Soundgrid Interface
Flightcase
Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /
Dante / Dante 64@96 / Hydra 2 / KLANG / MADI B / MADI C/ ME / Mic / Waves

Procesare semnal:

72 Input Channels (Mono)

Main & Alternative input
Analogue Gain
Phase Inversion Control
Gain Tracking
Digital Trim (-40dB to +40dB)
Variable Delay (0ms to 1.3s)
DiGiTube
HPF/LPF (-24dB/Oct)
4 Band Parametric EQ / Dynamic EQ
DYN 1: Compressor, Multiband Compressor, Desser
DYN 2: Gate, Duck, External Input Compressor
EQ/Dyn Order Control
2 Insert Points per Channel
Channel Mute & Hard Mute
Channel Direct Outputs
36 Aux/Sub-Group Busses
Phase Inversion Control
Digital Trim (-40dB to +40dB)
Variable Delay (0ms to 1.3s)
DiGiTube
Merge Input
Tone Generator
HPF/LPF (-24dB/Oct)
8 Band EQ: 4 Band Parametric EQ and 4 Band
Parametric or Dynamic EQ
DYN 1: Compressor, Multiband Compressor, Desser
DYN 2: Gate, Duck, External Input Compressor • EQ/Dyn Order Control • 2 Insert Points per Channel
Channel Mute & Hard Mute
1 LR/LCR Master Buss (with full processing)
12 Input x 12 Output Full Processing Matrix
12 Control Groups (CGs)
2 Solo Busses
16 x 32-band GEQs
12 x Internal Stereo FX Processors
Delays
Audio Enhancer
Choruses
Pitch Shifters • Reverbs
6 x Internal Spice Rack Slots
6 band Dynamic Multiband Compressor/Expander

24 x Mustard Processing Strips

Tube
Tube Emulation
HPF/LPF (-24dB/Oct)
4 Band EQ: 2 Band Parametric EQ and 2 Band
Parametric EQ or All Pass Filters • DYN 1: Classic RMS/Peak Compressor, Vintage VCA
Compressor, Optical Compressor, FET Limiter • DYN 2: Gate, Ducker
32 x Nodal Processing
4 Band Parametric EQ / Dynamic EQ
DYN 1: Compressor, Multiband Compressor, Desser
DYN 2: Gate, Duck, External Input Compressor
Multiband Compressors available on every channel, Buss
and Nodal Processor
Dynamic EQs available on every channel, Buss and Nodal
Processor
DiGiTuBes available on every channel & Buss
Virtual Soundcheck
True Solo function
