Name: DiGiCo Quantum 338 - Consola digitala de mixaj audio
Brand: DiGiCo
SKU: ZD-042516

Descriere

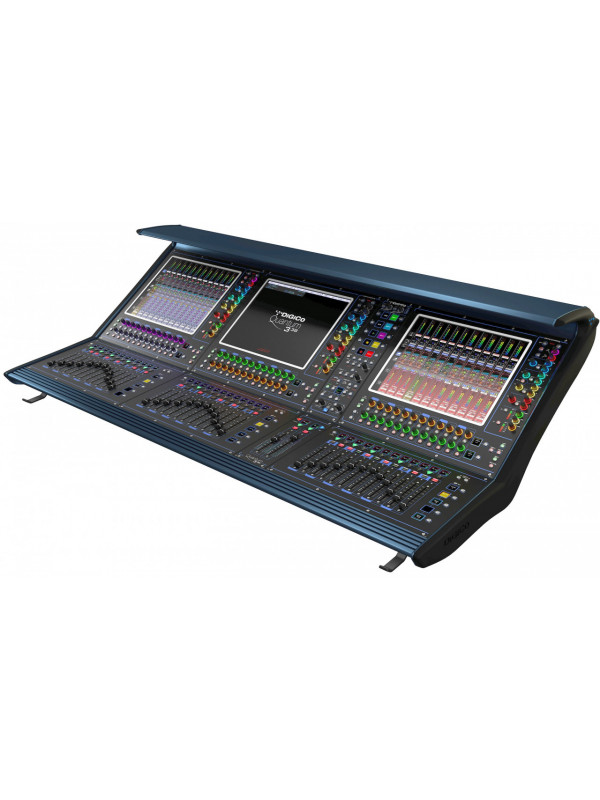

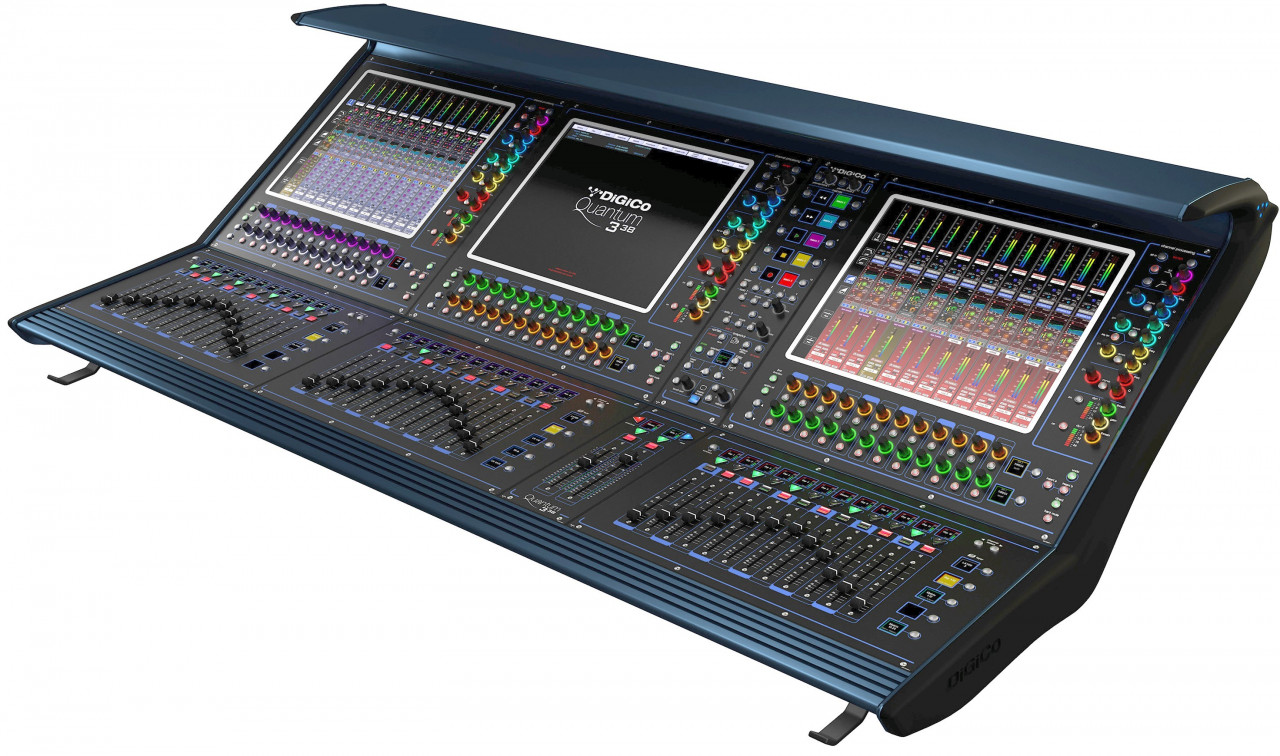

DiGiCo Quantum 338 este o consola de mixaj cu 128 de canale, 38 de fadere fizice si un LCD touch-screen 3 x 17 " de inalta rezolutie.

Bazandu-se pe Quantum 7, Quantum 338 ofera toate caracteristicile Quantum, plus noi caracteristici de design si imbunatatiri intr-o consola cu un format mai mic.

.

Caracteristici esentiale:

128 canale de intrare cu procesare completa
64 buss-uri Aux/Subgrup cu procesare completa
Matrice 24 x 24 cu procesare completa
36 Insertable Mustard processing strips
64 Instante de procesare nodale
Functia True Solo
70 TFT LCD pentru afisaj
Ecrane tactile de î.nalta rezolutie de 3 x 17" cu luminozitate ridicata si de inalta rezolutie
Ultimate Stadius 32-bit locale I / O
Aspect de canal asignabil
Comenzi macro programabile pentru utilizatori
Capabil de mirroring cu un alt Quantum 3
Redundant PSUs as standard
Snapshots for seamlessly changing many parameters at once
2 sloturi DMI pentru a extinde I/O
UB MADI Integrat
Software offline
Control iPad

Suprafata de lucru:

38 x 100mm sensibil la atingere, fadere motorizate
Ecrane tactile LCD cu luminozitate puternica si de î.nalta rezolutie de 3 x 17"
Display-uri 70 x Full Color TFT LCD
Socketpentru casti de 2 x 1/4"
Socket pentru casti de 2 x 3,5 mm
1 x slot USB 2.0
1 x USB 2.0 5V slot de alimentare (pentru incarcare)
Bara pentru iluminare tastatura

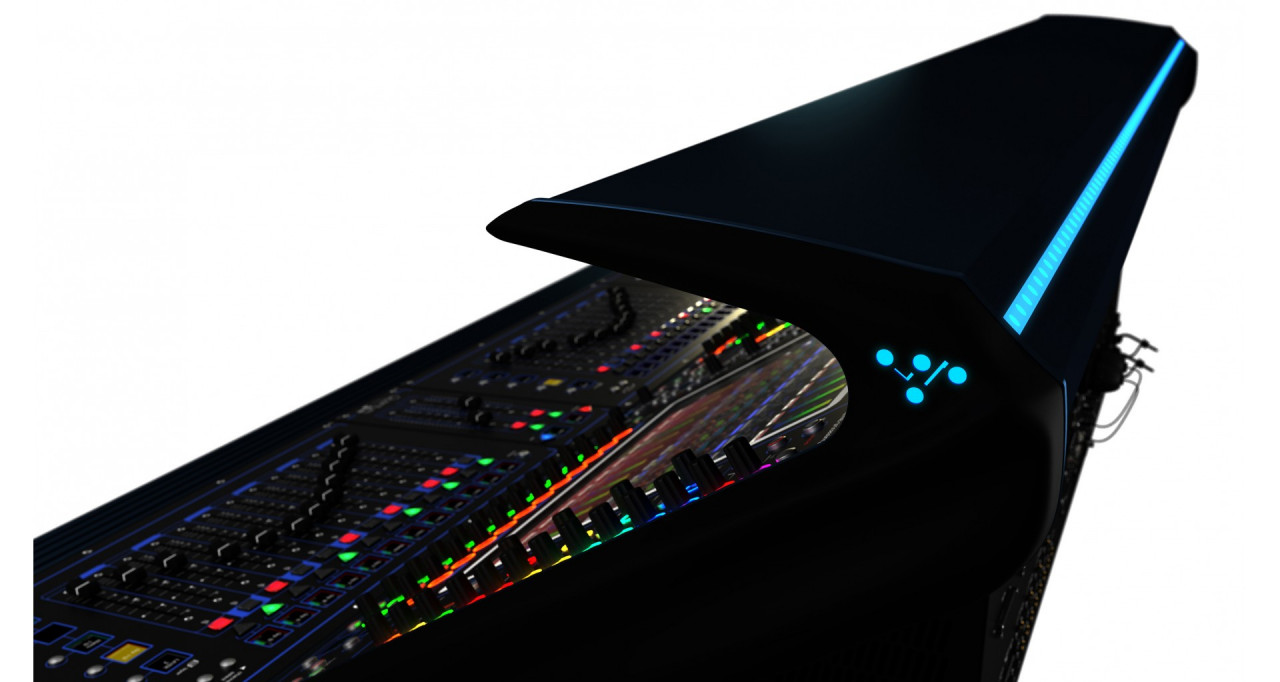

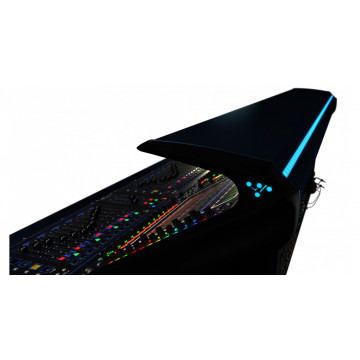

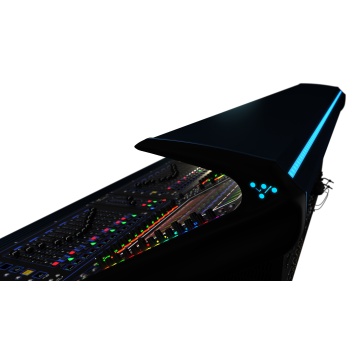

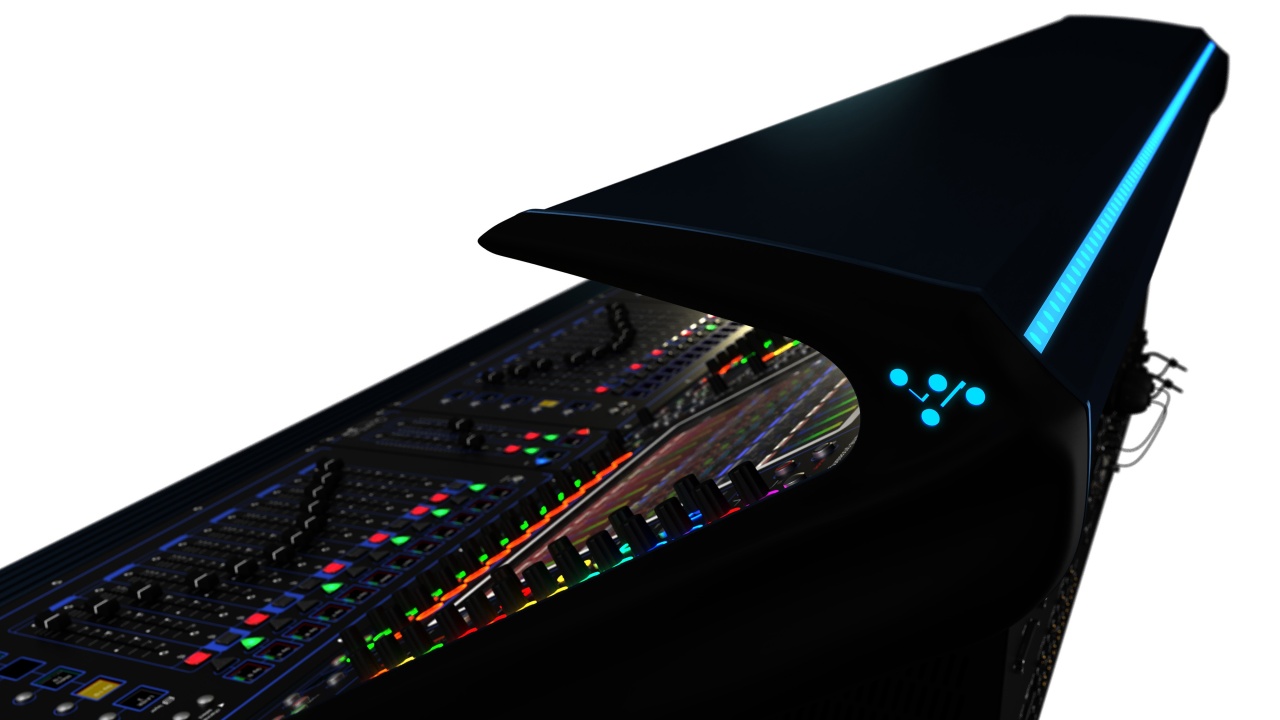

Quantum Hood
Bara de iluminare integrata
Floating Quantum Chassis

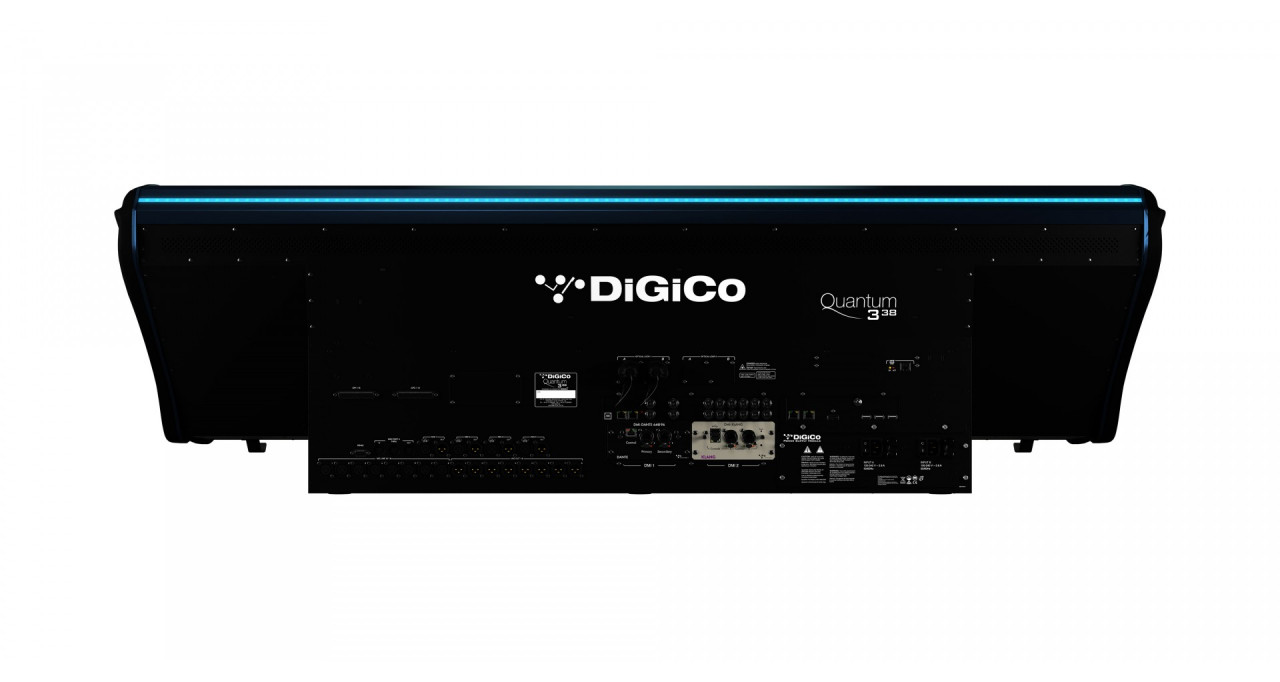

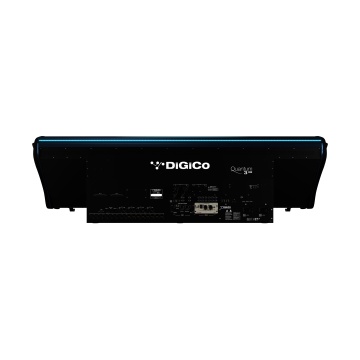

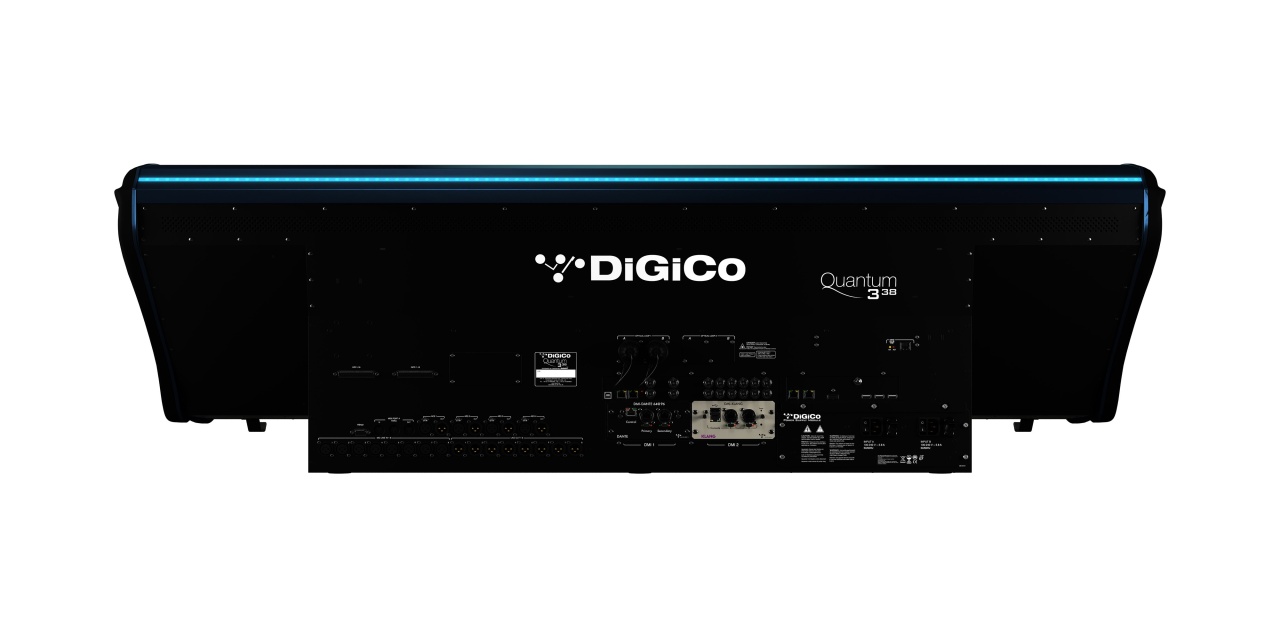

In spate:

2 x Redundant PSUs
8 x XLR Mic/Line Inputs (32-Bit Stadius ADCs)
8 x XLR Line Outputs (32-Bit Stadius DACs)
4 x XLR AES/EBU Inputs (8 x channels)
4 x XLR AES/EBU Outputs (8 x channels)
6 x MADI BNC I/O @ 48k, 3 interfaces at 96k
2 x MultiMode Optocore Interface (Optional)
1 x Waves port (Optional)
2 x DMI Slots (up to 64 I/O per slot)
1 x UB MADI (USB Type B Audio I/O interface for recording
and playback of up to 48 channels)
4 x Ethernet ports (switched together)
3 x USB 2.0 slots
1 x GPI DSub37 (16 inputs)
1 x GPO DSub37 (16 outputs)
1 x MIDI In/Thru/Out (5 pin DIN)
1 x Word Clock I/O BNC
1 x DisplayPort Output
1 x AES/EBU Sync I/O
1 x RS422 port (9 pin)
1 x Quantum Lighting Bar

Optiuni:

Single or Dual Loop Optocore (HMA, OpticalCon or ST)
Upgrade to SingleMode Optocore
Waves Soundgrid Interface
Flightcase
Compatible DMI Cards: ADC / AES / AMM / Aviom / DAC /
Dante / Dante 64@96 / Hydra 2 / KLANG / MADI B / MADI C/ ME / Mic / Waves

Procesare semnal:

128 Input Channels (Mono)
Main & Alternative input
Analogue Gain
Phase Inversion Control
Gain Tracking
Digital Trim (-40dB to +40dB)
Variable Delay (0ms to 1.3s)
DiGiTube
HPF/LPF (-24dB/Oct)
4 Band Parametric EQ / Dynamic EQ
DYN 1: Compressor, Multiband Compressor, Desser
DYN 2: Gate, Duck, External Input Compressor
EQ/Dyn Order Control
2 Insert Points per Channel
Channel Mute & Hard Mute
Channel Direct Outputs

64 Aux/Sub-Group Busses

Phase Inversion Control
Digital Trim (-40dB to +40dB)
Variable Delay (0ms to 1.3s)
DiGiTube
Merge Input
Tone Generator
HPF/LPF (-24dB/Oct)
8 Band EQ: 4 Band Parametric EQ and 4 Band
Parametric or Dynamic EQ
DYN 1: Compressor, Multiband Compressor, Desser
DYN 2: Gate, Duck, External Input Compressor • EQ/Dyn Order Control • 2 Insert Points per Channel
Channel Mute & Hard Mute
1 LR/LCR/LCRS/5.1 Master Buss (with full processing)
24 input x 24 output Full Processing Matrix
24 Control Groups (CGs)
2 Solo Busses
24 x 32-band GEQs
24 x Internal Stereo FX Processors
Delays
Audio Enhancer
Choruses
Pitch Shifters • Reverbs
8 x Internal Spice Rack Slots
6 band Dynamic Multiband Compressor/Expander

36 x Mustard Processing Strips

Tube
Tube Emulation
HPF/LPF (-24dB/Oct)
4 Band EQ: 2 Band Parametric EQ and 2 Band
Parametric EQ or All Pass Filters • DYN 1: Classic RMS/Peak Compressor, Vintage VCA
Compressor, Optical Compressor, FET Limiter • DYN 2: Gate, Ducker

64 x Nodal Processing
