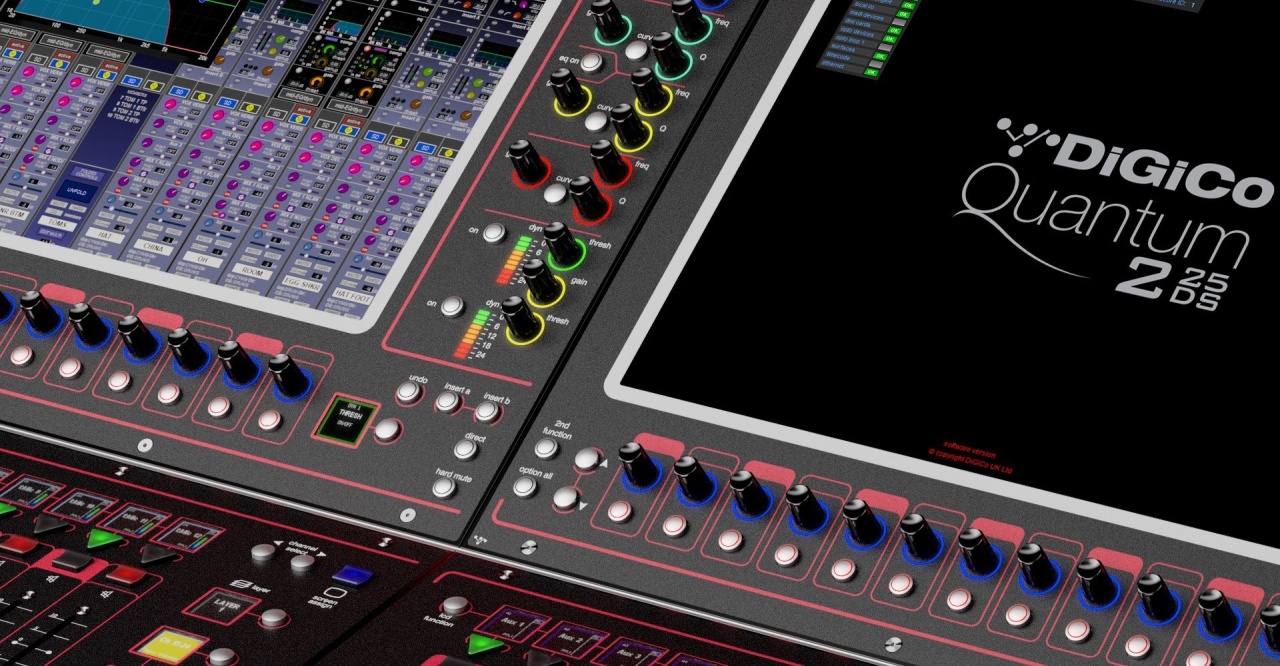

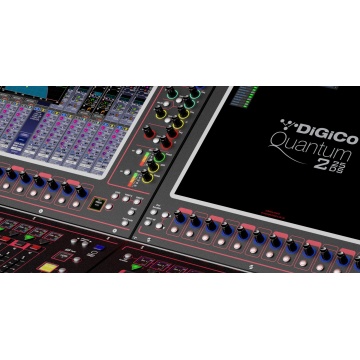

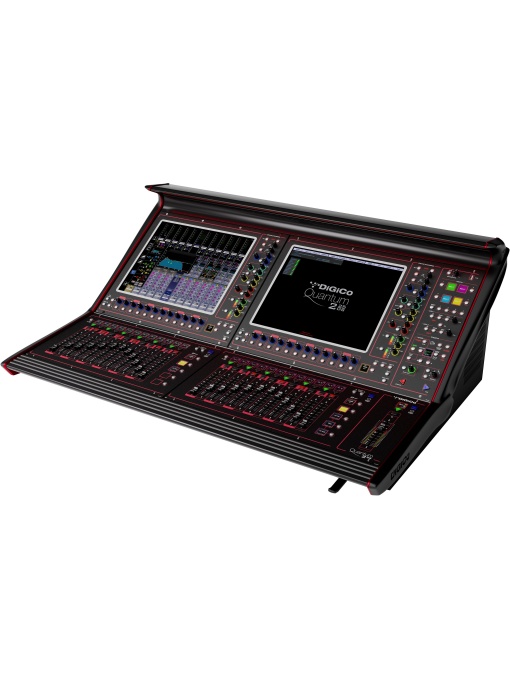

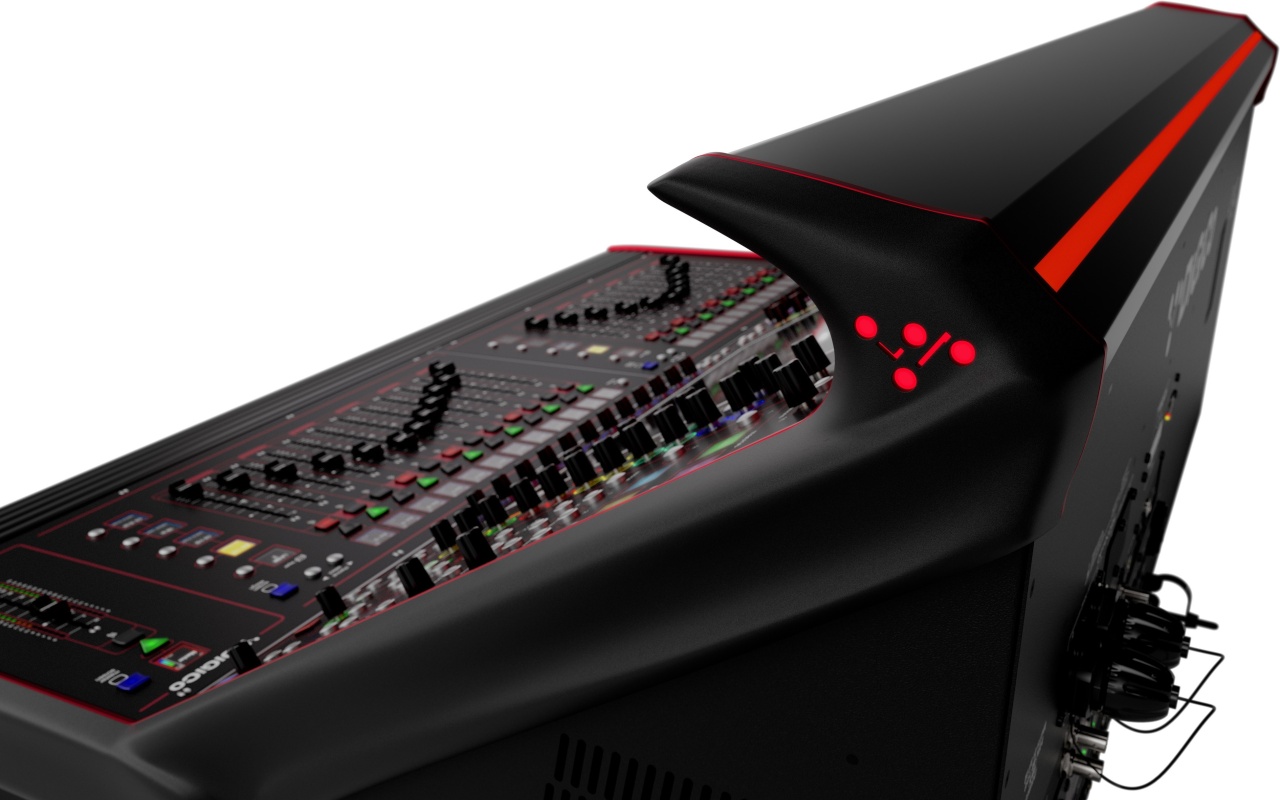

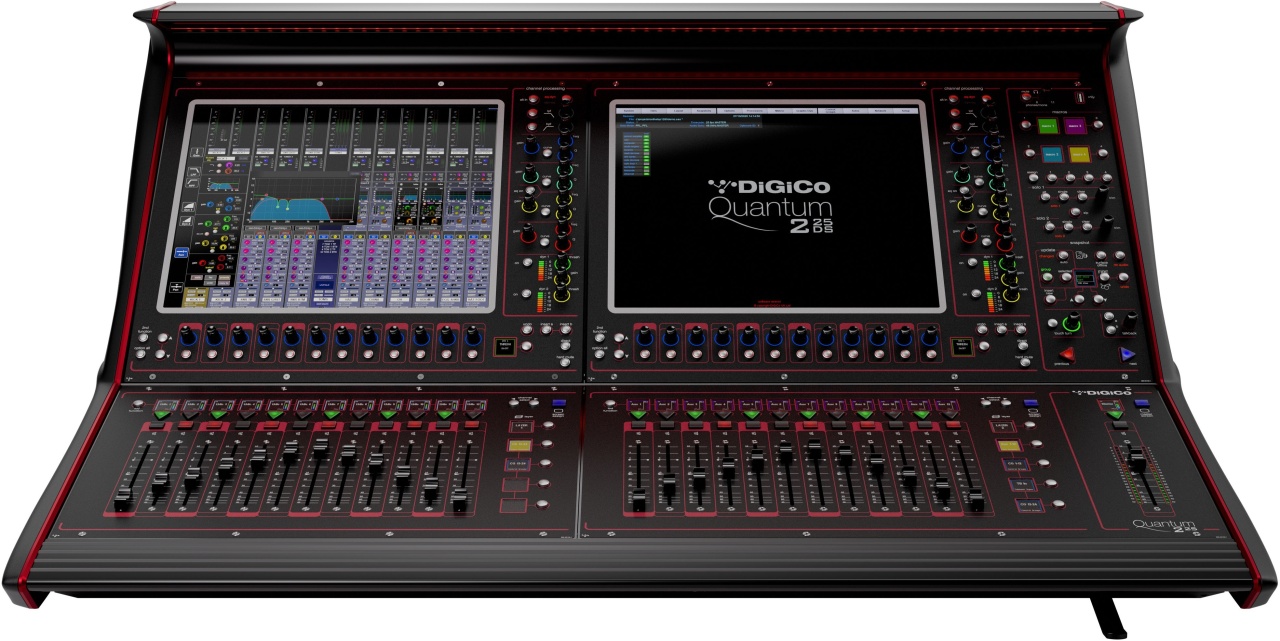

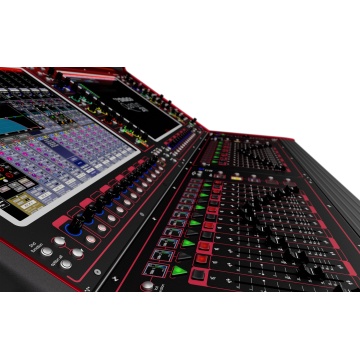

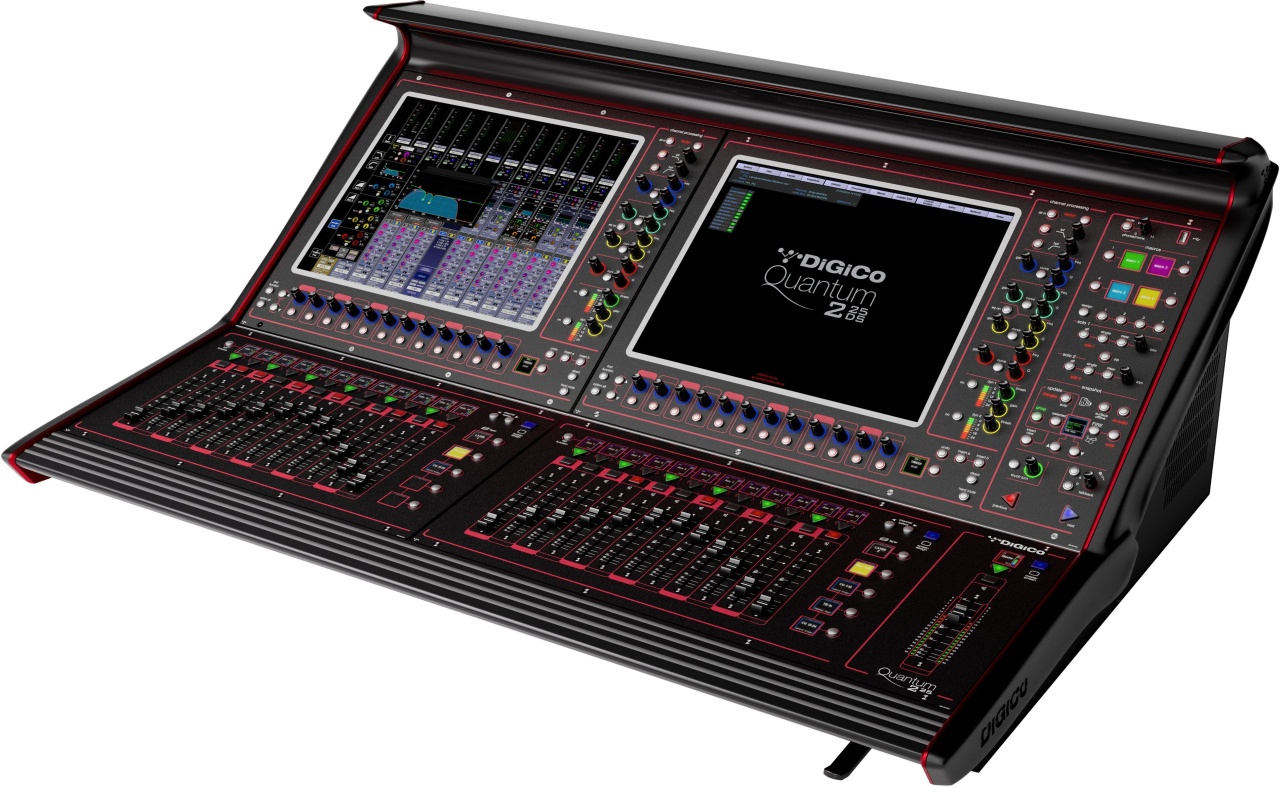

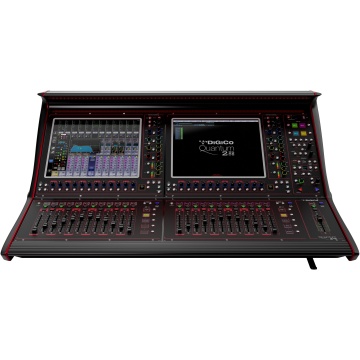

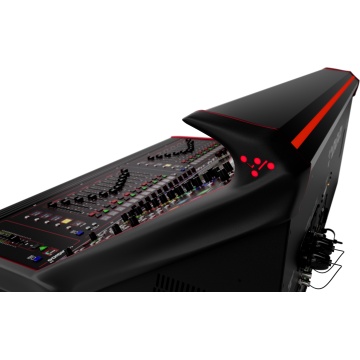

DiGiCo Quantum 225DS - Consola digitala de mixaj audio

Descriere

DiGiCo Quantum 225DS este o consola digitala de mixaj compacta, echipata cu 25 fadere motorizate de 100 mm touch-sensitive, si doua display-uri cu touchscreen LCD de 17 inch. Ofera pana la 72 canale de intrare, 36 bus-uri cu procesare completa si o matrice 12x12. Include 16 EQ-uri grafice pe 32 de benzi, pana la 12 efecte stereo interne si procesare Mustard, Spice Rack si Nodal. Dispune de I/O local cu 8 intrari si 8 iesiri analogice, 2 AES I/O, interfete MADI redundante si optiuni pentru Optocore, UBMADI si sloturi DMI pentru placi de expansiune. Mixerul beneficiaza astfel de o conectivitate extinsa si o procesare transparenta, cu o rata de esantionare de 48/96 kHz.

Caracteristici generale:

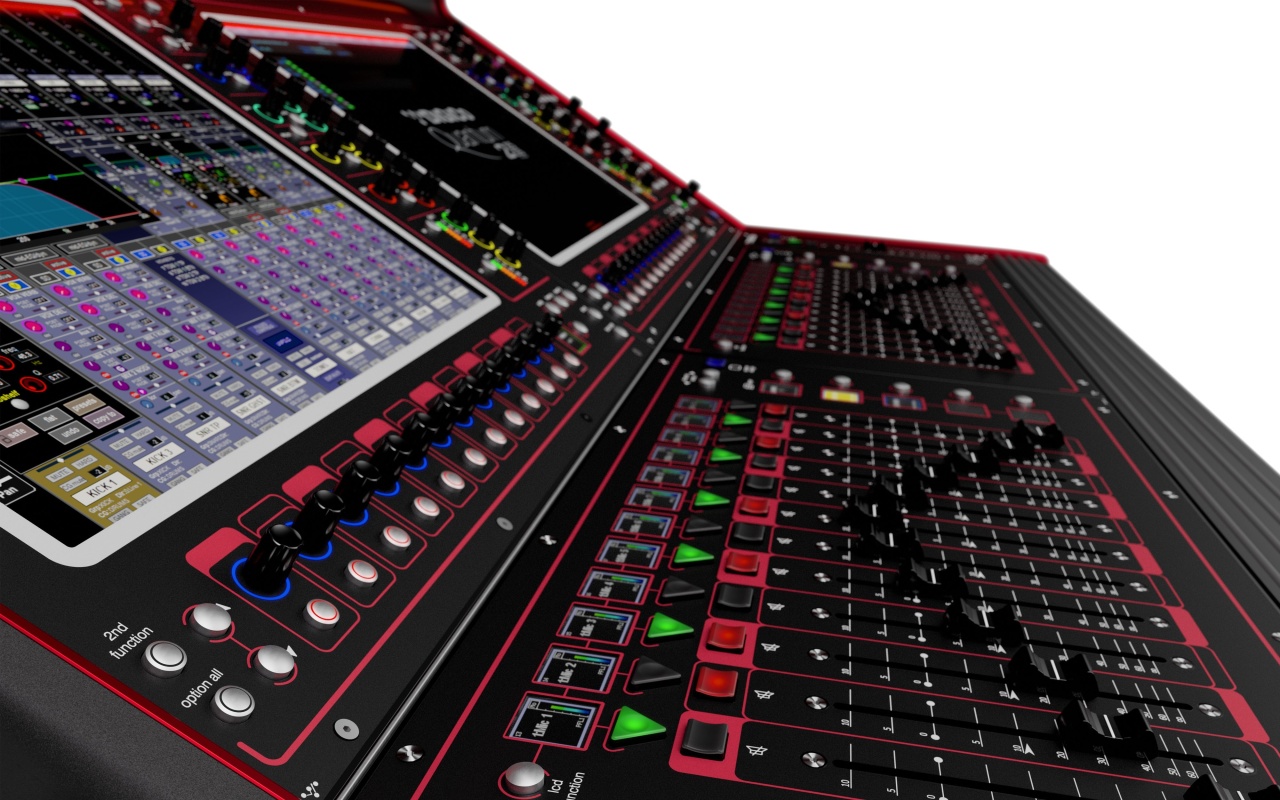

Fadere: 25 x 100 mm, touch-sensitive, motorizate
Display-uri: 2 x 17 inch LCD, luminozitate ridicata, rezolutie mare, touchscreen
Canale de intrare: 72
Bus-uri: pana la 36 Aux / Group cu procesare completa Mono / Stereo / LCR plus Master
Matrice: pana la 12 intrari / 12 iesiri cu procesare completa
Grupuri de control: pana la 12, selectabile tip VCA, moving fader, mute group
EQ grafic: 16 x 32 benzi, Gain +/- 12 dB
FX interne: pana la 12 efecte stereo cu reverb floating point si delay / chorus / pitch / enhancer
Spice Rack: 6 sloturi mono / 3 stereo
Mustard Proc: 24 canale de procesare
Nodal Proc: 32 procesoare nodale

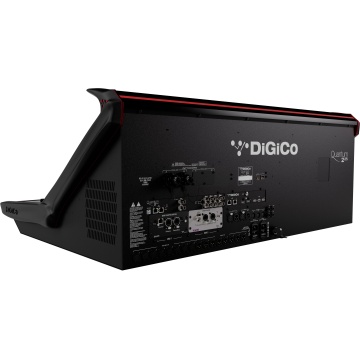

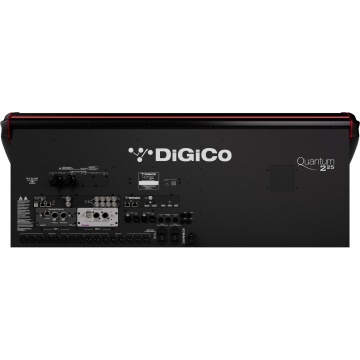

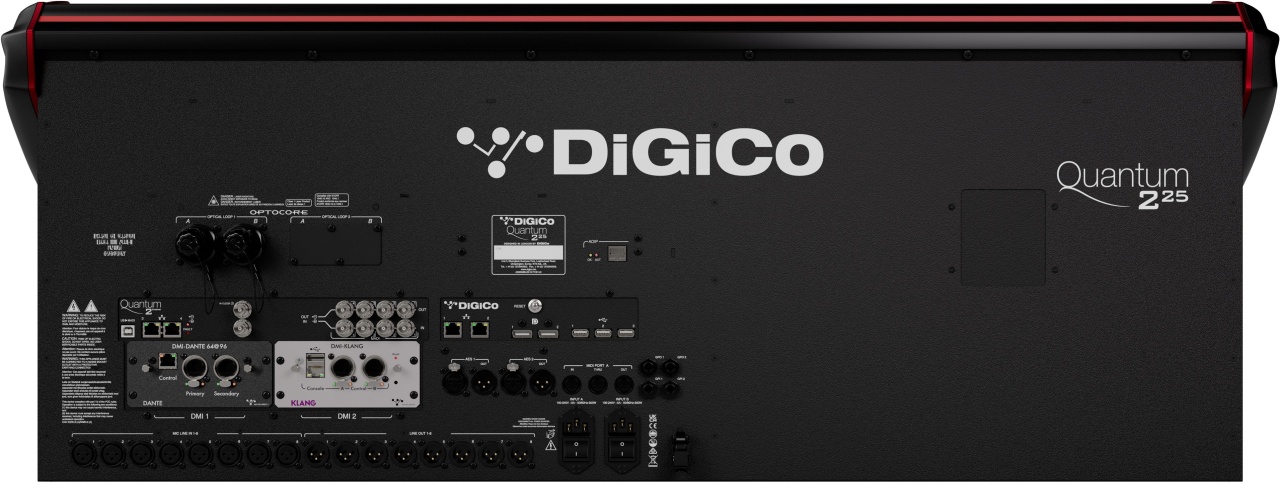

I/O local: 8 x mic/linie I/O, 2 x AES I/O (4 canale)
Interfata MADI: 4 interfete la 48 kHz, 2 interfete la 96 kHz, conexiune BNC
Interfata Optocore: optional, bucla dubla disponibila
Rate de esantionare: 48 kHz / 96 kHz
GPI/GPO: 2
DMI: 2 x interfata multicanal DiGiCo
Waves: optional
Sincronizare externa: Wordclock, MADI, Optocore
Dimensiuni: 1124 mm (l) x 801 mm (a) x 436 mm (h)
Greutate: 43 kg
Alimentare: 100V-240V, 50-60 Hz, 255 VA

Specificatii tehnice:

Specificatii audio:

Sample Rate: 48 kHz sau 96 kHz
Delay procesare: 2 ms la 48 kHz, 1 ms la 96 kHz
Procesare interna: pana la 40-bit, floating point
A>D & D>A: convertor 24-bit
Raspuns in frecventa: (Mic In la Line Out): +/-0.25 dB (20 Hz - 20 kHz)
THD+N (Mic In la AES Out): <0.003% (-10 dBFS out, 0 dB gain, 22 Hz-20 kHz)
THD+N (AES In la Line Out): <0.003% (+16 dBu out, 22 Hz-20 kHz)
Separare canale: (Mic In la Line Out): >100 dB la 10 kHz
Zgomot rezidual de iesire: <-94 dBu (22 Hz-20 kHz, A-weighted)
Zgomot echivalent de intrare (EIN): <-127 dBu (22 Hz-20 kHz, A-weighted)
Nivel maxim de iesire: +22 dBu
Nivel maxim de intrare: +22 dBu

Specificatii canale de procesare:

Canal de intrare:

Denumire: definit de utilizator / preseturi
Selectare canale: mono / stereo / multi
Routing intrari: intrare principala si alternativa
Gain analog: -20 la +60 dB
Phase: normal / invers
Digital Trim: -40 la +40 dB
Delay: pana la 1.3 s
DiGiTuBe: Drive 0.01 - 50.0, Bias 0 - 6
LPF: 20 - 20 kHz, 24 dB/oct
HPF: 20 - 20 kHz, 24 dB/oct
Insert A: (pre EQ/Dyn) On/Off
Egalizare: EQ 4 benzi parametric sau dinamic, frecventa 20 - 20 kHz, Gain +/-18 dB, Q 0.1-20 parametric / 0.10-0.85 shelf, Dynamic EQ On/Off, Threshold -60 - 0 dB, Attack 500 us - 100 ms, Release 10 ms - 10 s, Ratio 1:1 - 50:1
Sectiune dinamica 1: compresor single sau multibanda (3 benzi), Threshold -60 - 0 dB, Attack 500 us - 100 ms, Release 10 ms - 10 s, Ratio 1:1 - 50:1, Gain 0 la +40 dB, crossover 20 Hz - 20 kHz, De-Esser inclus
Sectiune dinamica 2: Gate / Ducker cu Threshold -60 - 0 dB, Attack 50 us - 100 ms, Hold 2 ms - 2 s, Release 5 ms - 5 s, Range 0 - 90 dB, compresor suplimentar cu parametri similari
Insert B: (post EQ/Dyn) On/Off
Ordine EQ/Dyn: EQ/Dyn sau Dyn/EQ
Mute: Channel Mute / Hard Mute
Solo: Solo Bus 1 / Solo Bus 2 / ambele, Auto Solo
Channel Safe: Input, EQ, Dyn, Aux, Pan, Fade/Mute, Inserts, Buss, Directs, Full Safe
Routing iesire: Buss, Insert A, Insert B, FX, Direct On/Off, Pre-Mute / Pre-Fade / Post-Fade, nivel +/-18 dB
Fader: 100 mm motorizat ∞ la +10 dB

Iesire Aux / Group / Matrix:

Denumire: definit de utilizator / preseturi
Phase: normal / invers
Trim digital: -20 la +60 dB
Delay: pana la 1.3 sec
DiGiTuBe: Drive 0.01 - 50.0, Bias 0 - 6
LPF: 20 - 20 kHz, 24 dB/oct
HPF: 20 - 20 kHz, 24 dB/oct
Insert A: (pre EQ/Dyn) On/Off
Egalizare: EQ 8 benzi, parametric sau dinamic, frecventa 20 - 20 kHz, Gain +/-18 dB, Q 0.1-20 / 0.10-0.85, Dynamic EQ On/Off, Threshold -60 - 0 dB, Attack 500 us - 100 ms, Release 10 ms - 10 s, Ratio 1:1 - 50:1
Sectiune dinamica 1: compresor single sau multibanda (3 benzi) si De-Esser, parametri similari cu input
Sectiune dinamica 2: Gate / Ducker si compresor, Threshold -60 - 0 dB, Attack 50 us - 100 ms, Hold 2 ms - 2 s, Release 5 ms - 5 s, Range 0 - 90 dB
Insert B: (post EQ/Dyn) On/Off
Ordine EQ/Dyn: EQ/Dyn sau Dyn/EQ
Mute: Channel Mute / Hard Mute
Solo: Solo Bus 1 / Solo Bus 2 / ambele, Auto Solo
Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
Routing iesire: Outputs, Insert A, Insert B, FX
Fader: 100 mm motorizat ∞ la +10 dB

Procesare Mustard:

Preamplifier Tubes: Drive variabil, preseturi Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion, Gain de iesire variabil
Preamplifier Amp: Drive variabil, armonici Odd/Even, control Bias si Saturate, Off/Odd/Even pentru a doua etapa, HF Boost variabil, Gain de iesire variabil
Egalizare: EQ 4 benzi parametric, filtre HPF & LPF ordin 4
Sectiune dinamica 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter
Sectiune dinamica 2: Gate / Ducker
