Furman P-1400 AR E - Regulator Voltaj, 6A
Descriere
Furman 6 Amp P-1400 AR E ofera o putere stabila de 230V sau 240V (comutabil) pentru a proteja echipamentul impotriva problemelor cauzate de neregulile de tensiune de retea, acestea putand cauza defectarea echipamentului electronic sensibil sau deteriorarea acestuia.
.P-1400 AR E accepta orice tensiune de intrare de la 188V la 270V si o transforma la o iesire constanta de 230V sau 240V (comutare), +/- 10V. Tensiunile dincolo de acest interval pot fi, de asemenea, transformate in niveluri utilizabile, in functie de variatia intervalului.
Furman P-1400 AR E este un power conditioner full-featured care filtreaza si purifica curentul AC, reducand zgomotul de linie si asigurand performante optime. Nu numai ca echipamentul dvs. va functiona mai bine cu tehnologia de filtrare liniara Furman (LiFT), dar va fi, de asemenea, protejata complet de Series Multi-Stage Protection (SMP) si de oprirea la tensiune extrema (EVS). Acest produs ofera cel mai inalt nivel de protectie a curentului disponibila.
Functii:
- Surge Protection
- Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
- Noise Filtration
- LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
- Voltage Protection
- Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

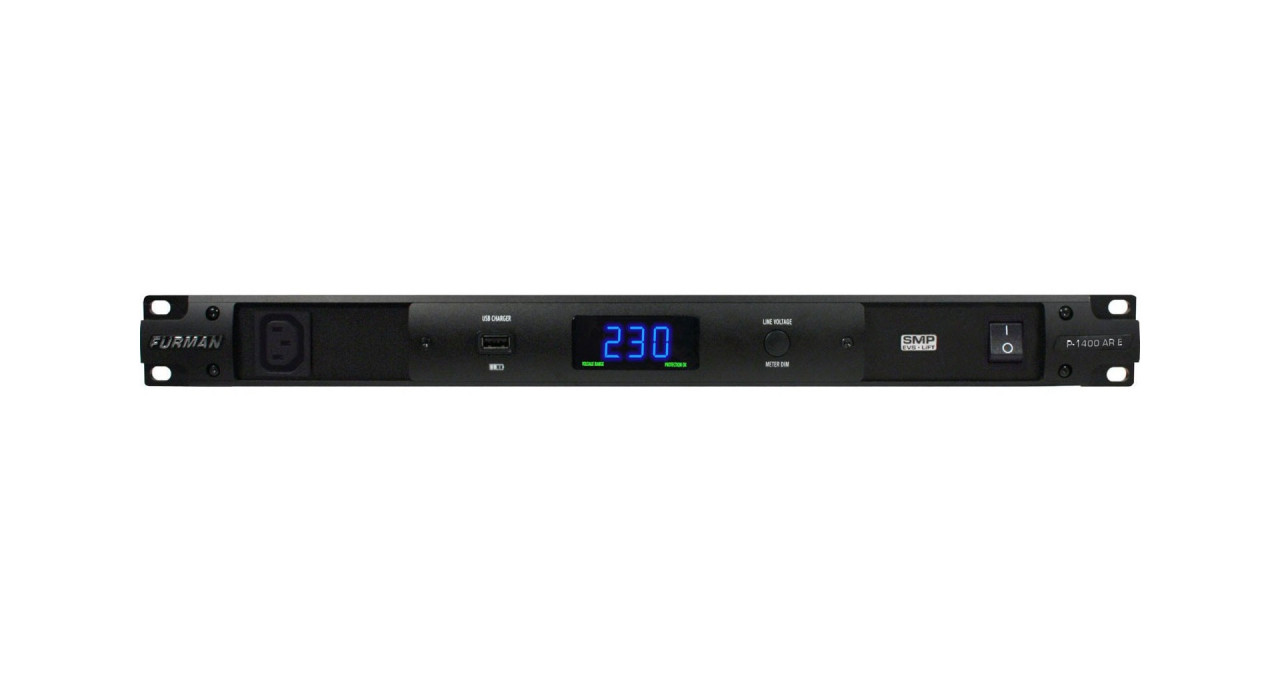

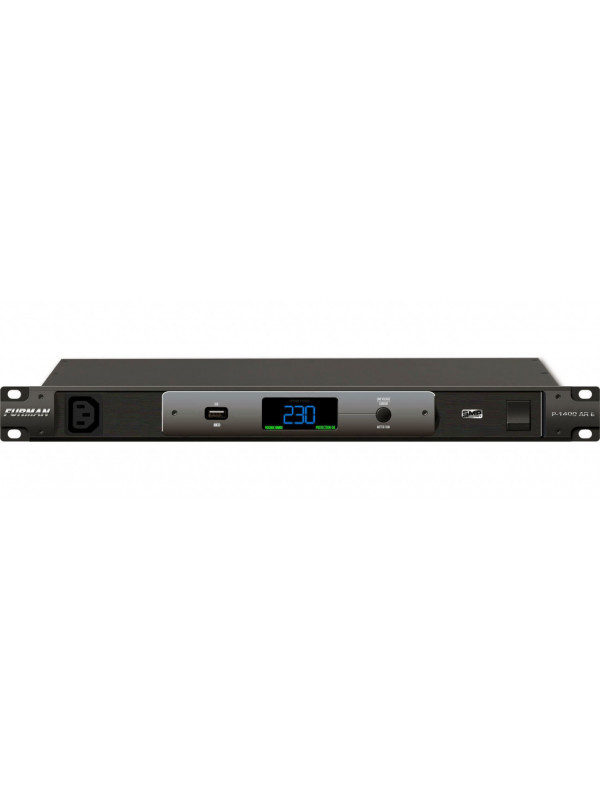

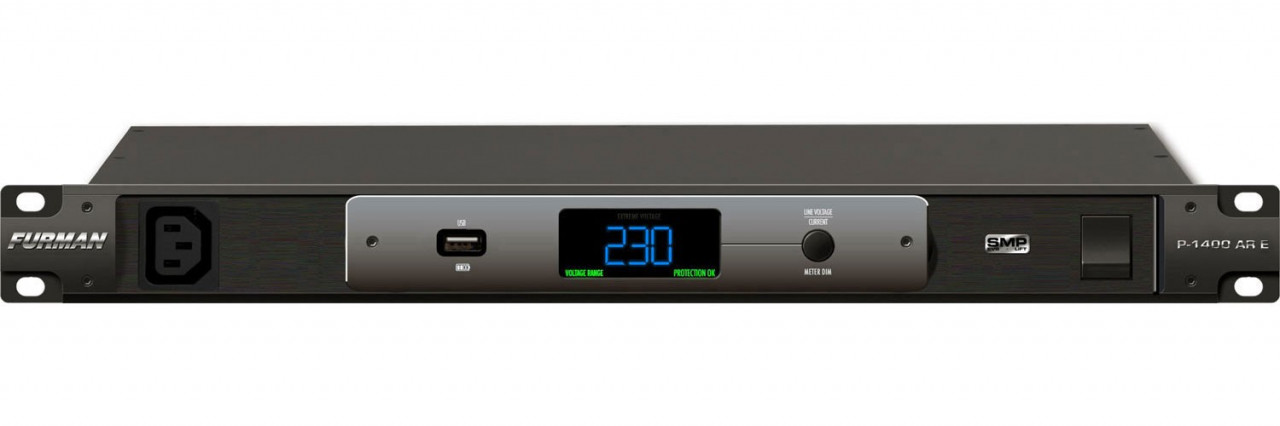

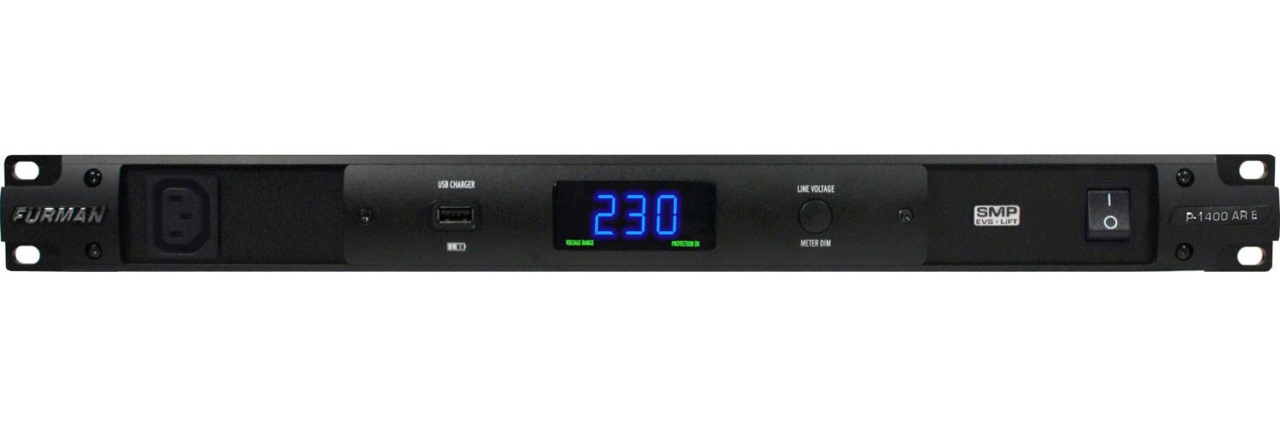

- Diagnostic Lights
- LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
- True RMS Voltage Regulation
- True RMS Voltage Regulation delivers a stable 230/240 volts of AC power to protect equipment from problems caused by AC line voltage irregularities.
- USB Charger
- Front panel USB convenience outlets allows you to charge most media devices or power a USB lamp.
- Voltmeter / Ammeter

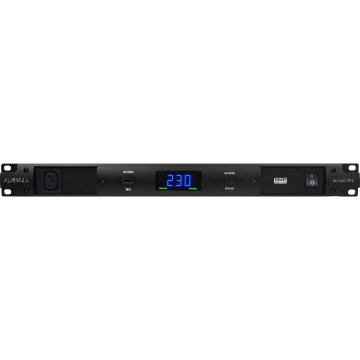

- Large digital voltmeter / ammeter, with discrete dimmer button, displays line votlage and true RMS current draw.
- Isolated Banks
- Isolated outlet banks minimize inter-component interference and noise contamination.
- 6 AMP Rating
- 6 Amp rating featuring a high inrush magnetic circuit breaker for added protection.
- 11 Total Outlets

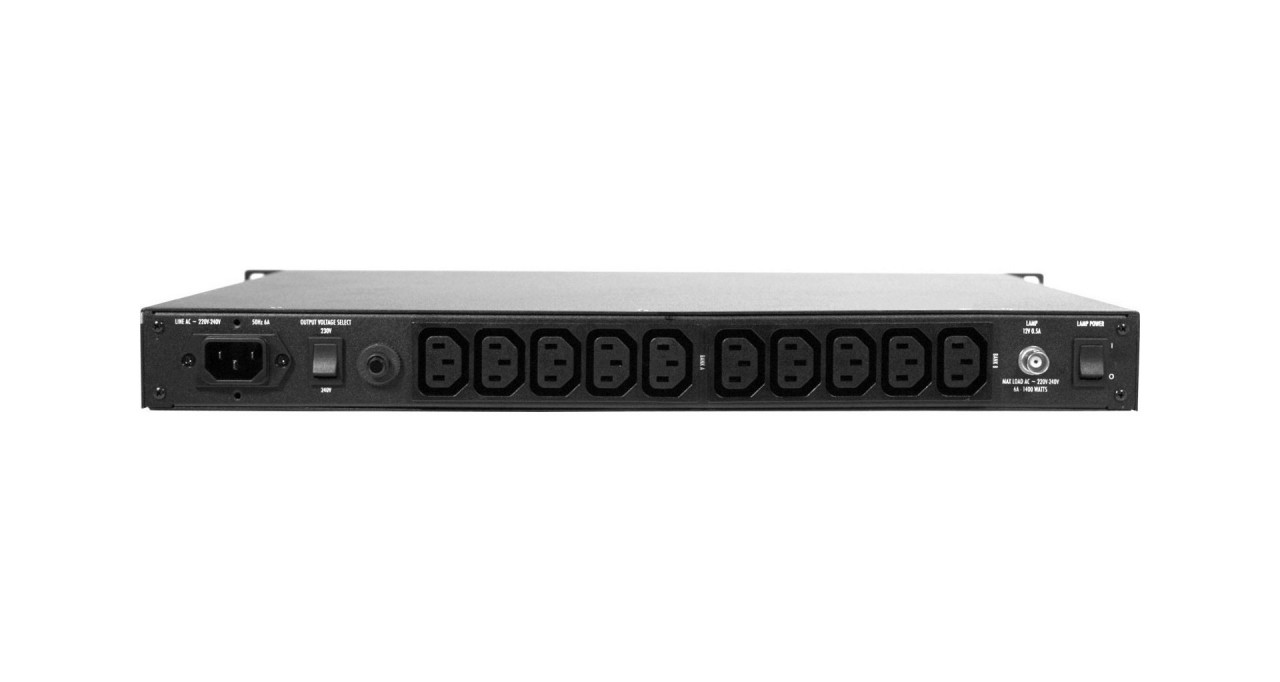

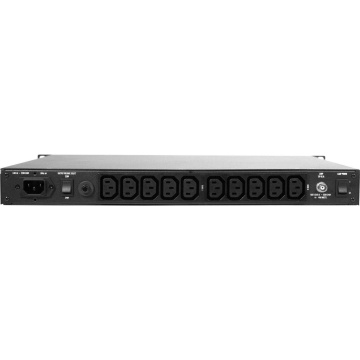

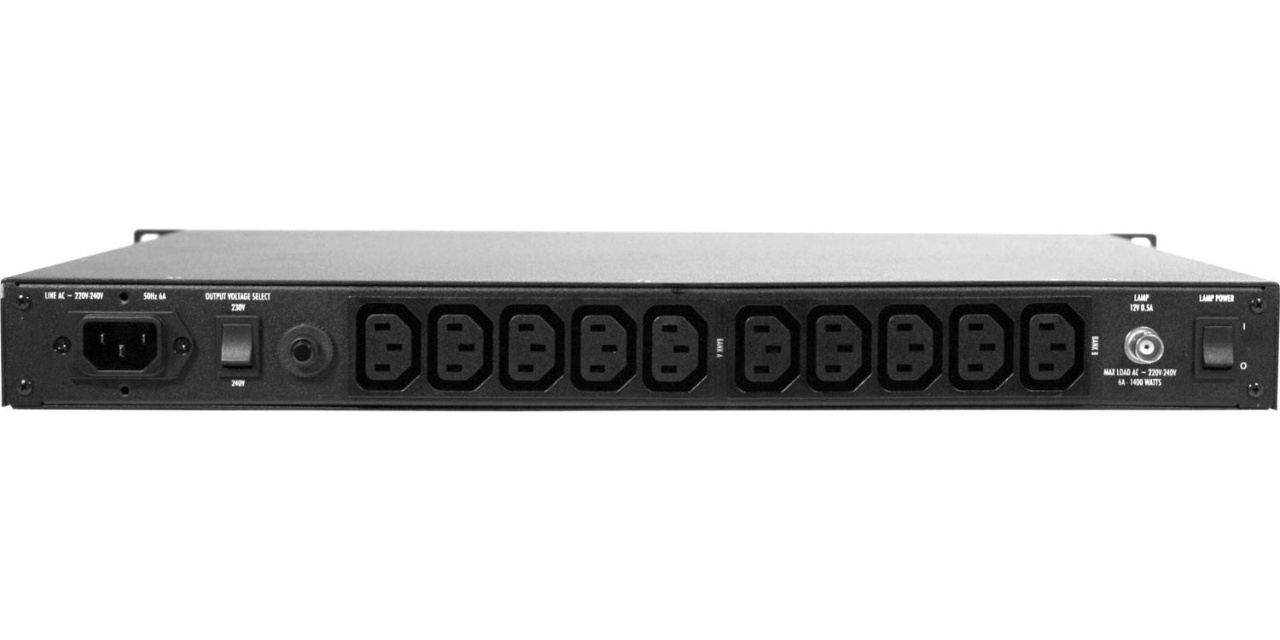

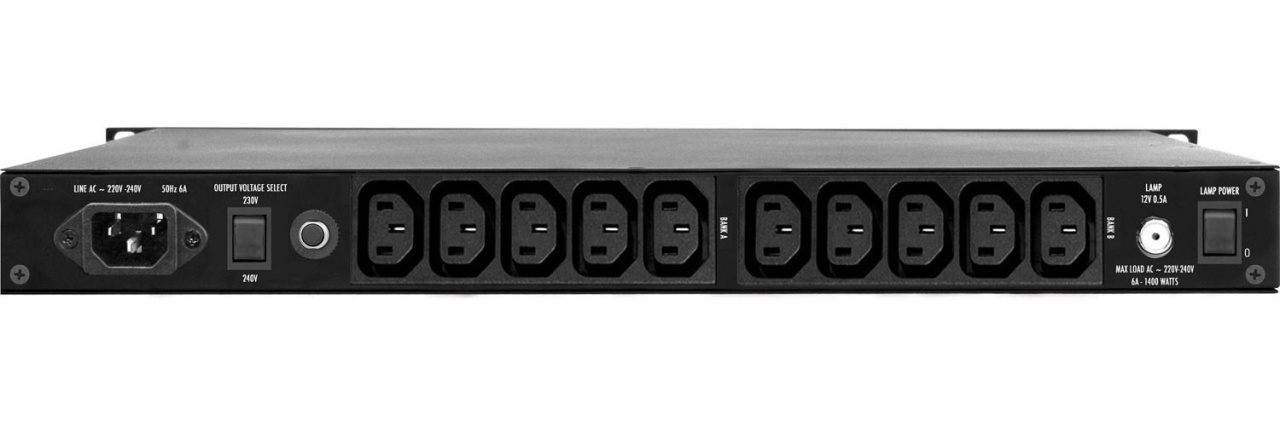

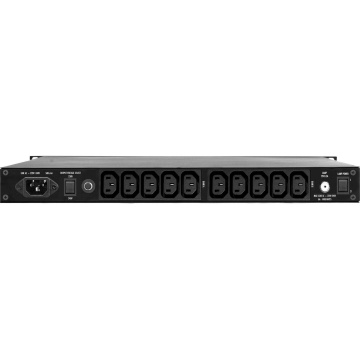

- 11 total outlets (10 rear panel outlets and one front panel convenience outlet).
- BNC Lamp Connector
- Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.
Specificatii:
General
• FamilyPrestige Series 240V
• Line Voltage240 (Volts)
Shipping Info
• Length21.6 (Inches)
• Width19.7 (Inches)
• Height4.9 (Inches)
• Weight24.35 (Lbs)
• Unit of MeasureEach
• UPC654061028154
• Master Pack Qty2
Other Specifications
• MAXIMUM OUTPUT CURRENT:6 amps @ 230 volts (230V output setting - 240V @ 240V output setting)
• LINE CORD:Detachable 2.5 meter, black cord with Schuko plug (standard)
• BNC SOCKET WITH SWITCH FOR REAR RACK LAMP:12VAC 500mA max (lamp not included)
• IN REGULATION RANGE:182 to 262 VAC (230V output setting), 188 to 270 VAC (240V output setting)
• OVER VOLTAGE SHUTDOWN:275 VAC nominal
• SPIKE PROTECTION MODES:Line to neutral, zero ground leakage
• SPIKE CLAMPING VOLTAGE:376 VAC peak @ 3,000 amps
• RESPONSE TIME:1 nanosecond
• MAXIMUM SURGE CURRENT:6,500 AMPS
• NOISE ATTENUATION:10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz
• DIMENSIONS:19" W x 12.0" D x 1.745" H
• WEIGHT:9.5 kg.
• POWER CONSUMPTION:(No load) 5 Watts
